Diagnostic Test

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

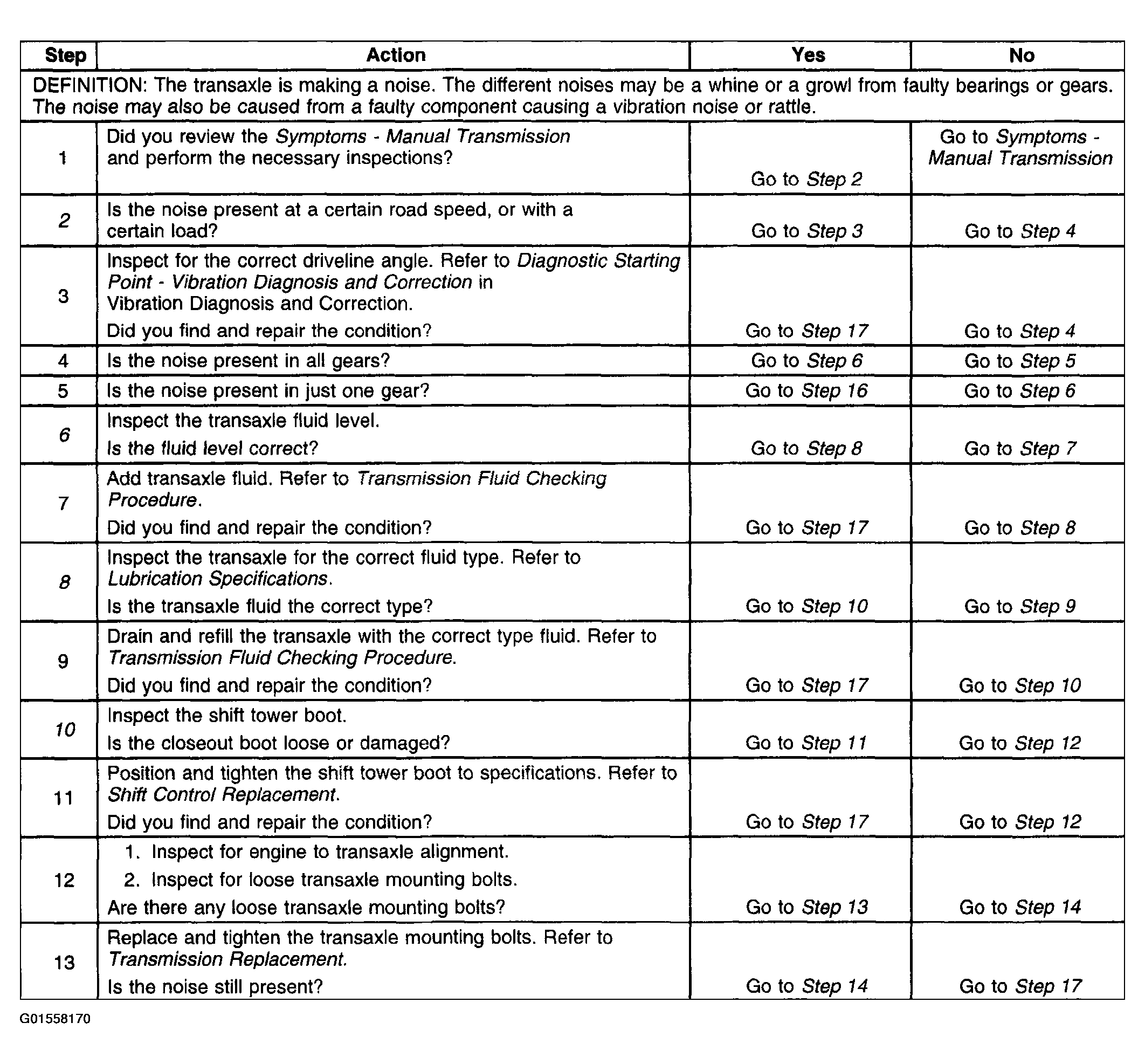

Fig 1: Transmission Noisy Diagnostic Table (Steps 1-13)
G01558170Courtesy of GENERAL MOTORS CORP.

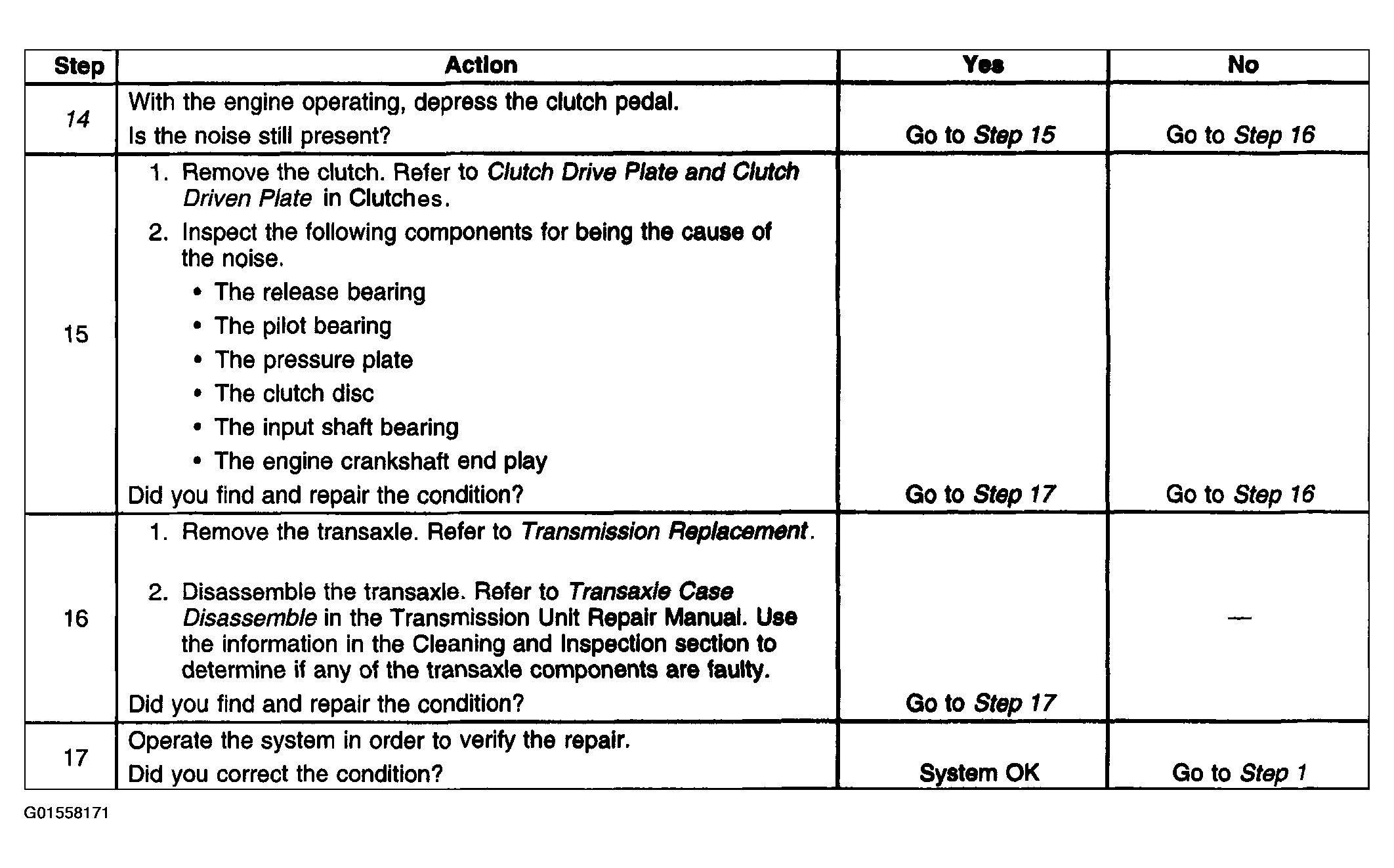

Fig 2: Transmission Noisy Diagnostic Table (Steps 14-17)
G01558171Courtesy of GENERAL MOTORS CORP.
