Transmission System Description and Operation
WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

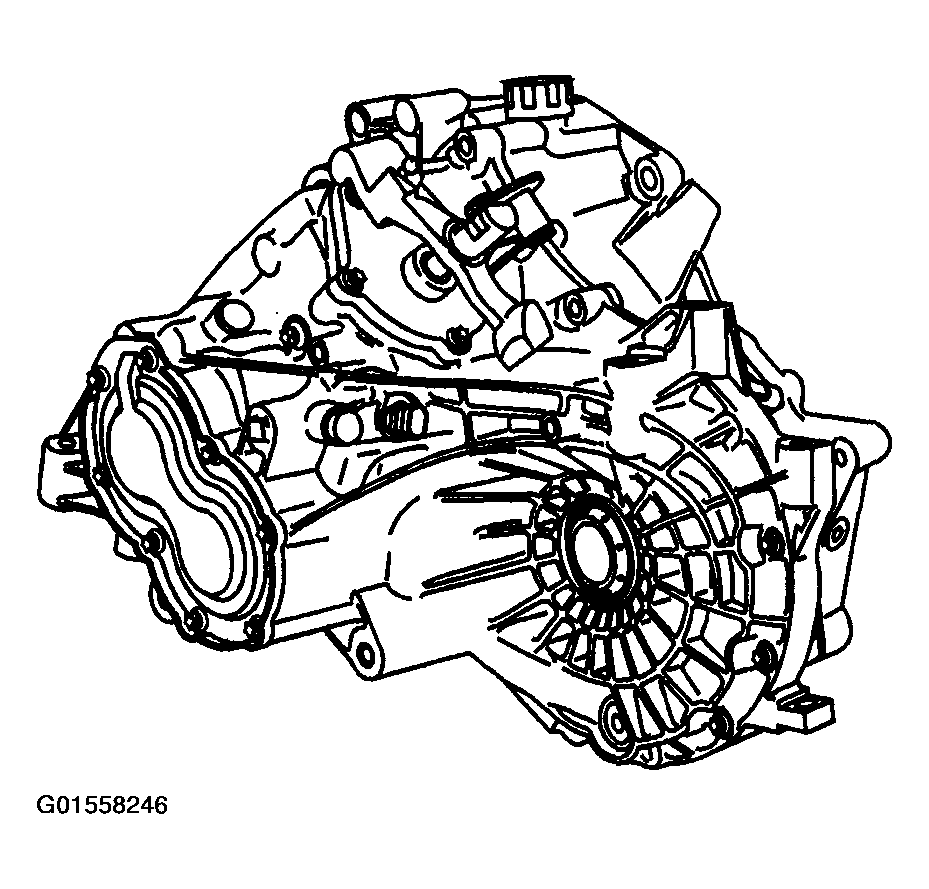

The M86 Getrag is a 5 speed manual transmission assembly.
Important: Use only DEXRON® III Automatic Transmission Lubricant for this manual transmission assembly. Other lubricants or additives may affect the shift performance.
The M86 Getrag manual transmission has the following features:
- First and second gear double coned synchronizer
- Third, fourth, and fifth gear single coned synchronizer
- Reverse synchronized
- Three shaft design consisting of an input shaft, output shaft, and intermediate shaft
- Reverse inhibit feature
- One piece clutch actuator - no bleed screw
- Transmission venting system is part of the fill cap
- First gear ratio is 3.58
- Second gear ratio is 2.02
- Third gear ratio is 1.35
- Fourth gear ratio is 0.98
- Fifth gear ratio is 0.69
- Reverse gear ratio is 3.31
- Final drive ratio is 3.94
- Vehicle speed sensor (VSS)
The manual transmission shift cables must be adjusted for proper shifter performance.
