Manual Transmission Connector End Views

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

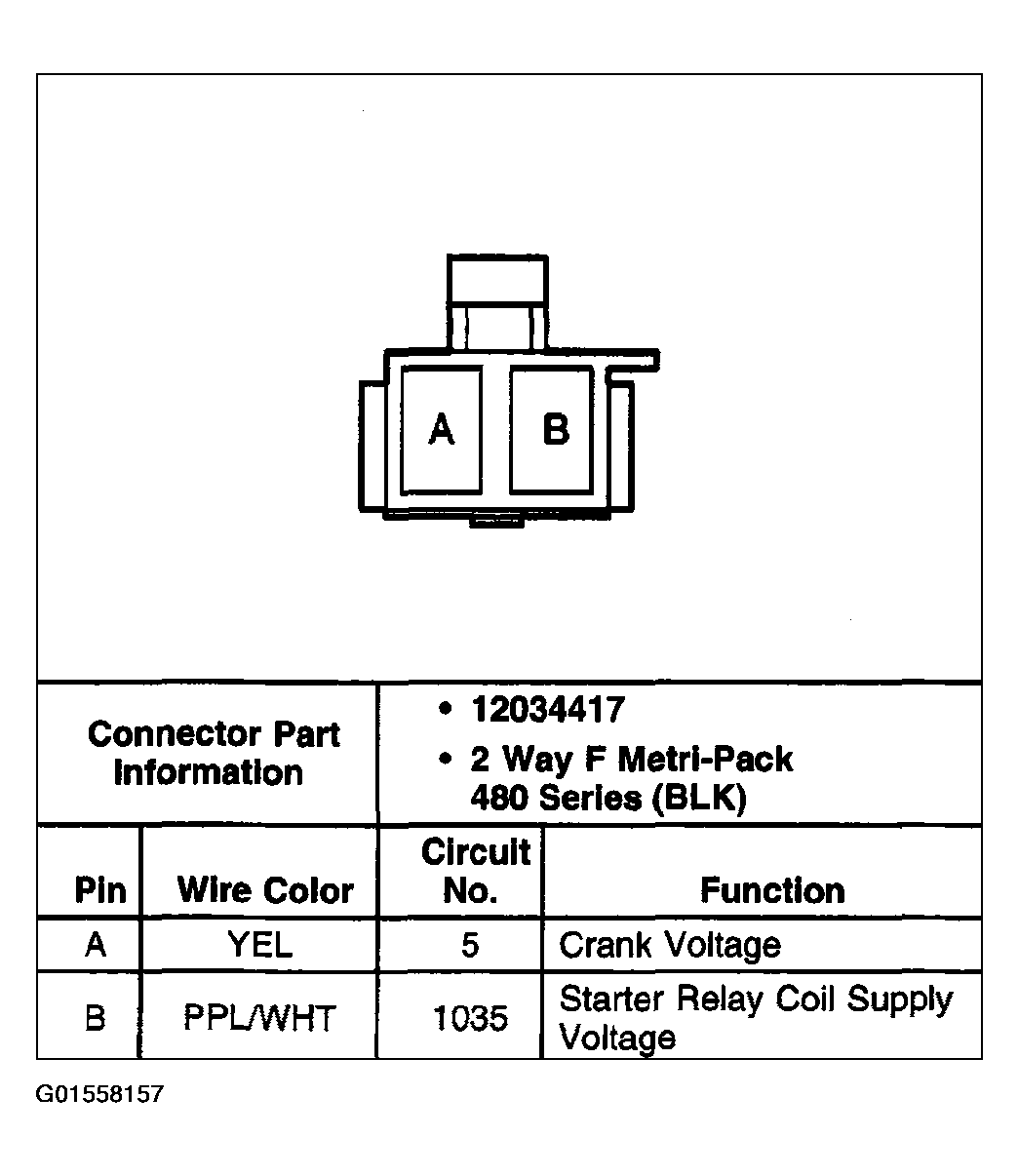

Fig 1: Clutch Pedal Position (CPP) Switch Connector
G01558157Courtesy of GENERAL MOTORS CORP.

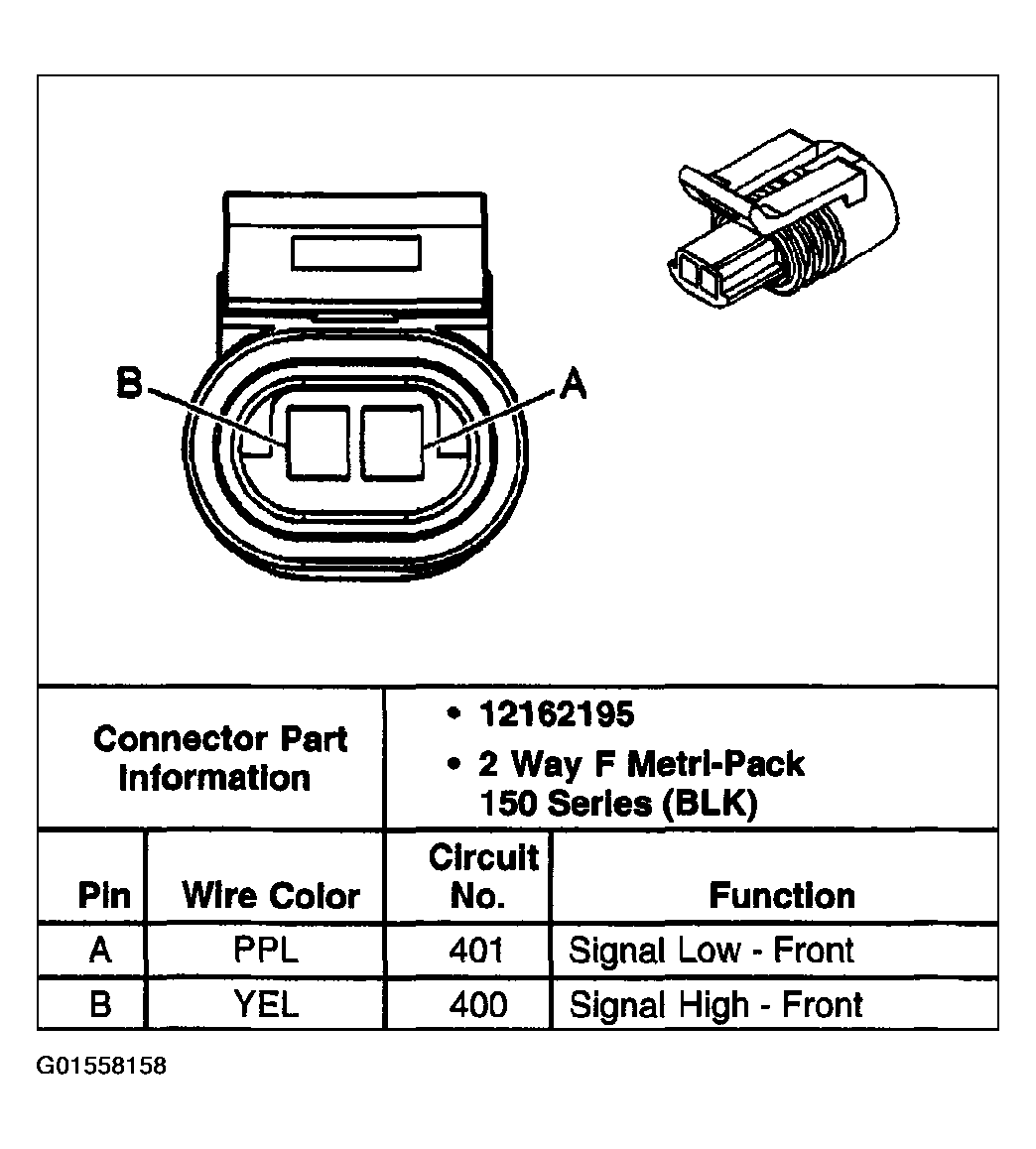

Fig 2: Vehicle Speed Sensor (VSS) Connector
G01558158Courtesy of GENERAL MOTORS CORP.
