Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

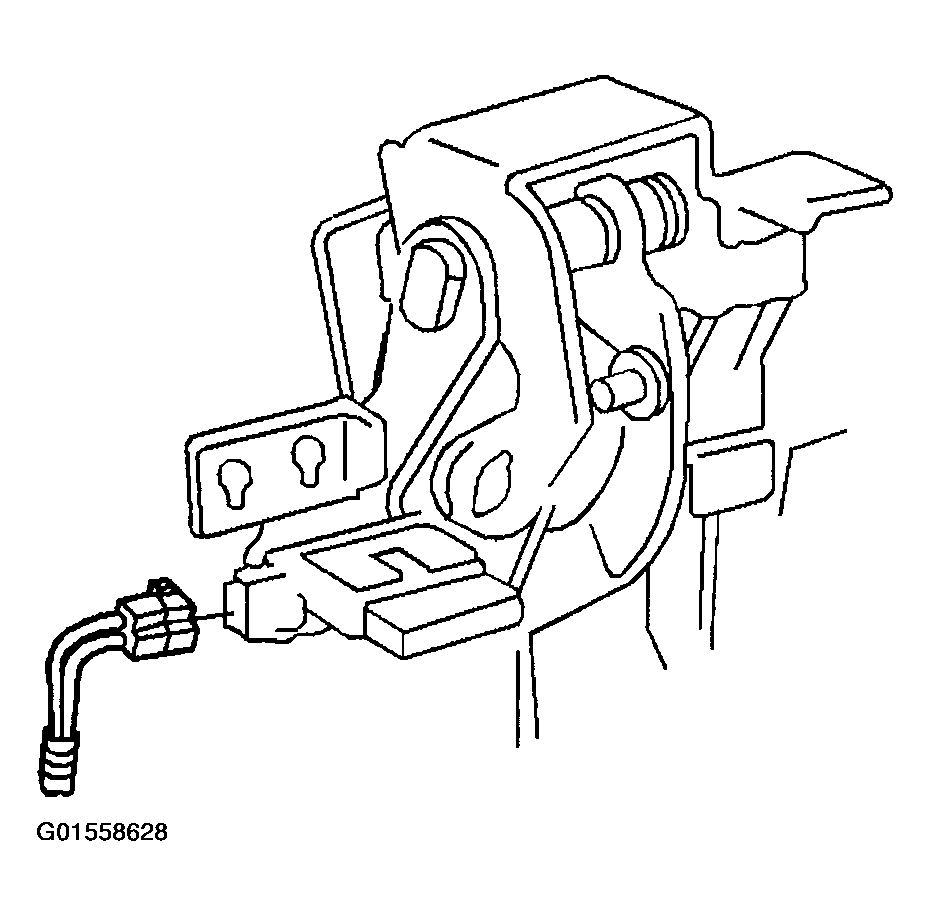

  1. Install the clutch pedal position switch to the brake and accelerator and clutch pedal with the bracket. See Figure.

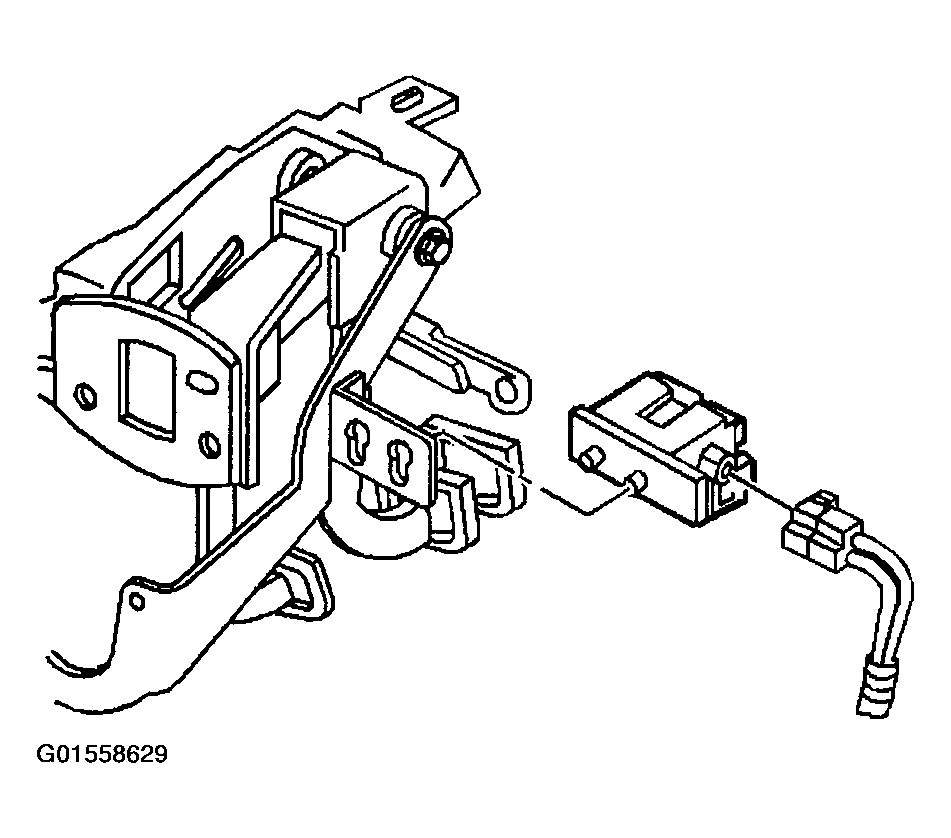

  2. Install the electrical connector to the clutch pedal position switch. See Figure.
