Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the clutch master cylinder pushrod from the clutch pedal.
  2. Remove the master cylinder retaining nuts at the front of the dash.
    Fig 1: Removing/Installing Clutch Master Cylinder At Front Of Dash
    G01558621Courtesy of GENERAL MOTORS CORP.
  3. Remove the remote reservoir.

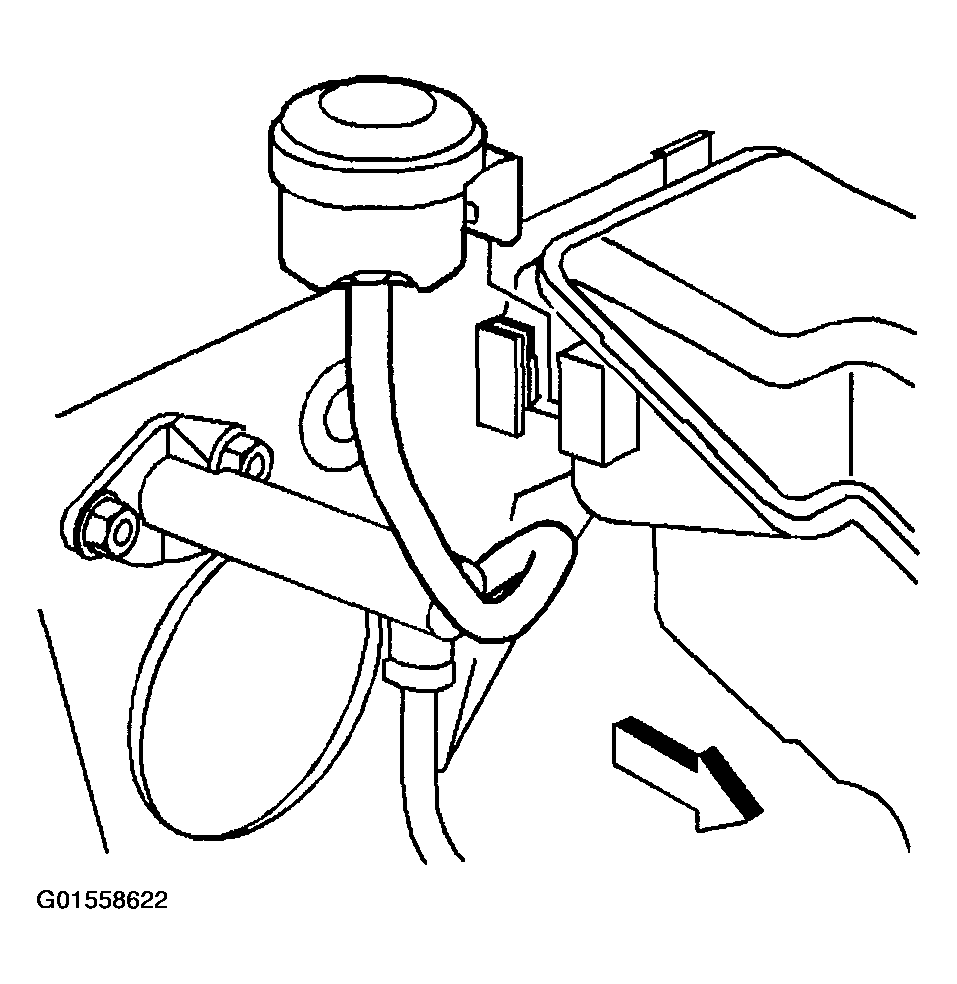

    Fig 2: Removing/Installing Remote Reservoir
    G01558622Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the clutch actuator cylinder line.

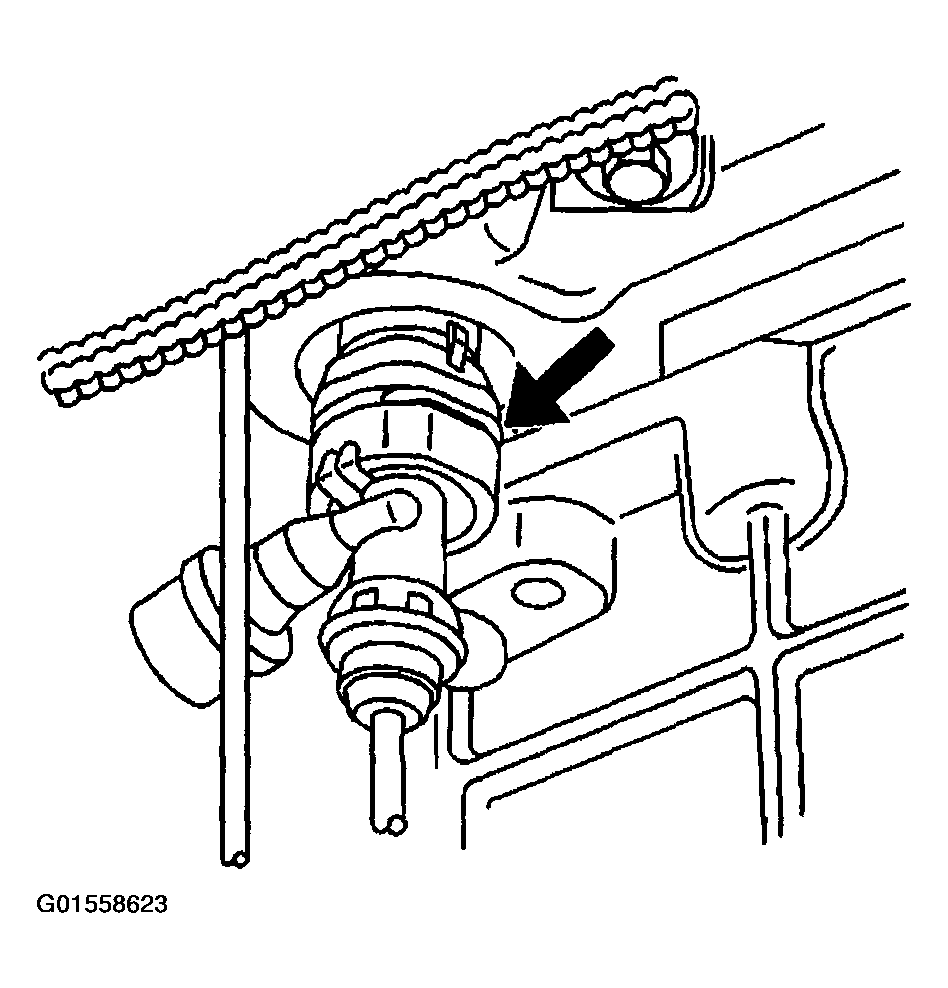

    Fig 3: Identifying Clutch Actuator Cylinder Line
    G01558623Courtesy of GENERAL MOTORS CORP.
  5. Remove the clutch master cylinder assembly from the clutch pedal assembly.

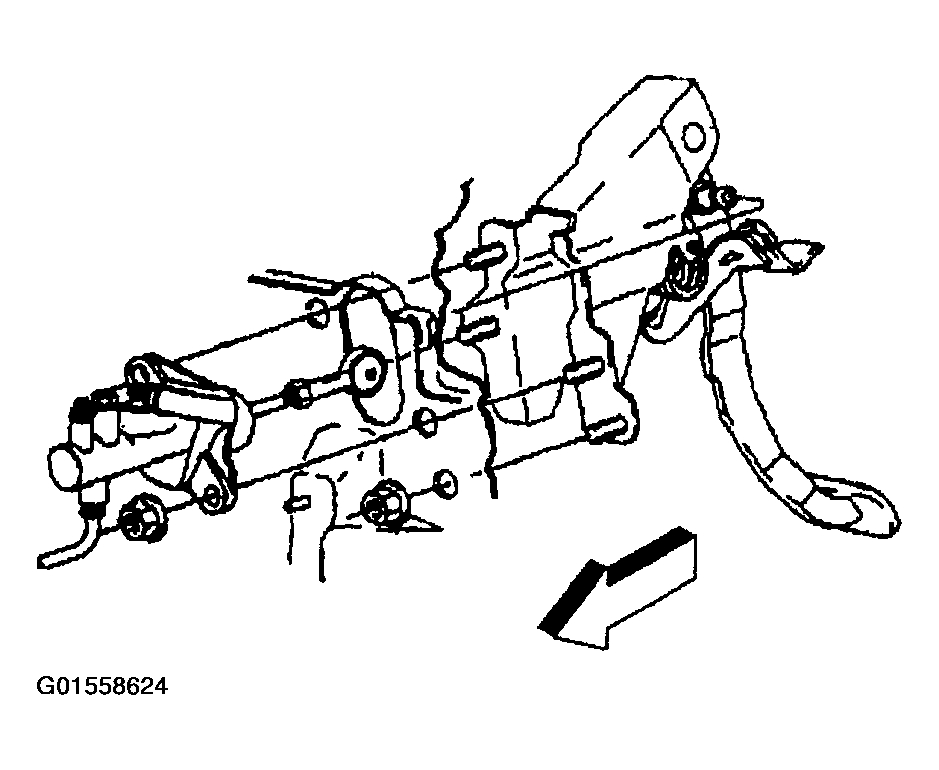

    Fig 4: Removing/Installing Clutch Master Cylinder Assembly From Clutch Pedal Assembly
    G01558624Courtesy of GENERAL MOTORS CORP.
