Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission. Refer to TRANSMISSION REPLACEMENT .
  2. Remove the clutch cover bolts one turn at a time, until spring pressure is relieved.

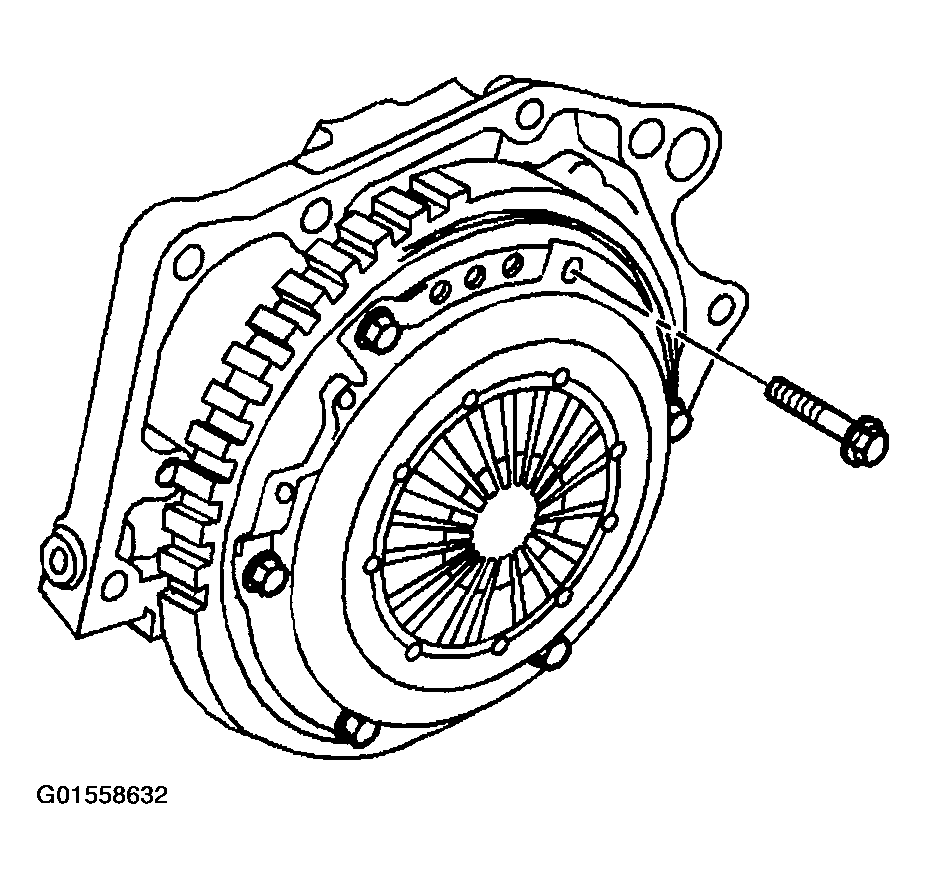

    Fig 1: Removing/Installing Clutch Cover Bolts
    G01558632Courtesy of GENERAL MOTORS CORP.
  3. Remove the clutch cover and the clutch disc.

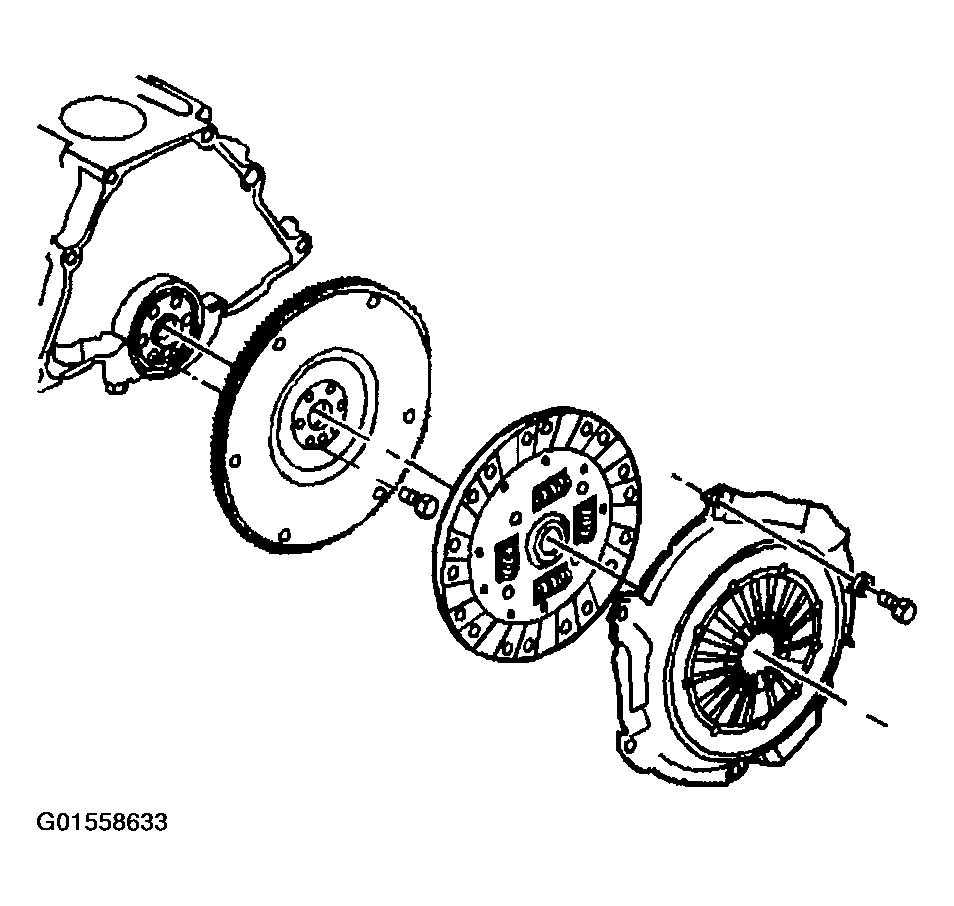

    Fig 2: Removing/Installing Clutch Cover & Clutch Disc
    G01558633Courtesy of GENERAL MOTORS CORP.
