Clutch Grabbing

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

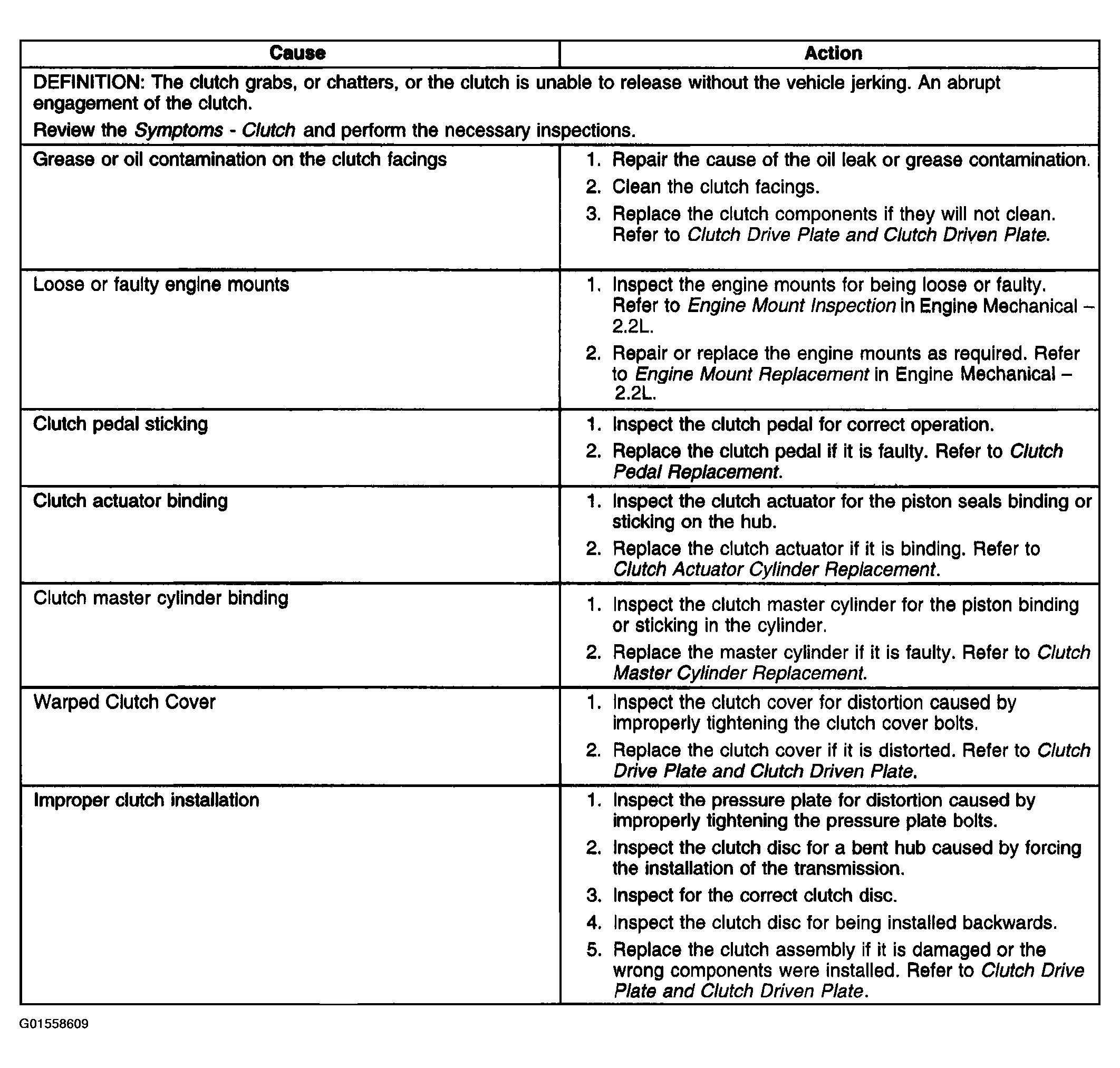

Fig 1: Clutch Grabbing Diagnostic Table (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Clutch Grabbing Diagnostic Table (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

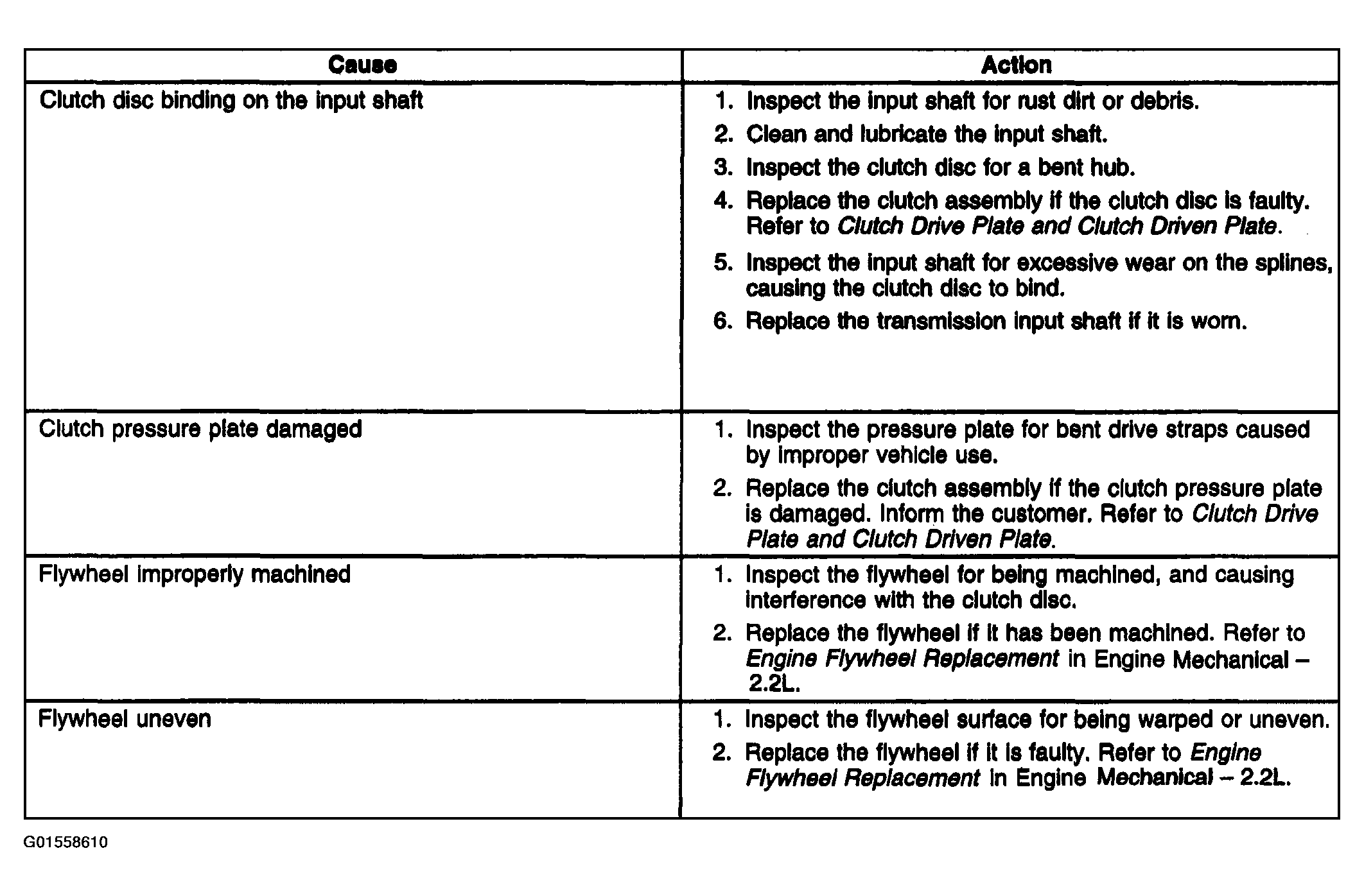

Fig 3: Clutch Grabbing Diagnostic Table (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
