Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

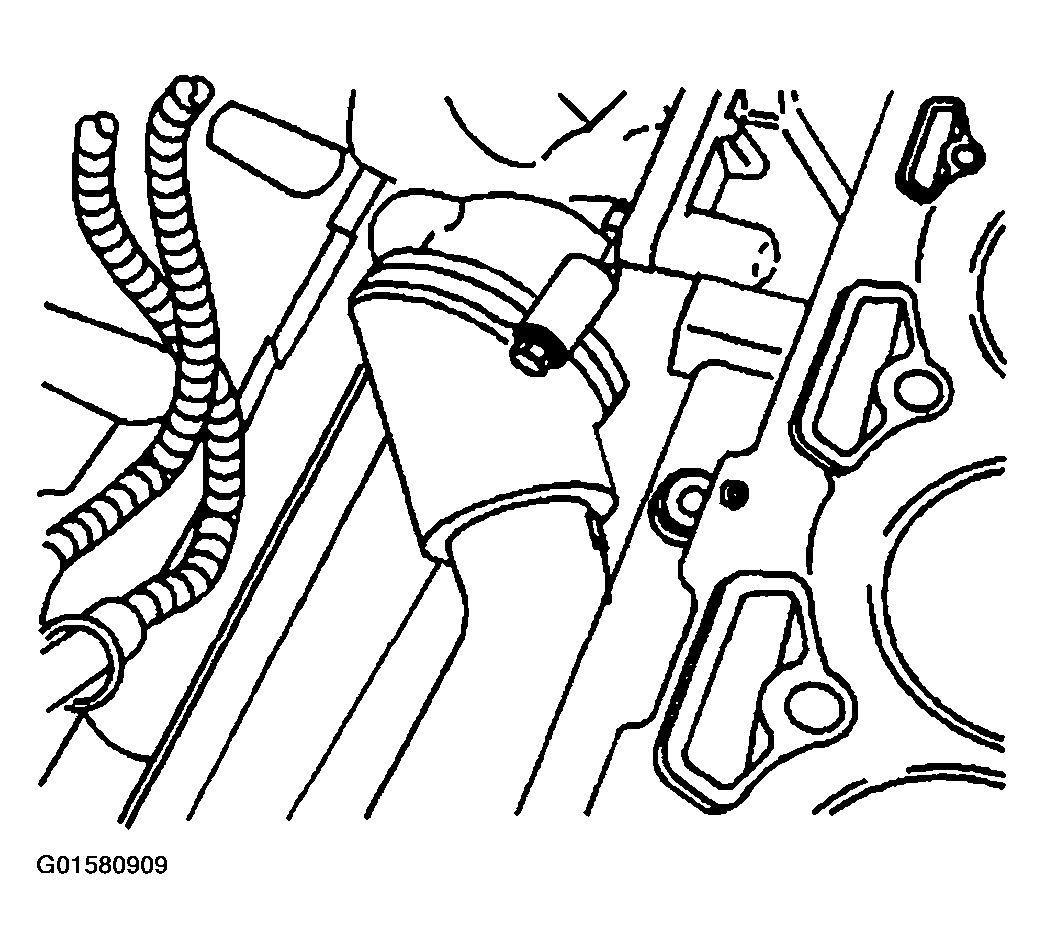

Fig 1: Locating Thermostat Housing

Courtesy of GENERAL MOTORS CORP.

If equipped with an automatic transmission, remove the exhaust manifold. Refer to EXHAUST MANIFOLD REMOVAL .
Drain the cooling system. Refer to Draining and Filling Cooling System (L61) .
Remove the thermostat housing to water pump feed pipe bolts.
Remove the thermostat housing to water pump feed pipe.

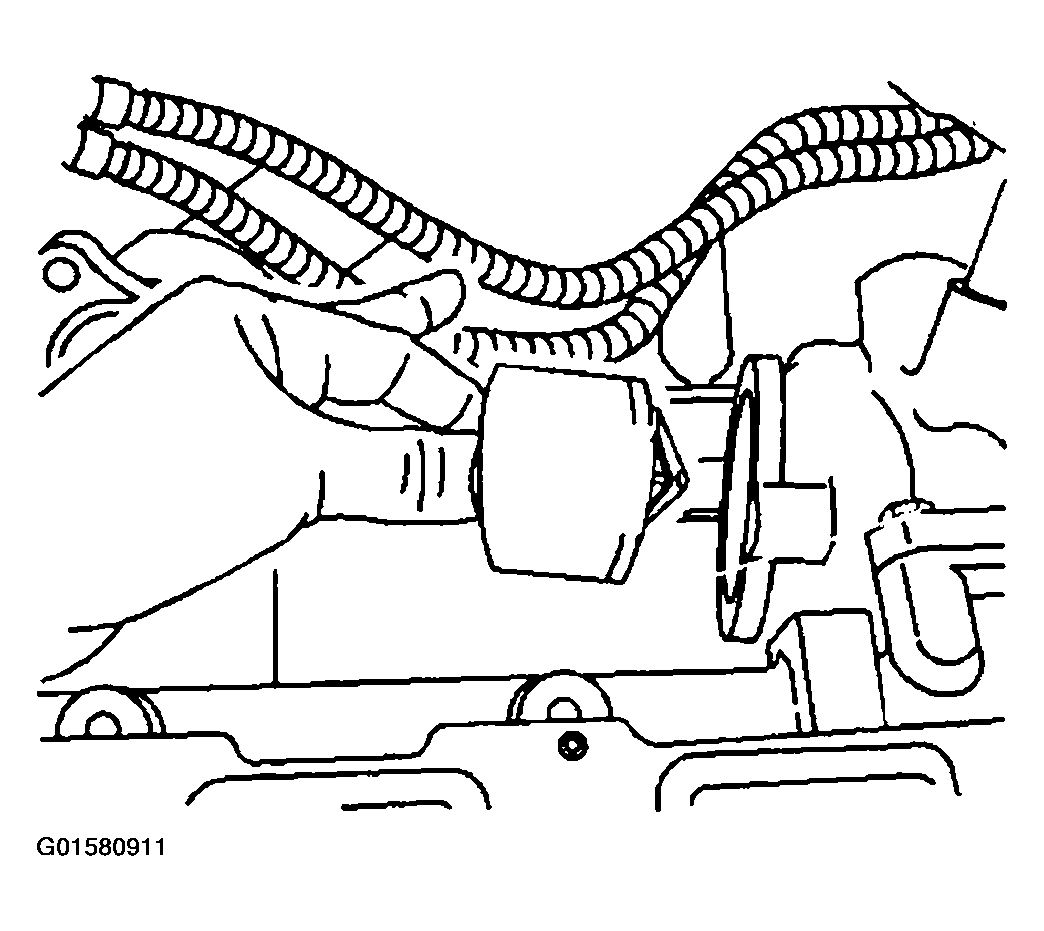

Fig 2: Removing/Installing Thermostat Housing To Water Pump Feed Pipe
Courtesy of GENERAL MOTORS CORP.
Remove the thermostat.

Fig 3: Removing/Installing Thermostat
Courtesy of GENERAL MOTORS CORP.
