Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Drain the cooling system. Refer to Draining and Filling Cooling System (L61) .
Use the J 38185 in order to reposition the outlet hose clamp from the cylinder head (2).
Remove the outlet hose from the cylinder head.

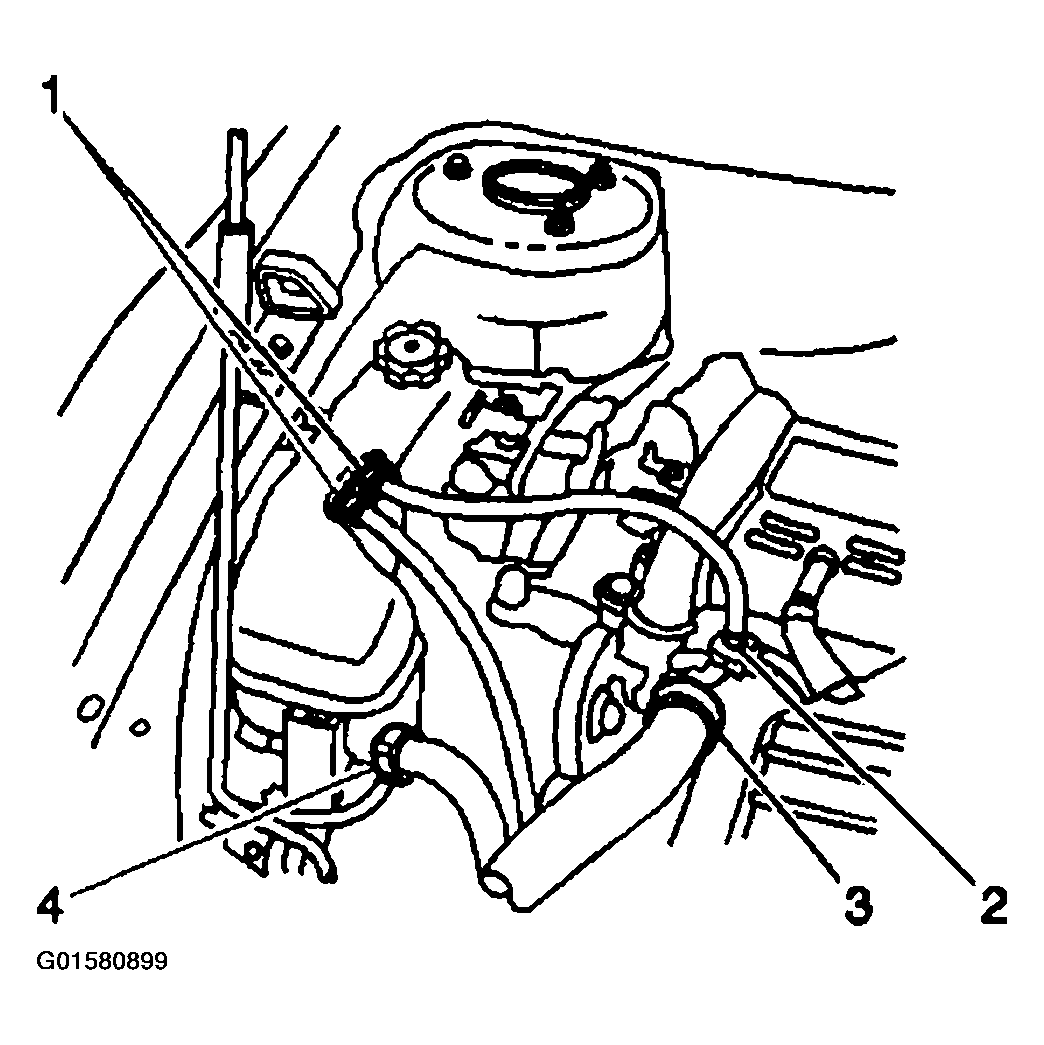

Fig 1: Identifying Outlet Hose Clamp (Engine Side)
Courtesy of GENERAL MOTORS CORP.
Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
Use the J 38185 in order to reposition the outlet hose clamp from the radiator.

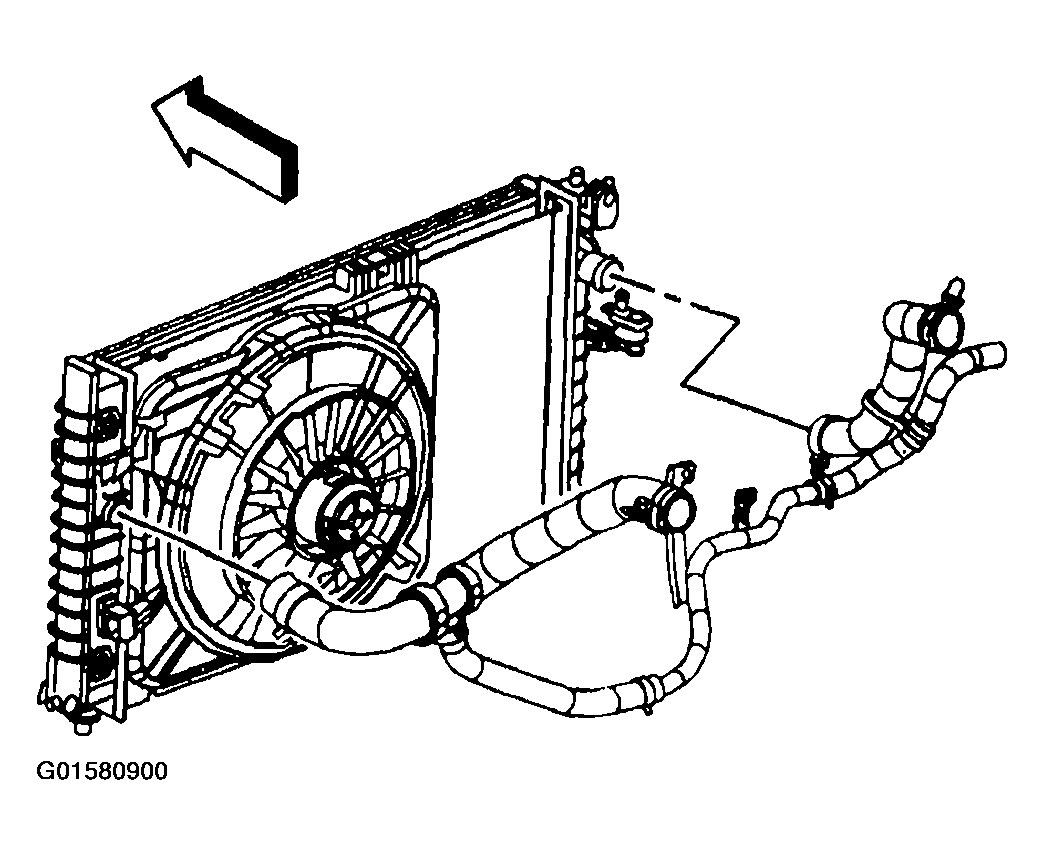

Fig 2: Removing/Installing Outlet Hose From Radiator
Courtesy of GENERAL MOTORS CORP.
Remove the outlet hose (2) from the radiator.
