Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the inlet hose (1) to the radiator. See Figure.
  2. Use the J 38185  in order to reposition the inlet hose clamp to the radiator.
  3. Lower the vehicle.
  4. Install the inlet hose to the water outlet (1).

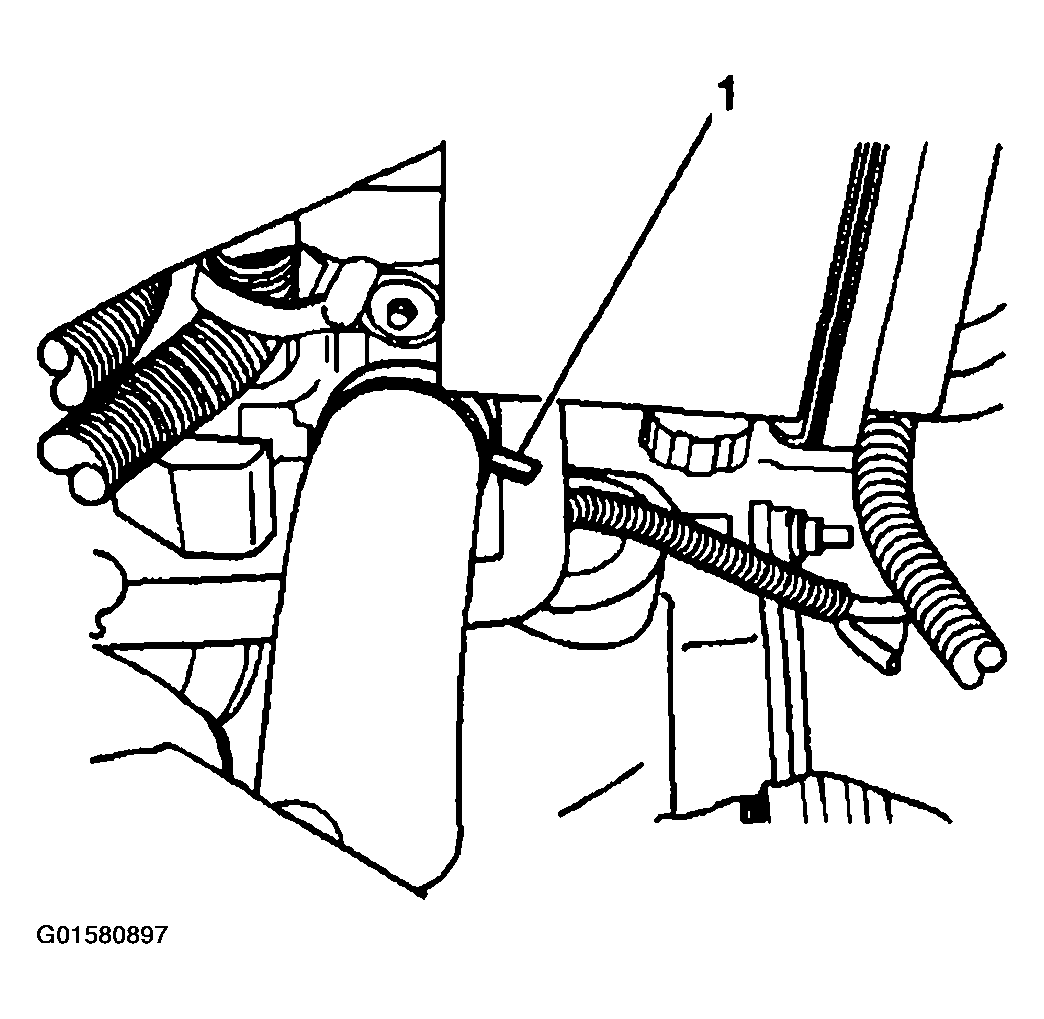

    Fig 1: Identifying Inlet Hose Clamp (Engine Side)
    G01580897Courtesy of GENERAL MOTORS CORP.
  5. Use the J 38185  in order to reposition the inlet hose clamp to the water outlet.
  6. Install the intake air duct resonator.
  7. Tighten the air duct clamp.
  8. Connect the electrical connector to the intake air temperature sensor.
  9. Fill the cooling system. Refer to Draining and Filling Cooling System (L61) .
