Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

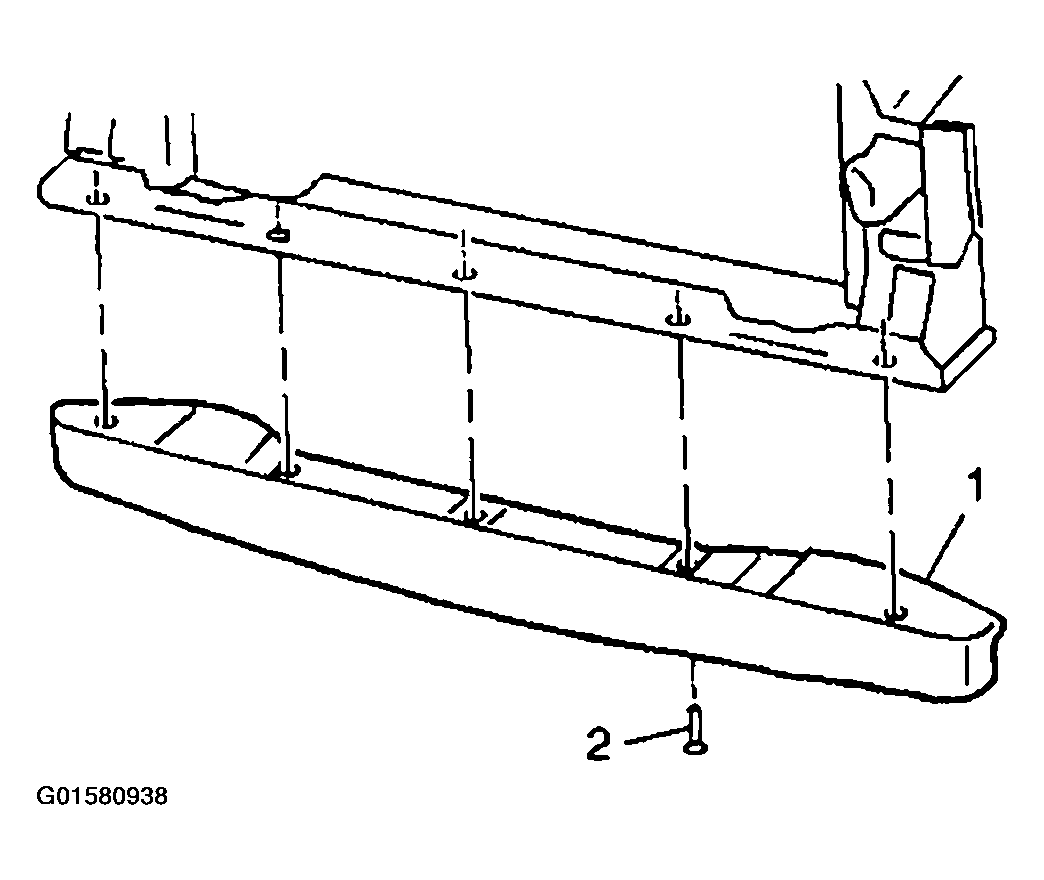

  1. Install the lower air deflector (1) into position. See Figure.
  2. Install the pop rivets (2) to the lower air deflector.
  3. Lower the vehicle.
