Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the upper filler panel.
  3. Remove the upper radiator mount bolts.
  4. Remove the upper bolts retaining hood latch bracket to core support
  5. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  6. Remove the cooling fan mounting bolt.

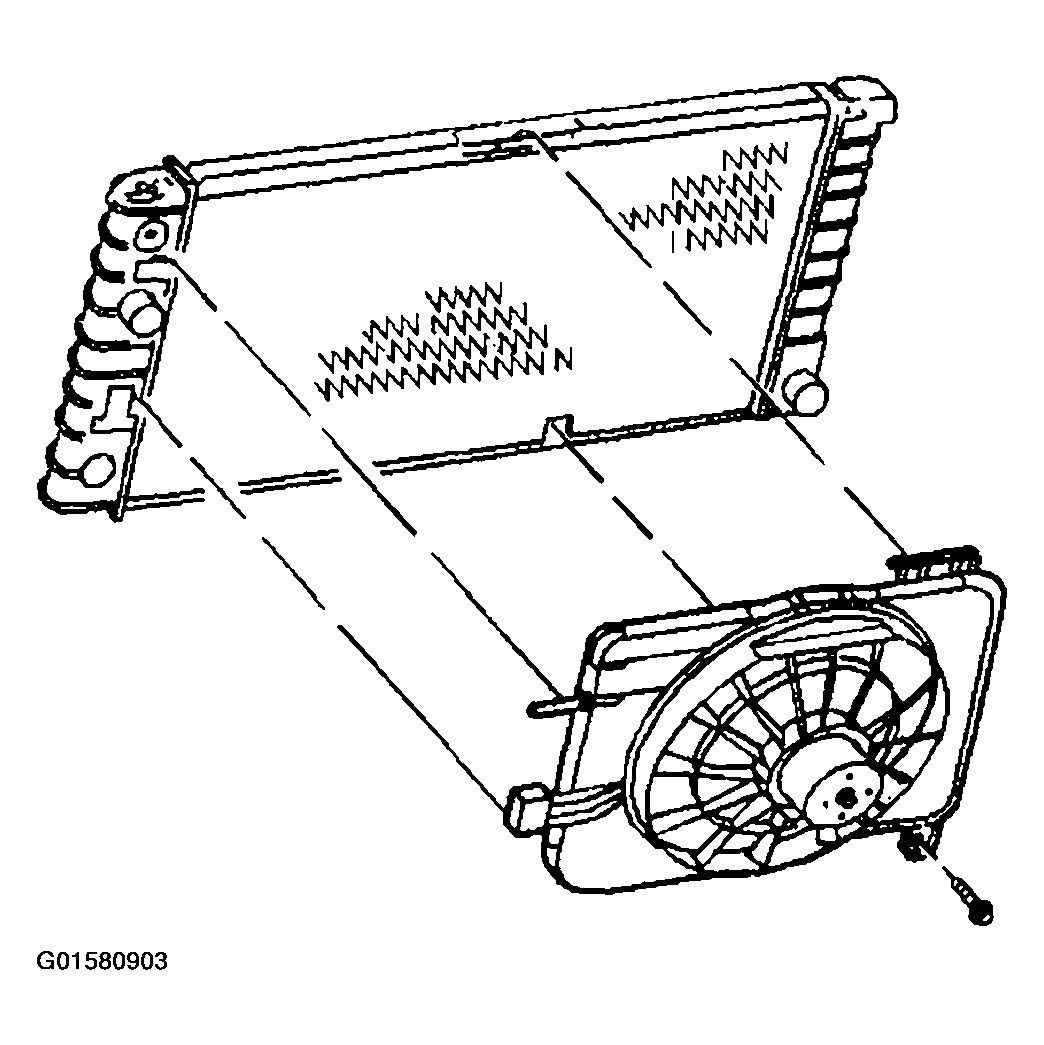

    Fig 1: Removing Cooling Fan Assembly
    G01580903Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the electrical connector from the cooling fan.
    Fig 2: Locating Cooling Fan Electrical Connector
    G01580904Courtesy of GENERAL MOTORS CORP.
  8. Remove the cooling fan assembly.
