Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the underhood electrical center cover.

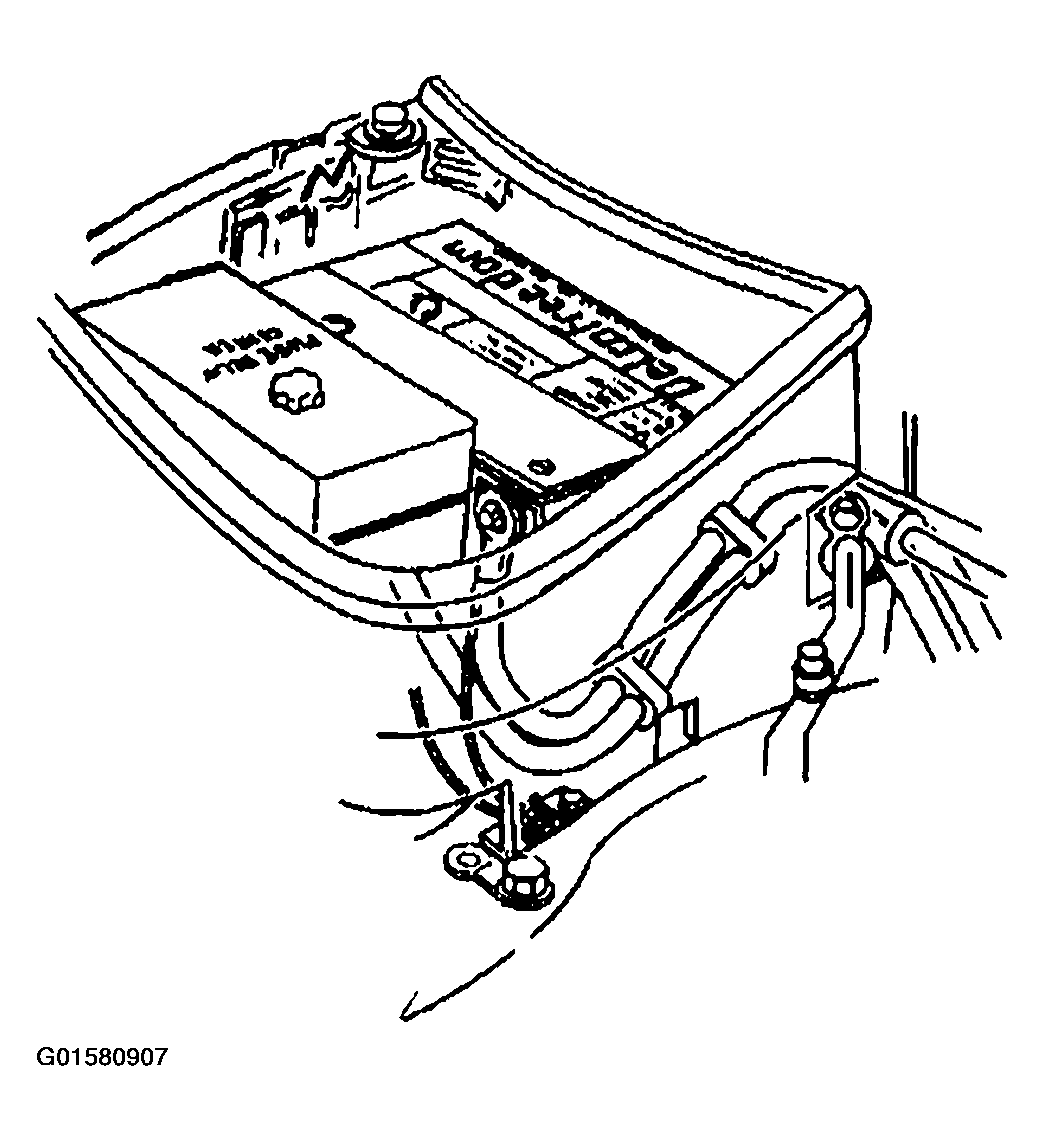

    Fig 1: Locating Underhood Electrical Center
    G01580907Courtesy of GENERAL MOTORS CORP.
  2. Using the J 43244  , remove the cooling fan relay.
