Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the coolant heater cord (1).

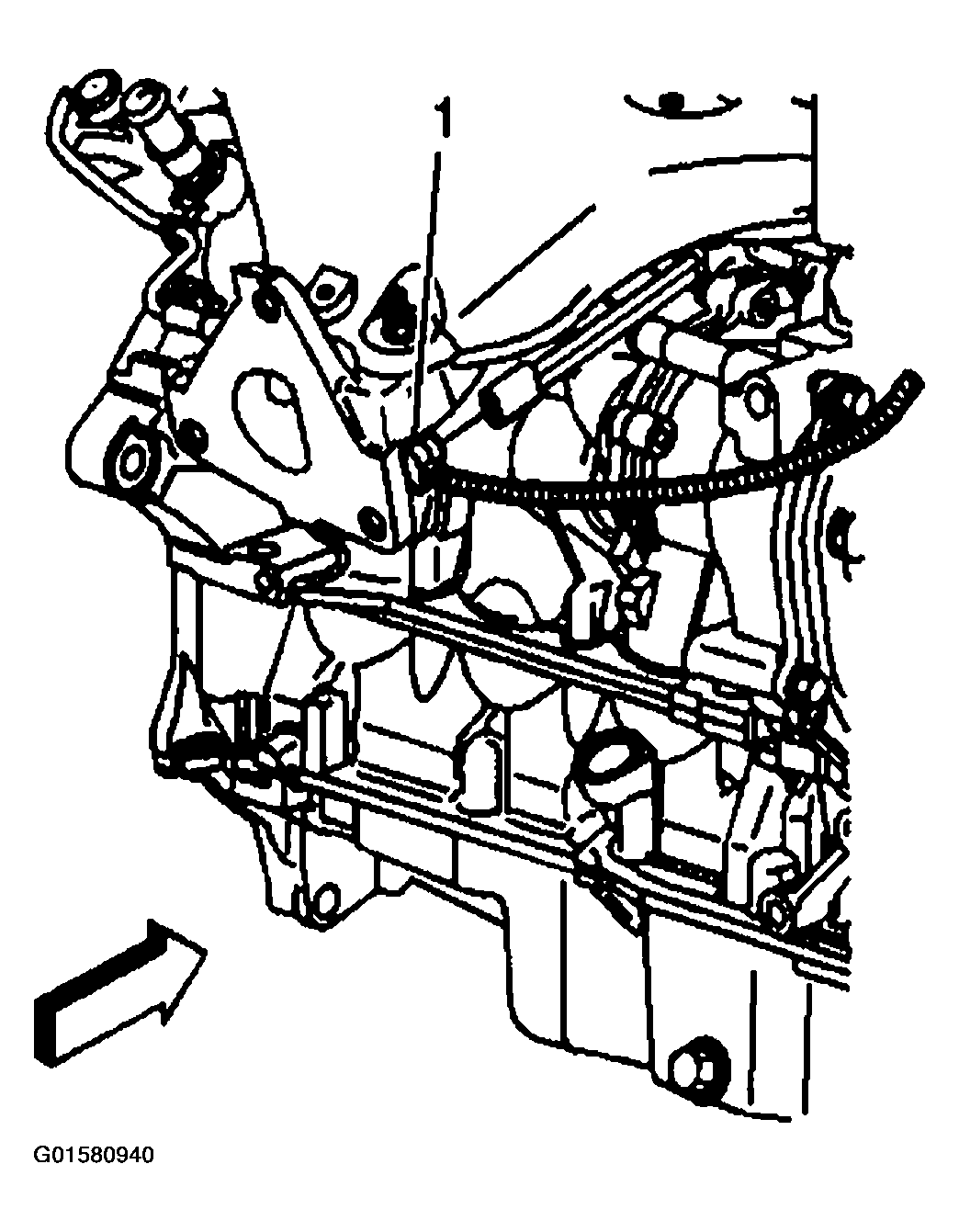

    Fig 1: Identifying Coolant Heater Cord
    G01580940Courtesy of GENERAL MOTORS CORP.
  2. Remove the coolant heater bolt.

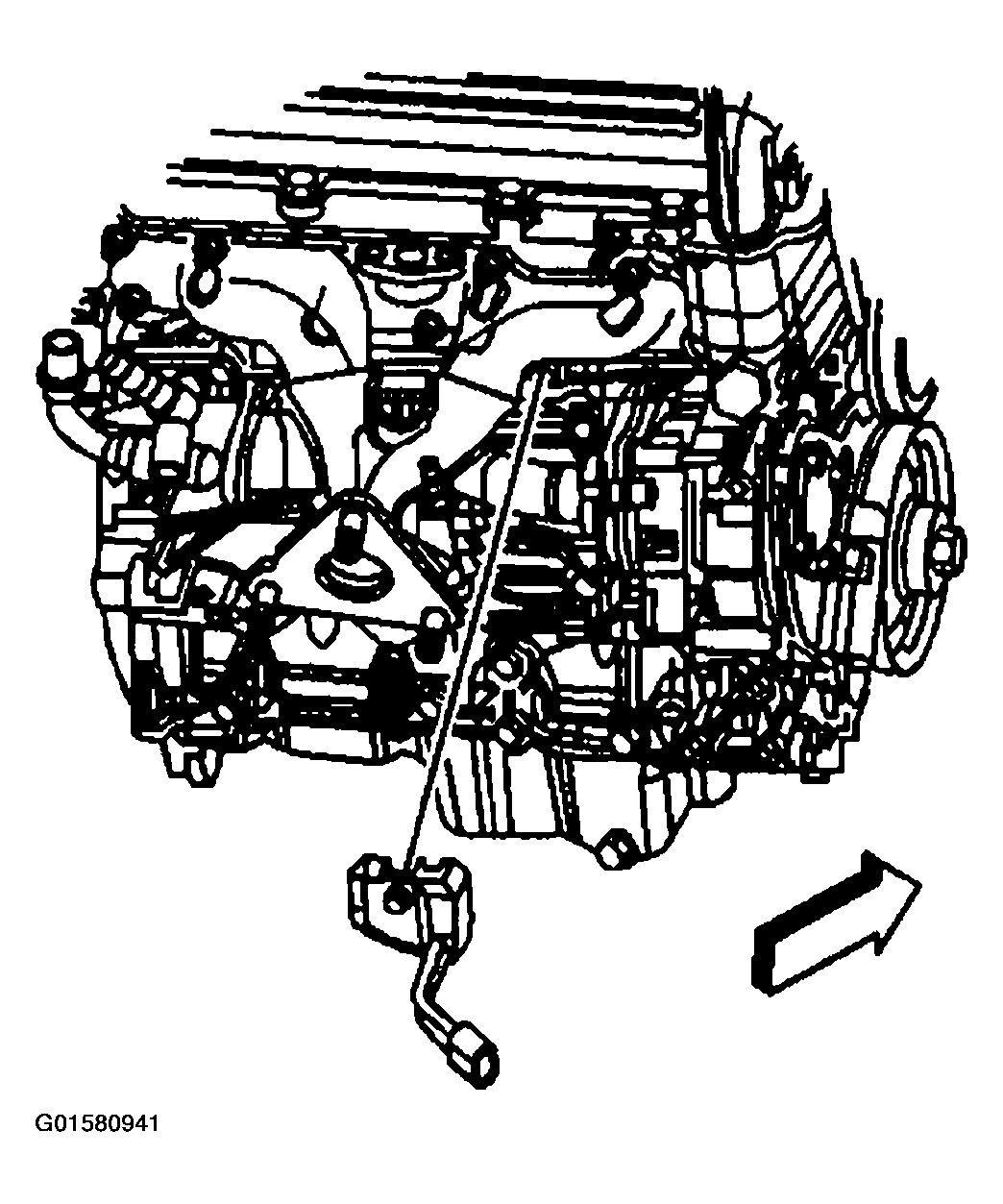

    Fig 2: Removing/Installing Coolant Heater
    G01580941Courtesy of GENERAL MOTORS CORP.
  3. Remove the coolant heater.
