Low Engine Coolant Indicator Always On

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

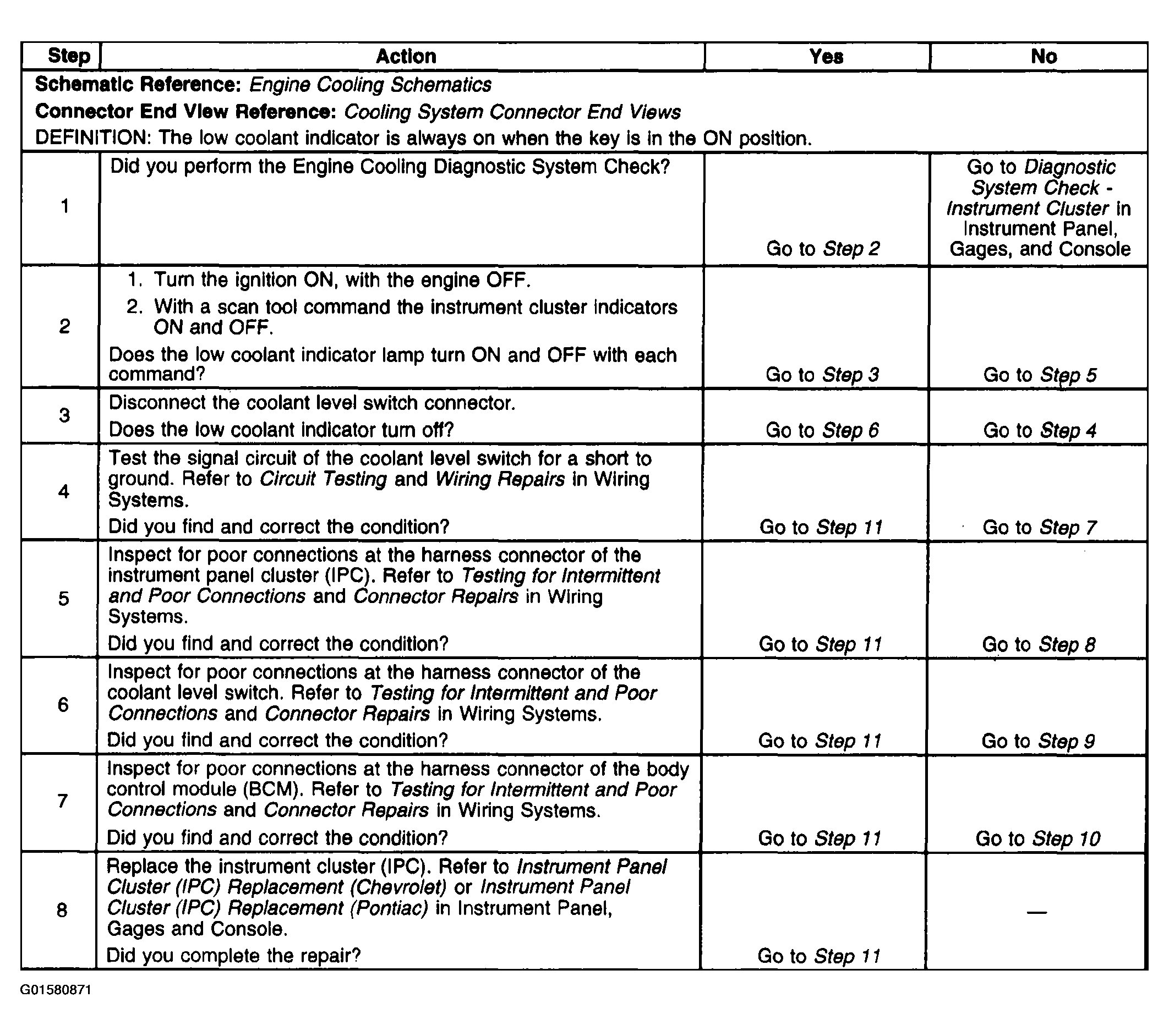

Fig 1: Low Engine Coolant Indicator Always On Diagnostic Table (Steps 1-8)
G01580871Courtesy of GENERAL MOTORS CORP.

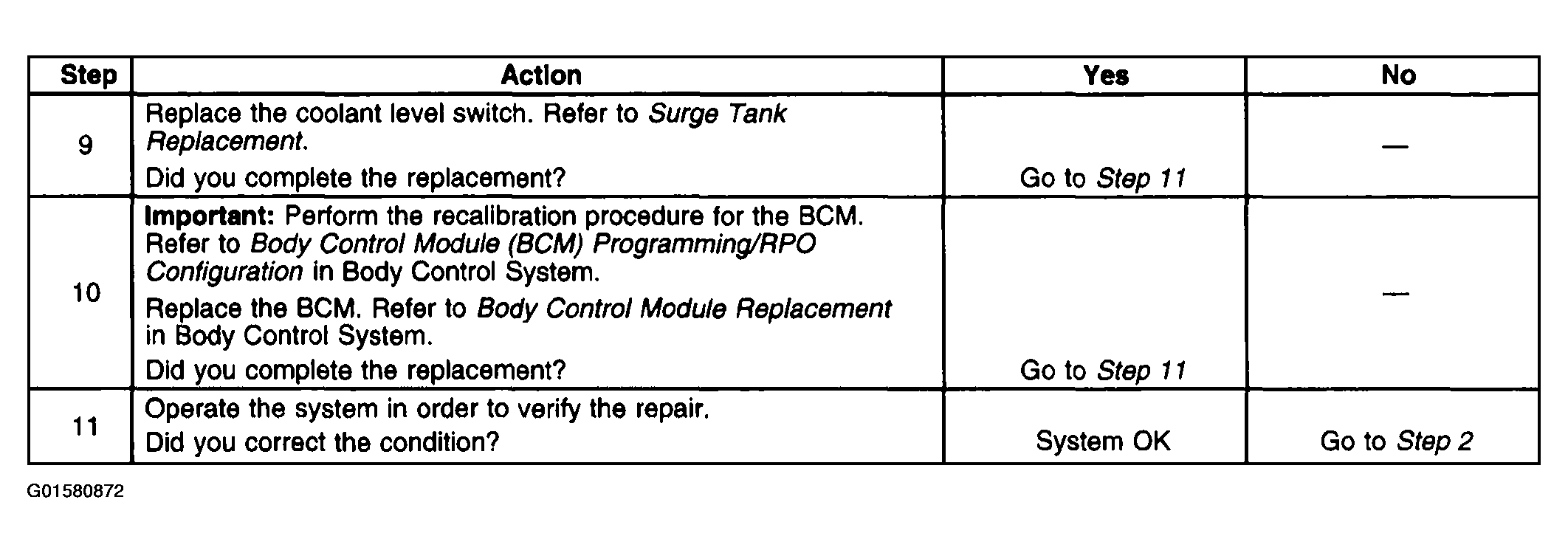

Fig 2: Low Engine Coolant Indicator Always On Diagnostic Table (Steps 9-11)
G01580872Courtesy of GENERAL MOTORS CORP.
