Engine Overheating

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

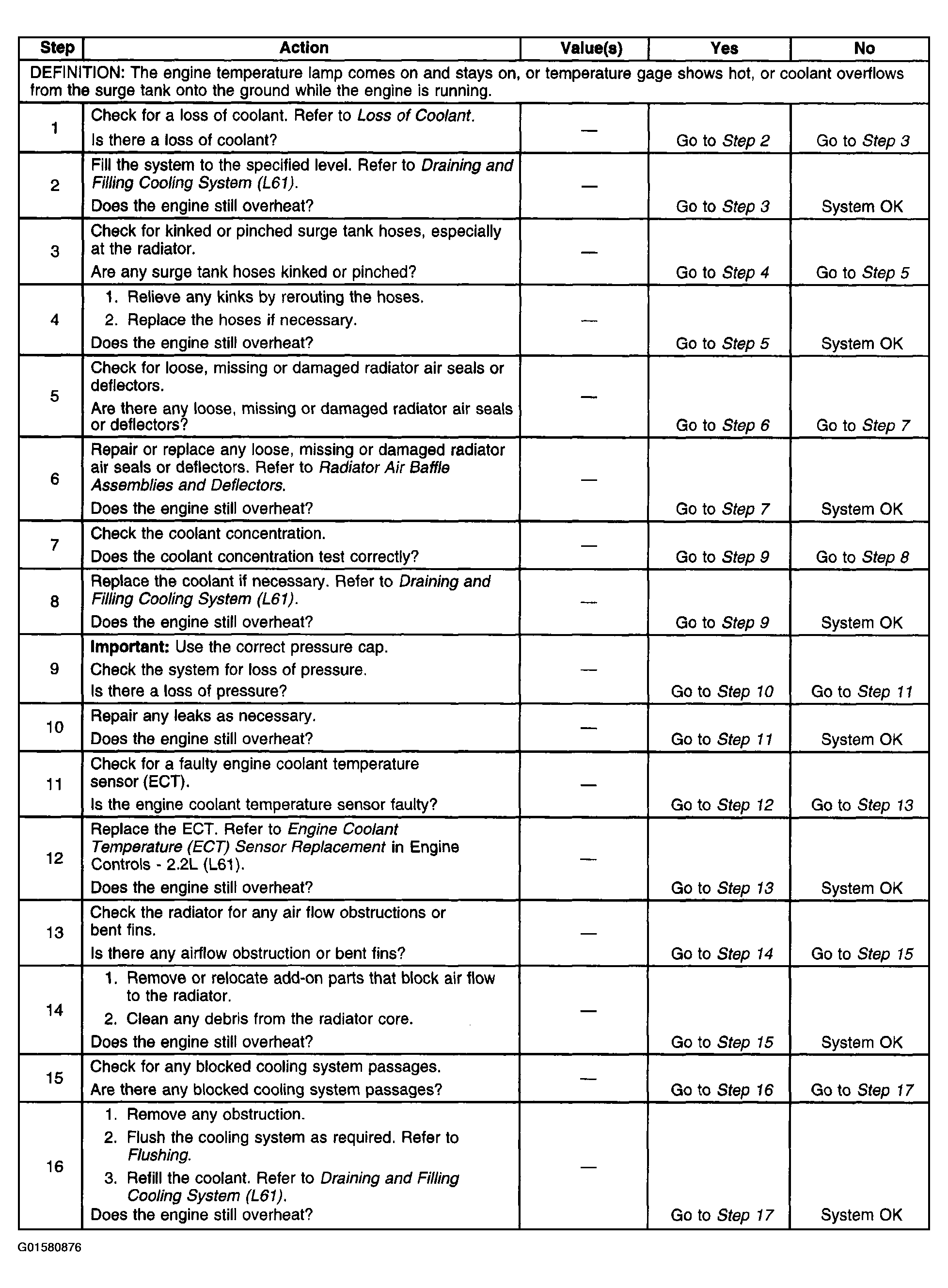

Fig 1: Engine Overheating Diagnostic Table (Steps 1-16)
G01580876Courtesy of GENERAL MOTORS CORP.

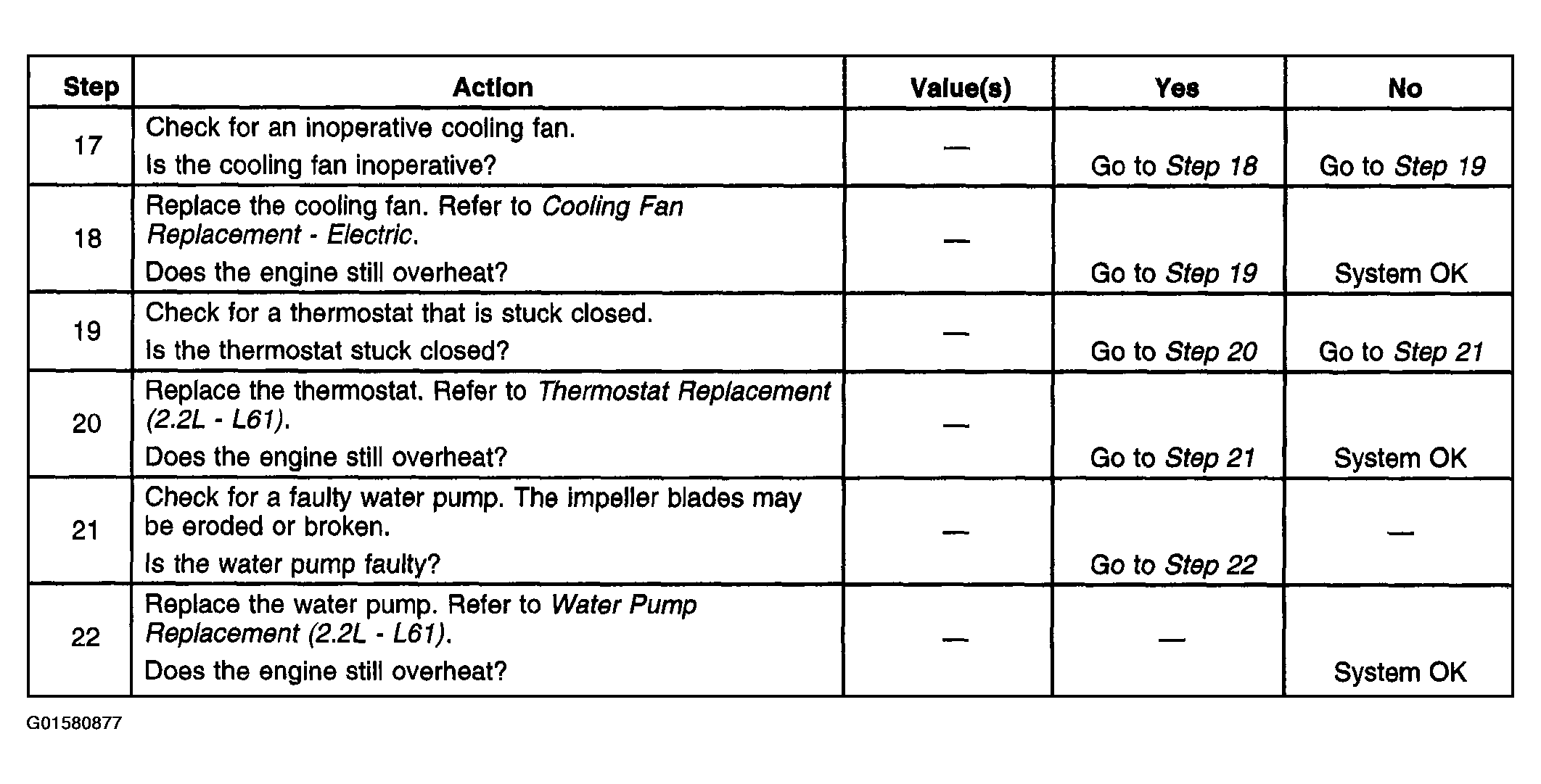

Fig 2: Engine Overheating Diagnostic Table (Steps 17-22)
G01580877Courtesy of GENERAL MOTORS CORP.
