Cooling Fan Run On

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

The cooling fan can run for up to a total of 7 minutes after the ignition is turned OFF when 1 of the below parameters are met.

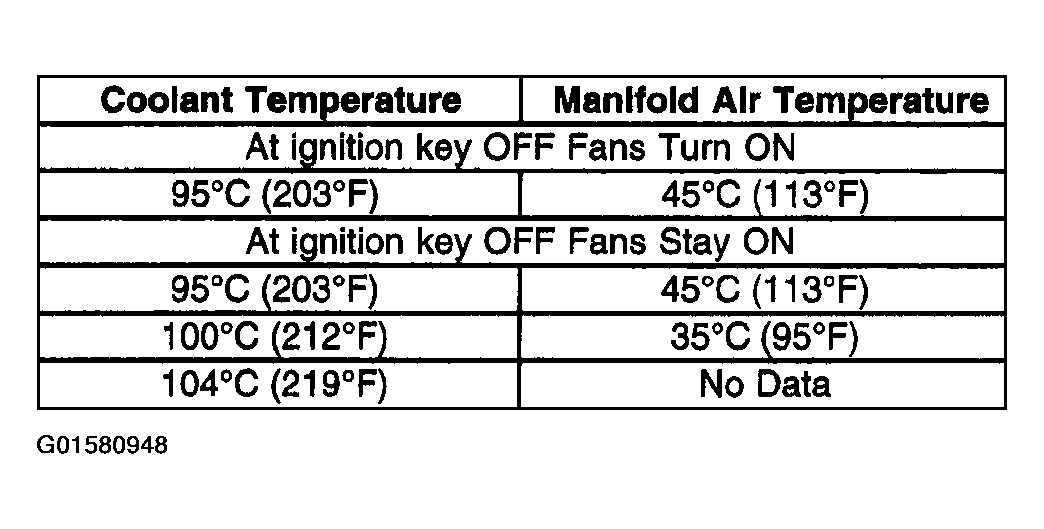

Fig 1: Cooling Fan Run On Table
G01580948Courtesy of GENERAL MOTORS CORP.
