Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Sunfire and 2003 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Installing Muffler Hanger Bolts
G01581316Courtesy of GENERAL MOTORS CORP.
  1. Install the muffler hanger bolts.

    Tighten

    Tighten the muffler hanger bolts to 16 N.m (12 ft lbs).

  2. Clamp the muffler to the intermediate pipe.

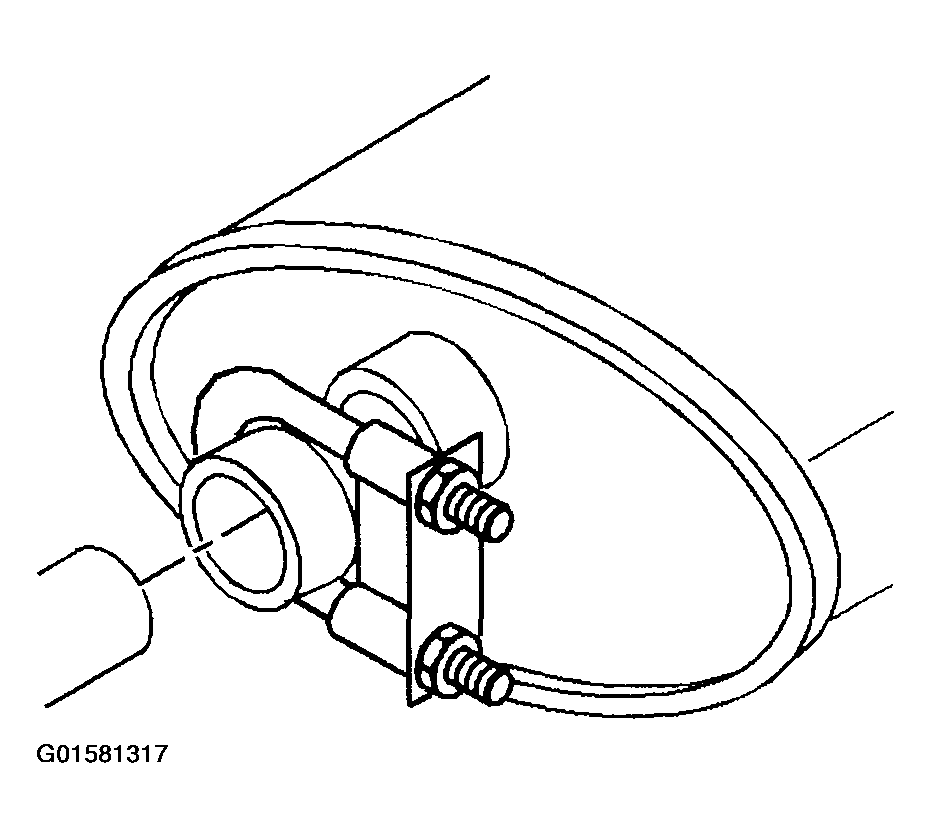

    Fig 2: Clamping Muffler To Intermediate Pipe
    G01581317Courtesy of GENERAL MOTORS CORP.
  3. Lower the vehicle.
