Front Toe Adjustment

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure that the steering wheel is set in a straight ahead position.
  2. Loosen the tie rod jam nut (5).
  3. Adjust the toe to specification by turning the adjuster (6). Refer to Wheel Alignment Specifications .
  4. Install the tie rod jam nut (5). Tighten the tie rod jam nut (5) to 68 N.m (50 lb ft).

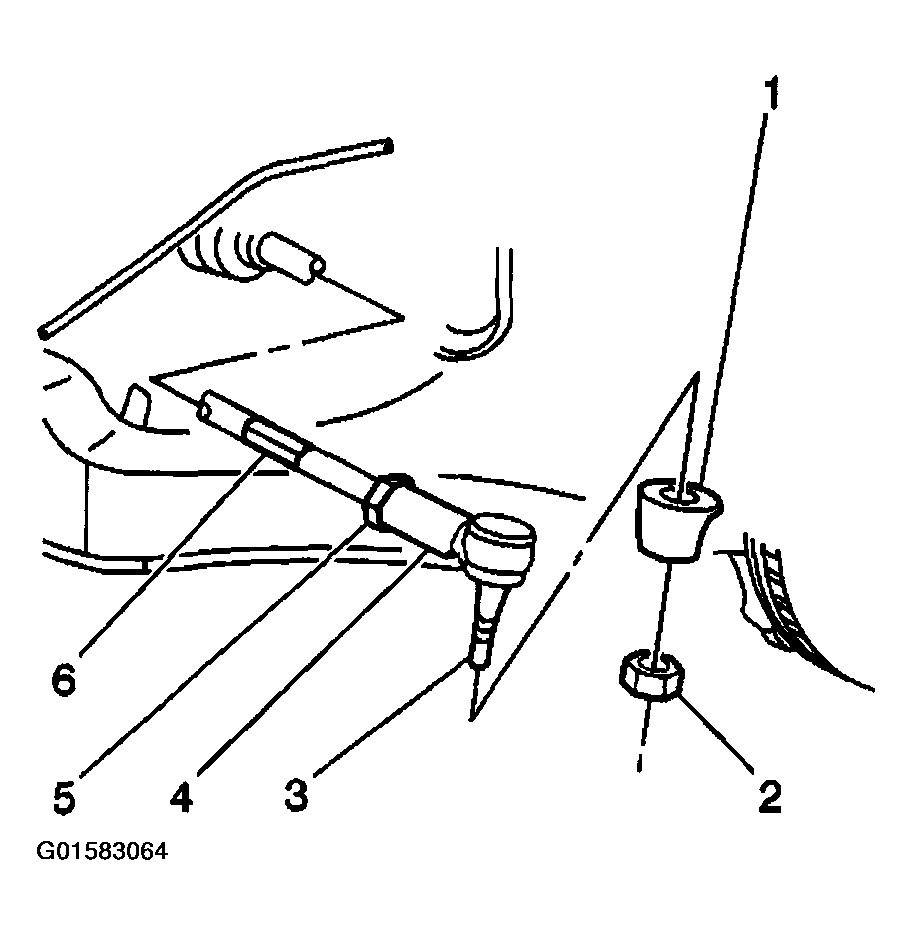

    Fig 1: Tie Rod Assembly
    G01583064Courtesy of GENERAL MOTORS CORP.
