Special Tools & Equipment

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

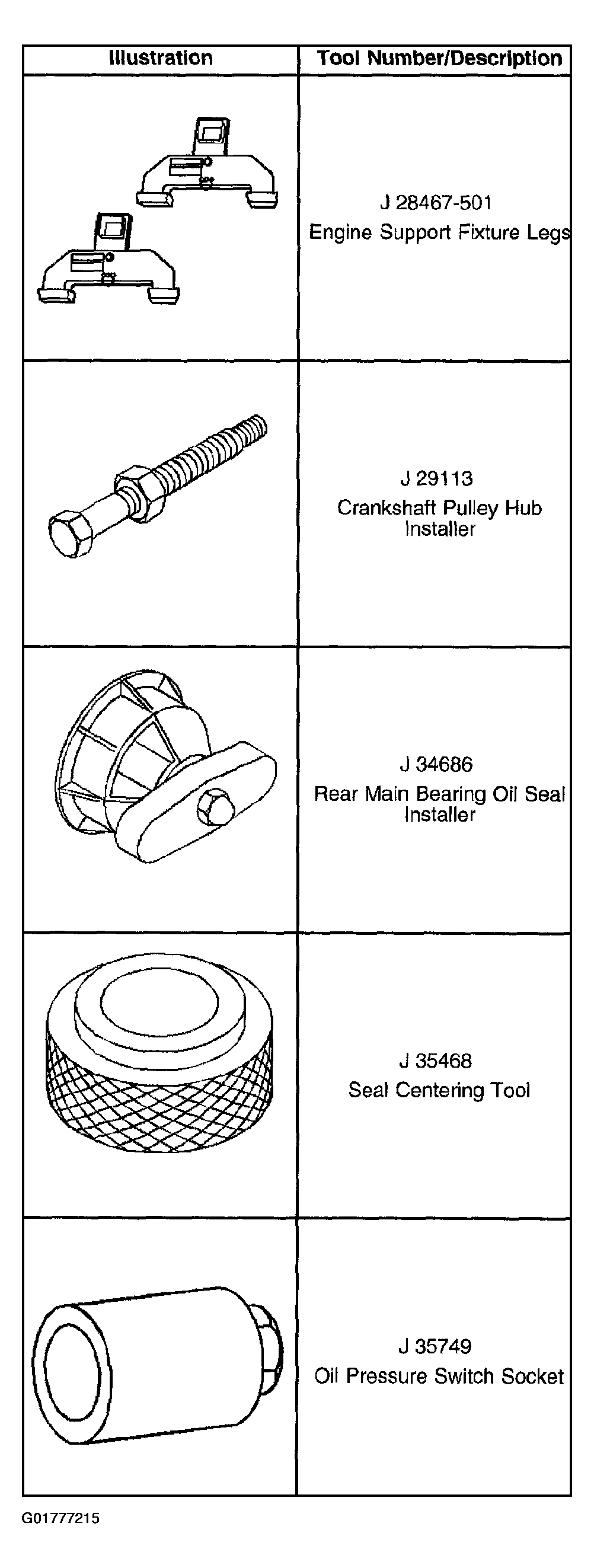

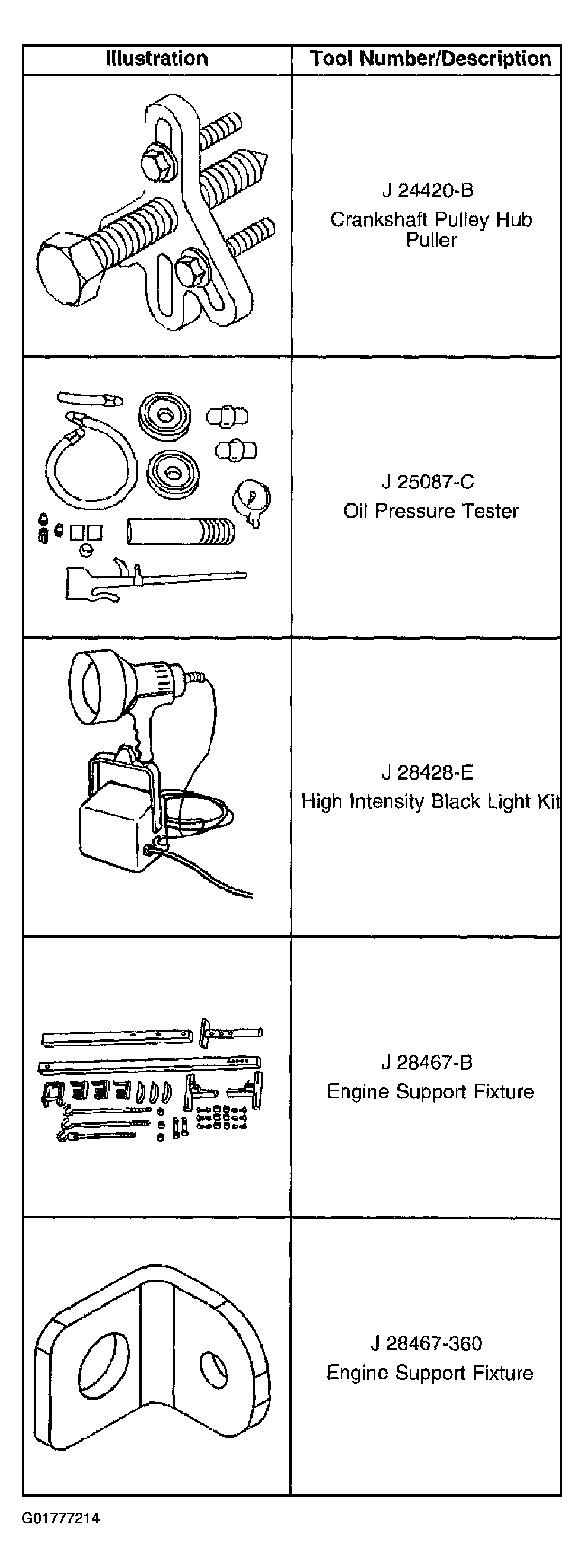

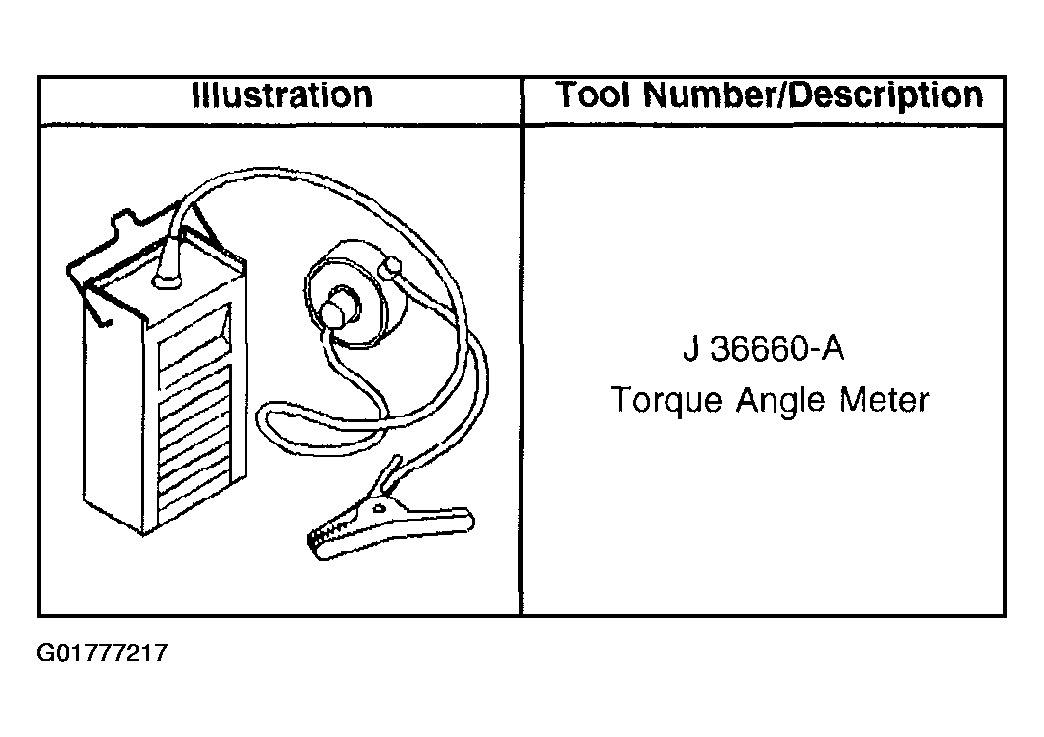

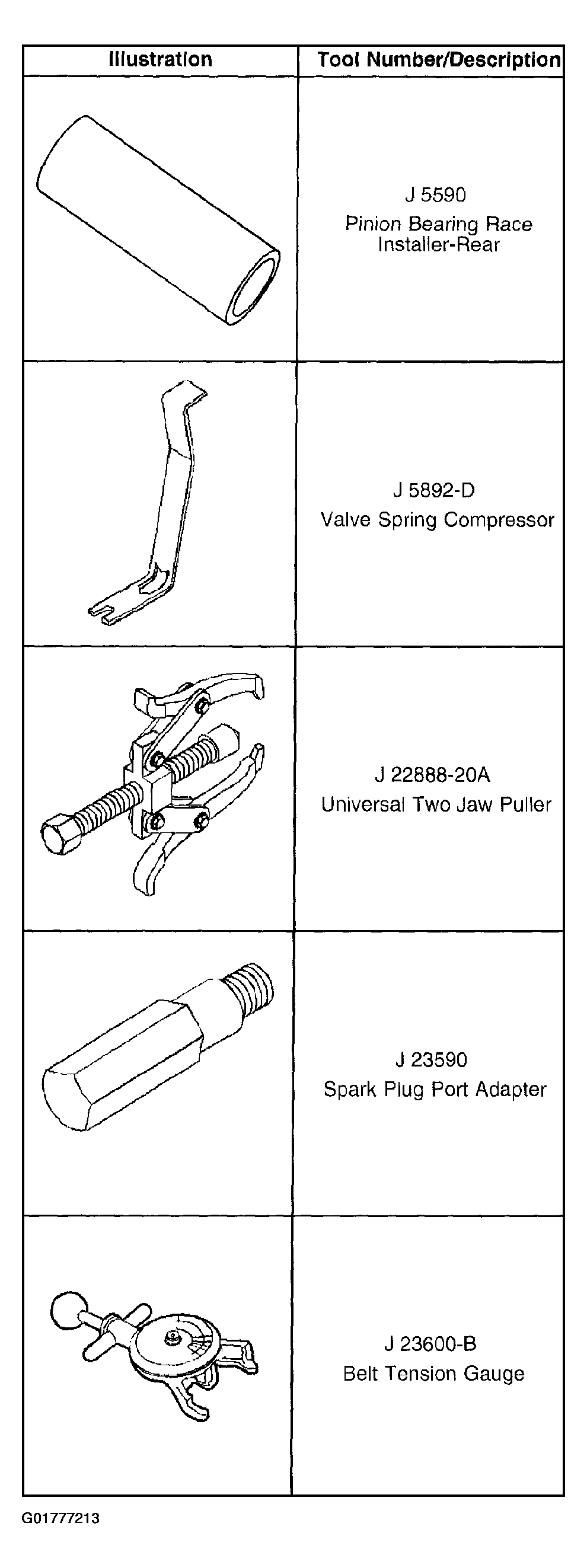

Fig 1: Special Tools & Equipment (1 Of 5)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Special Tools & Equipment (2 Of 5)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Special Tools & Equipment (3 Of 5)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Special Tools & Equipment (4 Of 5)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Special Tools & Equipment (5 Of 5)

Courtesy of GENERAL MOTORS CORP.
