Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the negative battery cable.
  2. Remove the resonator and duct assembly.

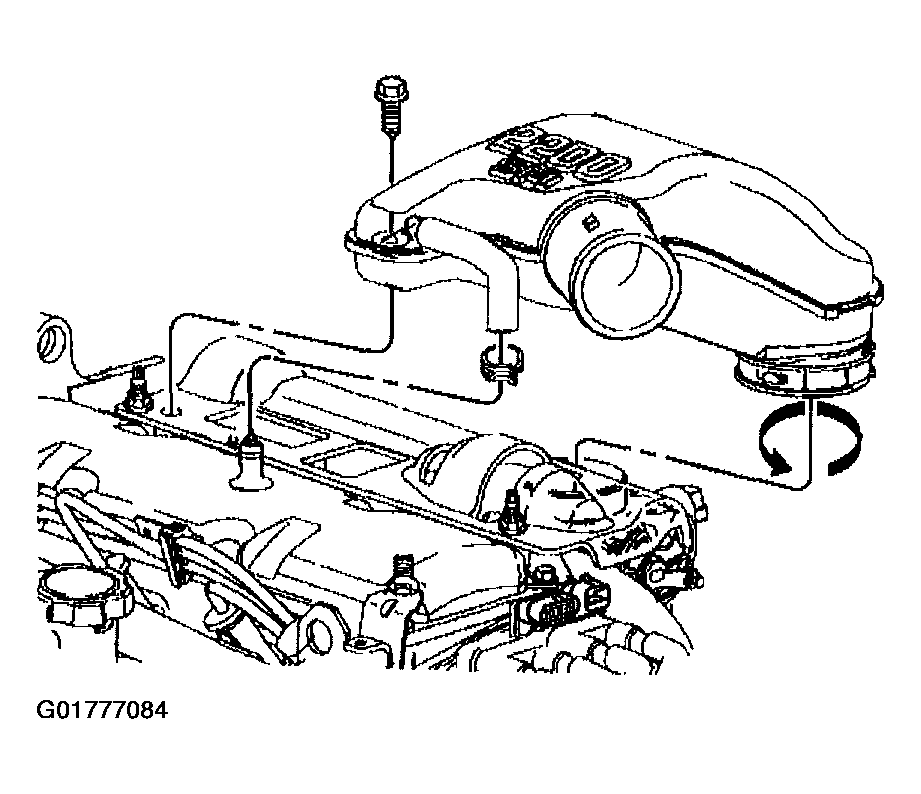

    Fig 1: Resonator And Duct Assembly
    G01777084Courtesy of GENERAL MOTORS CORP.
  3. Remove the resonator bracket/fuel rail cover.

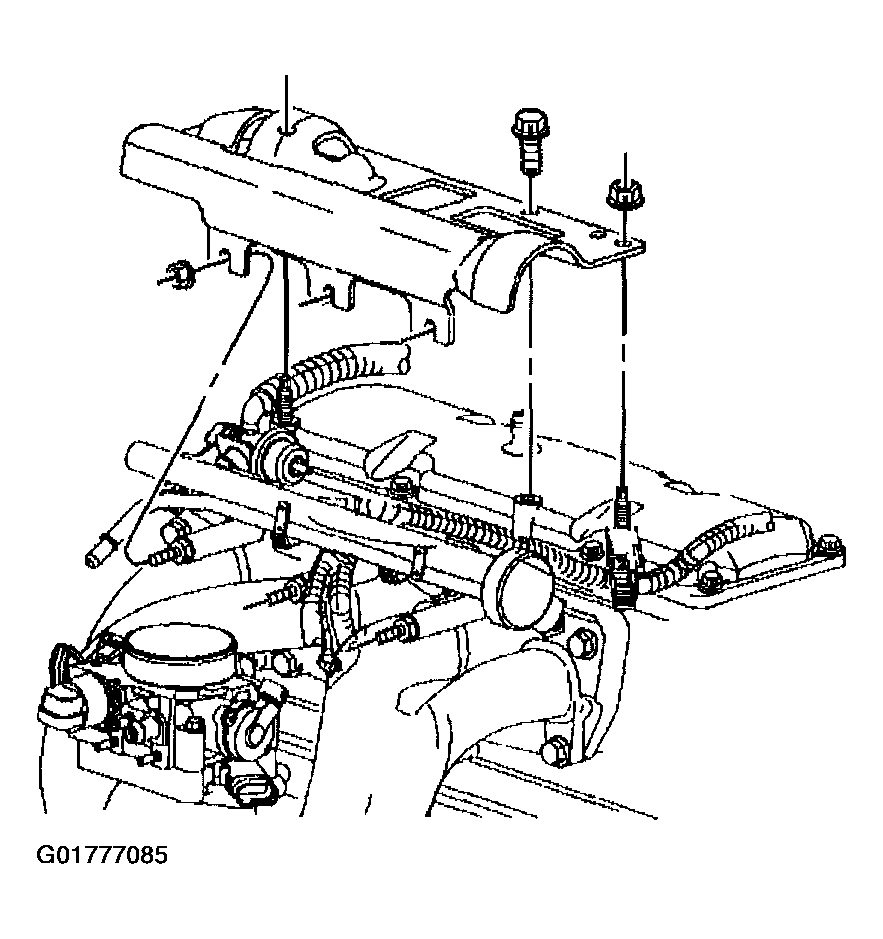

    Fig 2: Resonator Bracket/Fuel Rail Cover
    G01777085Courtesy of GENERAL MOTORS CORP.
  4. Remove left engine wiring harness retainer bracket nut and bracket.
  5. Remove wiring harness from retainer on valve backer arm cover.
  6. Remove the valve rocker arm cover bolts.
  7. Remove the valve rocker arm cover.
  8. Clean the sealing surface on the cylinder head and the valve rocker arm cover.

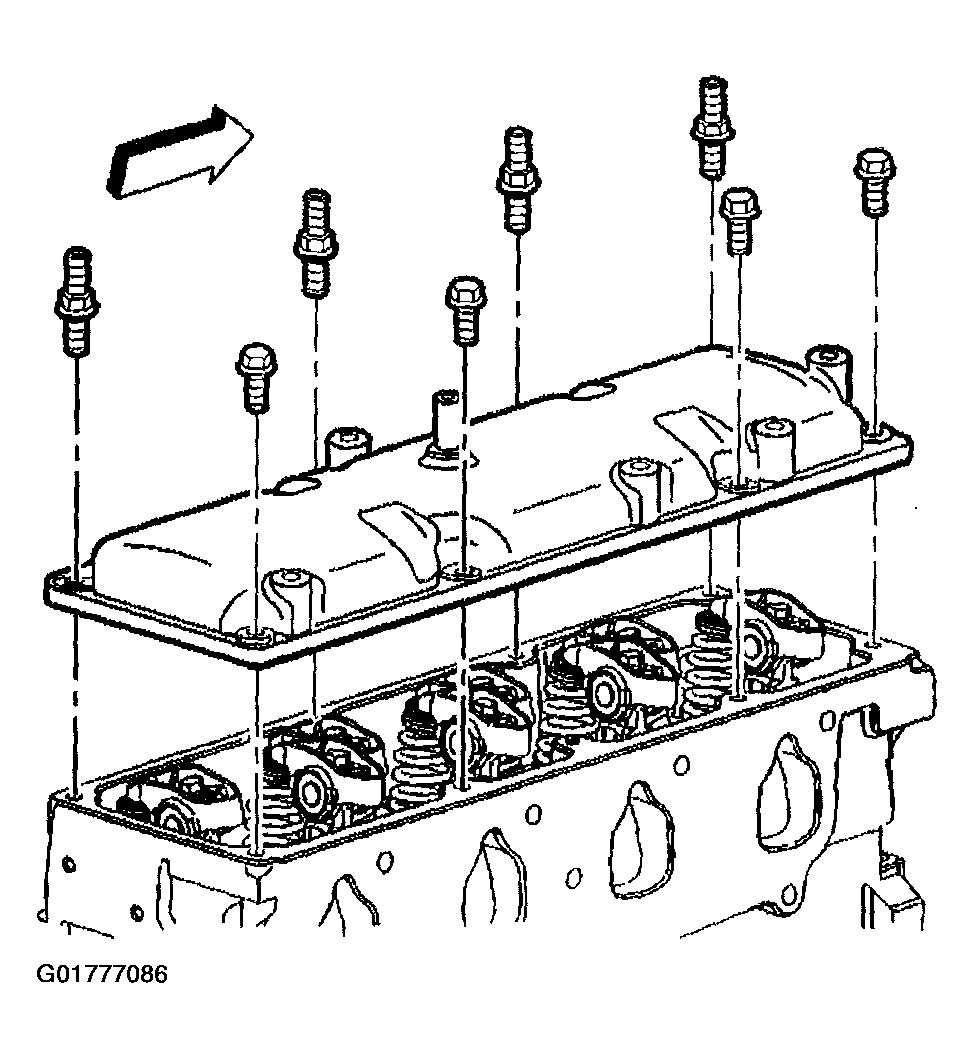

    Fig 3: Valve Rocker Arm Cover
    G01777086Courtesy of GENERAL MOTORS CORP.
