Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the valve rocker arm cover. Refer to Valve Rocker Arm Cover Replacement .

    Important:  Place the components in a rack in order of disassembly so they can be reinstalled at the same location and with the same mating surface as when removed.

  2. Remove the rocker arm bolt.
  3. Remove the rocker arm.

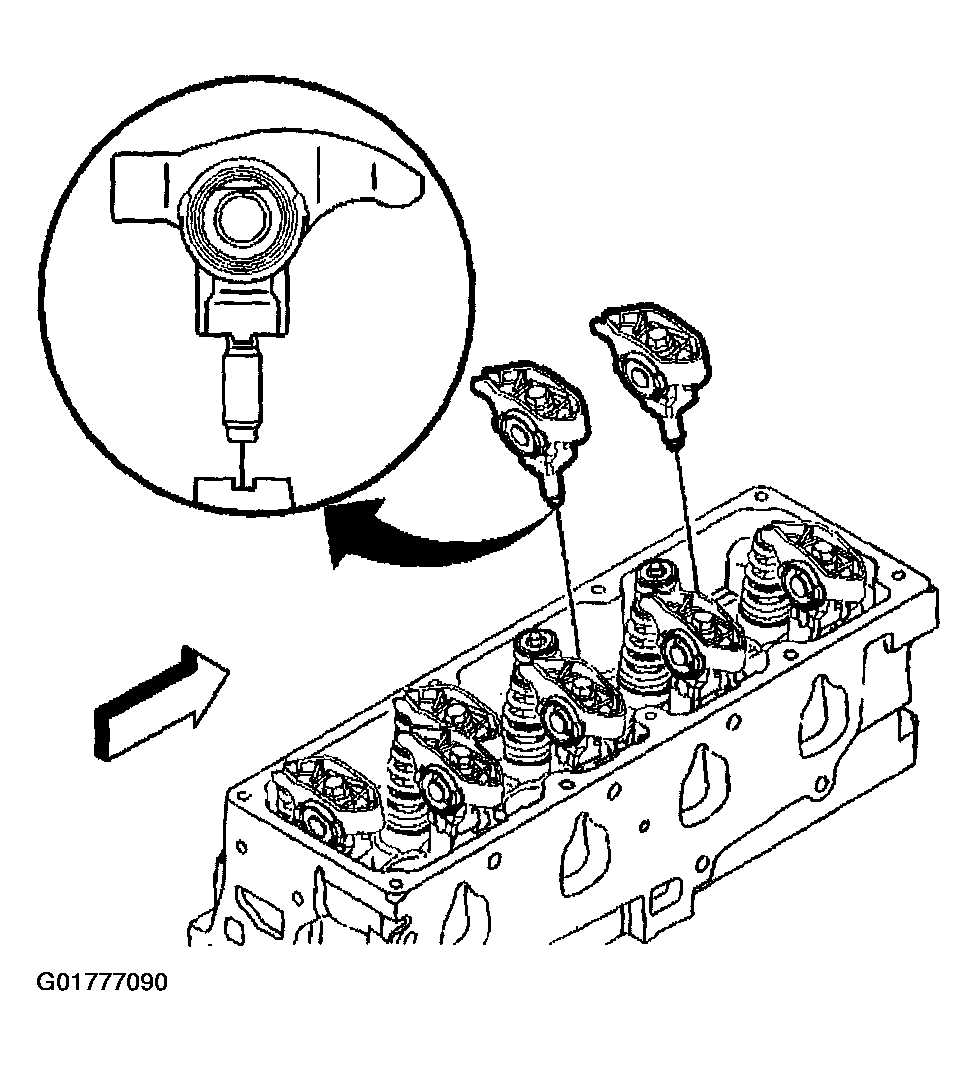

    Fig 1: Rocker Arm
    G01777090Courtesy of GENERAL MOTORS CORP.
  4. Remove the pushrod.

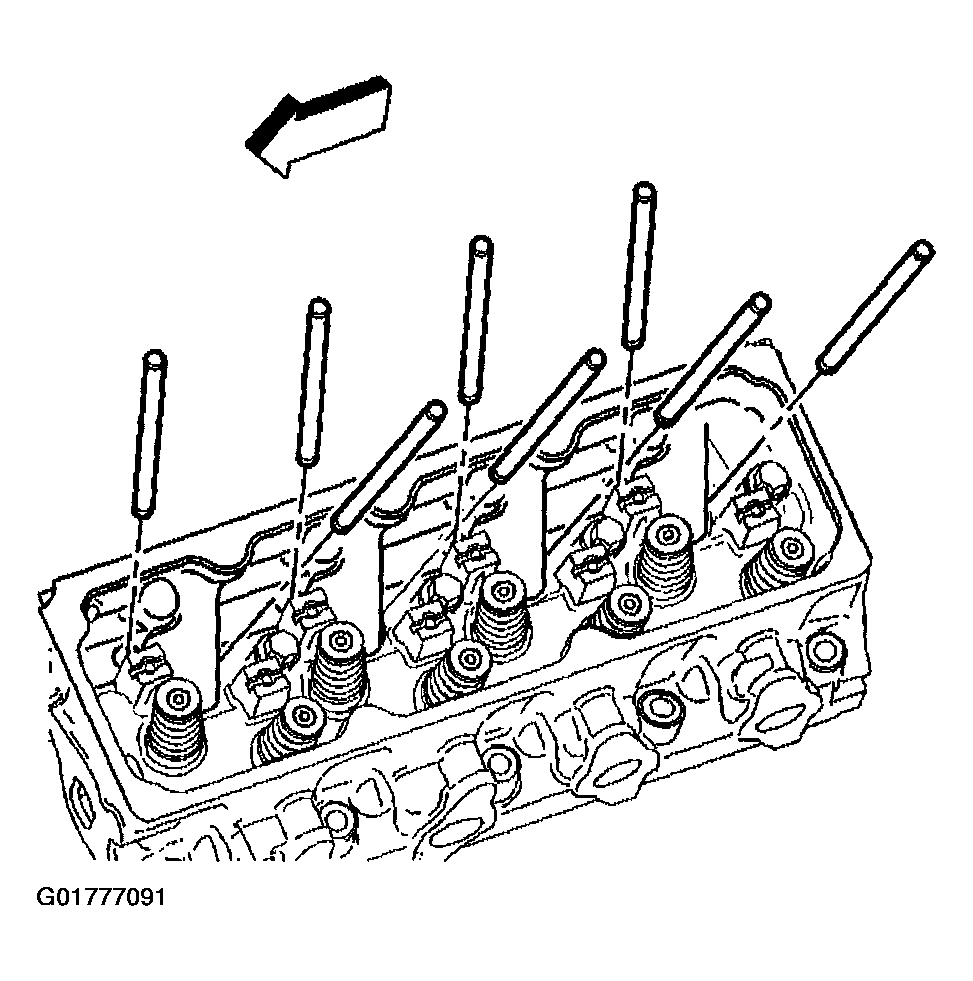

    Fig 2: Pushrods
    G01777091Courtesy of GENERAL MOTORS CORP.
