Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cylinder head. Refer to Cylinder Head Replacement .
  2. Remove the cylinder head gasket.

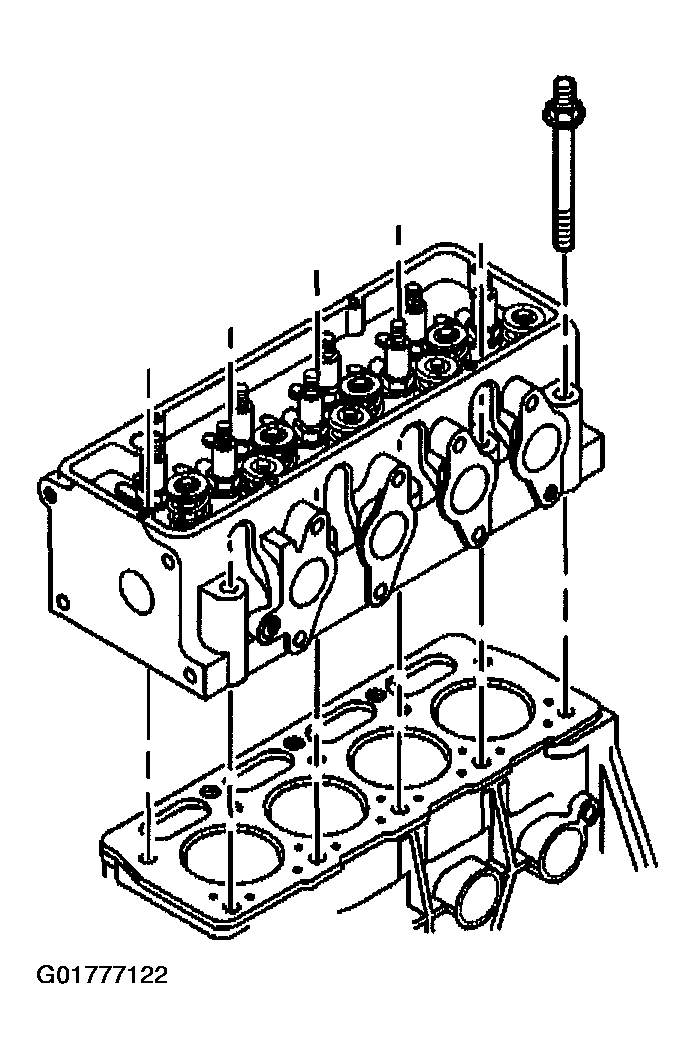

    Fig 1: Cylinder Head
    G01777122Courtesy of GENERAL MOTORS CORP.
  3. Remove the anti-rotation brackets.

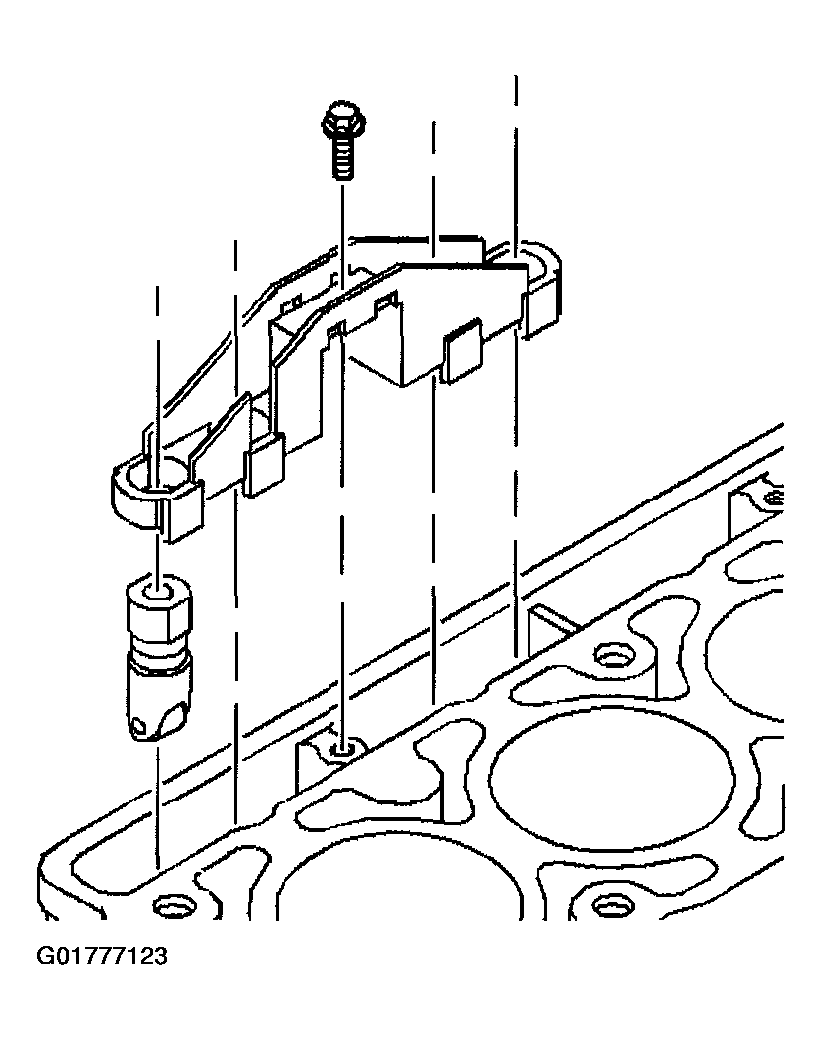

    Fig 2: Anti-Rotation Brackets
    G01777123Courtesy of GENERAL MOTORS CORP.

    Important:  Hydraulic valve lifters do not require adjustment. Valve lifters must be kept in order so they may be reinstalled in their original position.

  4. Remove the valve lifters.

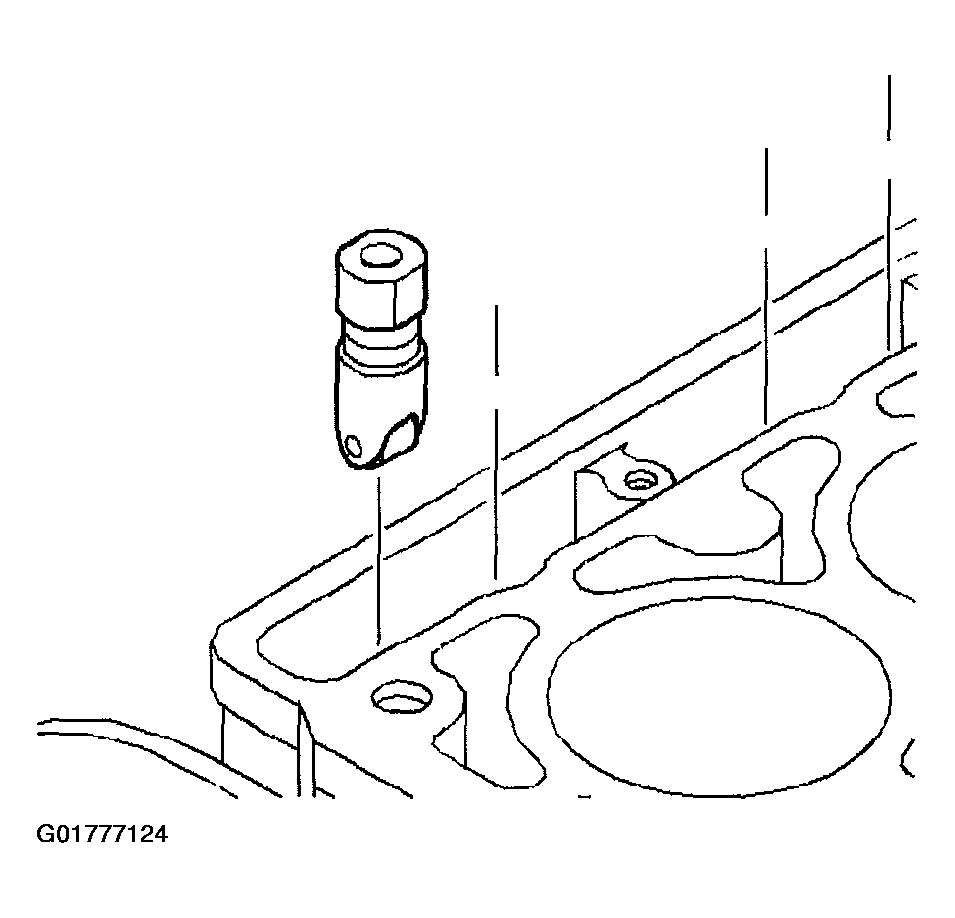

    Fig 3: Valve Lifters
    G01777124Courtesy of GENERAL MOTORS CORP.
