Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pan. Refer to Oil Pan Replacement .
  2. Remove the oil pump to rear main bearing cap bolt.
  3. Remove the oil pump.
    Fig 1: Oil Pump
    G01777164Courtesy of GENERAL MOTORS CORP.
  4. Remove the extension shaft and the retainer.

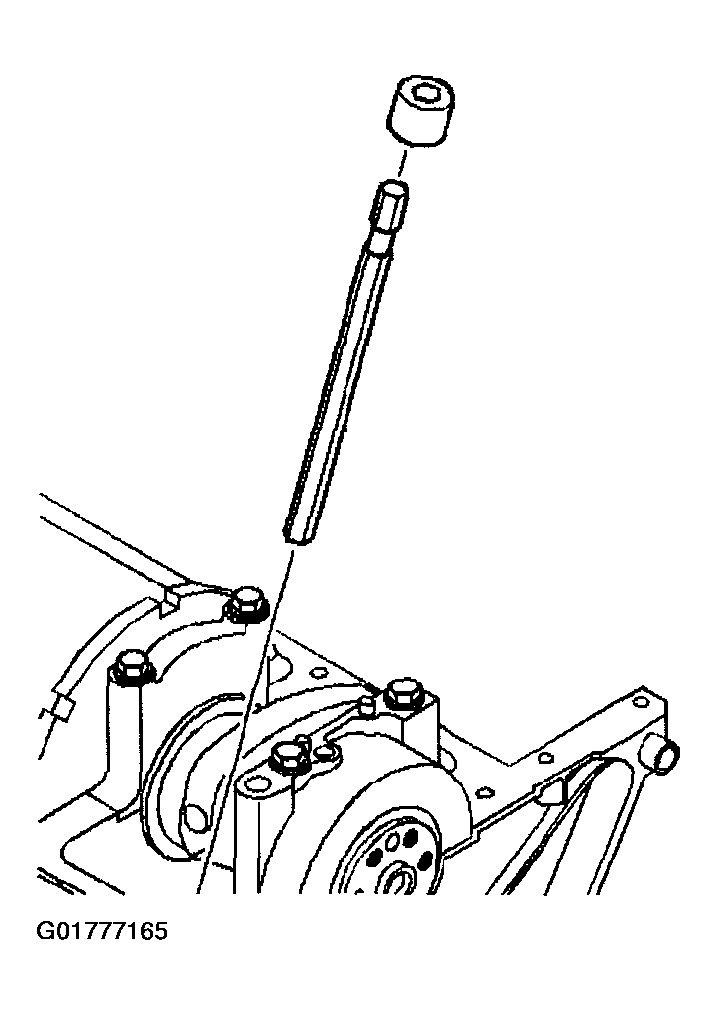

    Fig 2: Extension Shaft And Retainer
    G01777165Courtesy of GENERAL MOTORS CORP.
