Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the intake manifold. Refer to Intake Manifold Replacement .
  2. Remove the oil pump drive bolt.

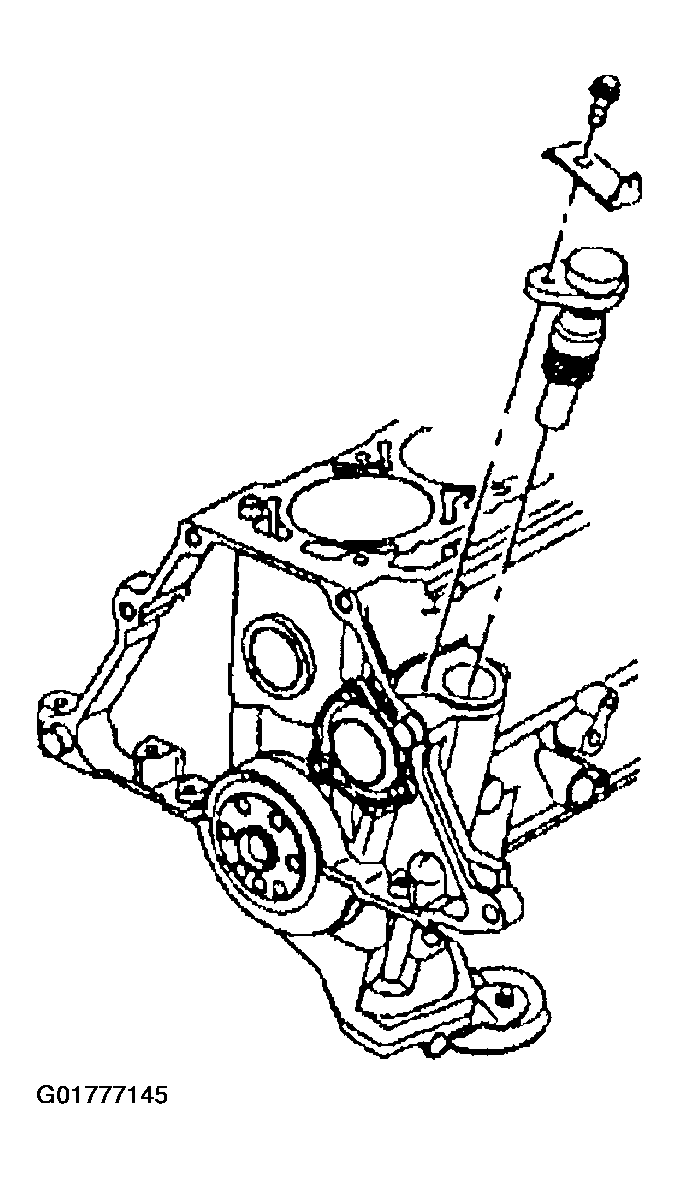

    3. Fig 1: Oil Pump Drive Bolt
    G01777145Courtesy of GENERAL MOTORS CORP.
  3. Use a lifting and turning motion to remove the oil pump drive.
  4. Inspect the oil pump drive shaft for excessive wear or damage.
