Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Raise the hood.
Disconnect the battery ground (negative) cable.
Install the J 28467-B J 28467-7A (1) and J 28467-B (2) to the vehicle.

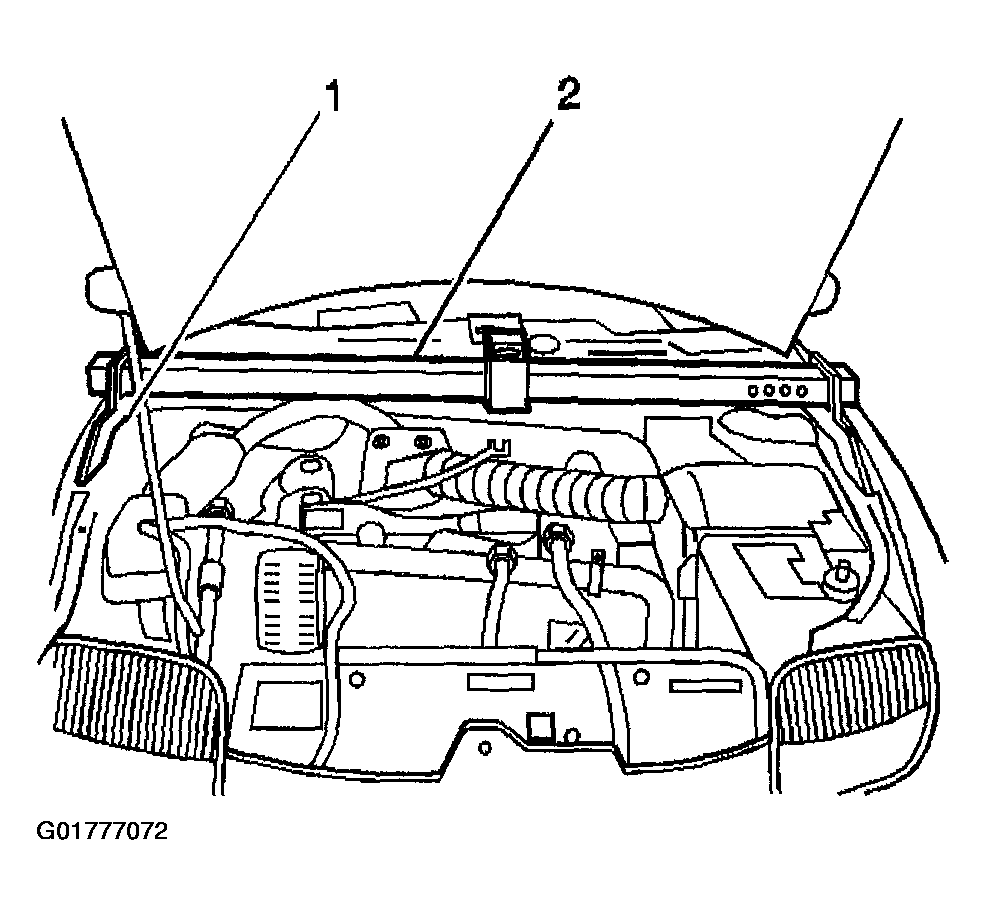

Fig 1: Engine Support Fixture
Courtesy of GENERAL MOTORS CORP.
Install the radiator shelf tube J 28467-2A (1).

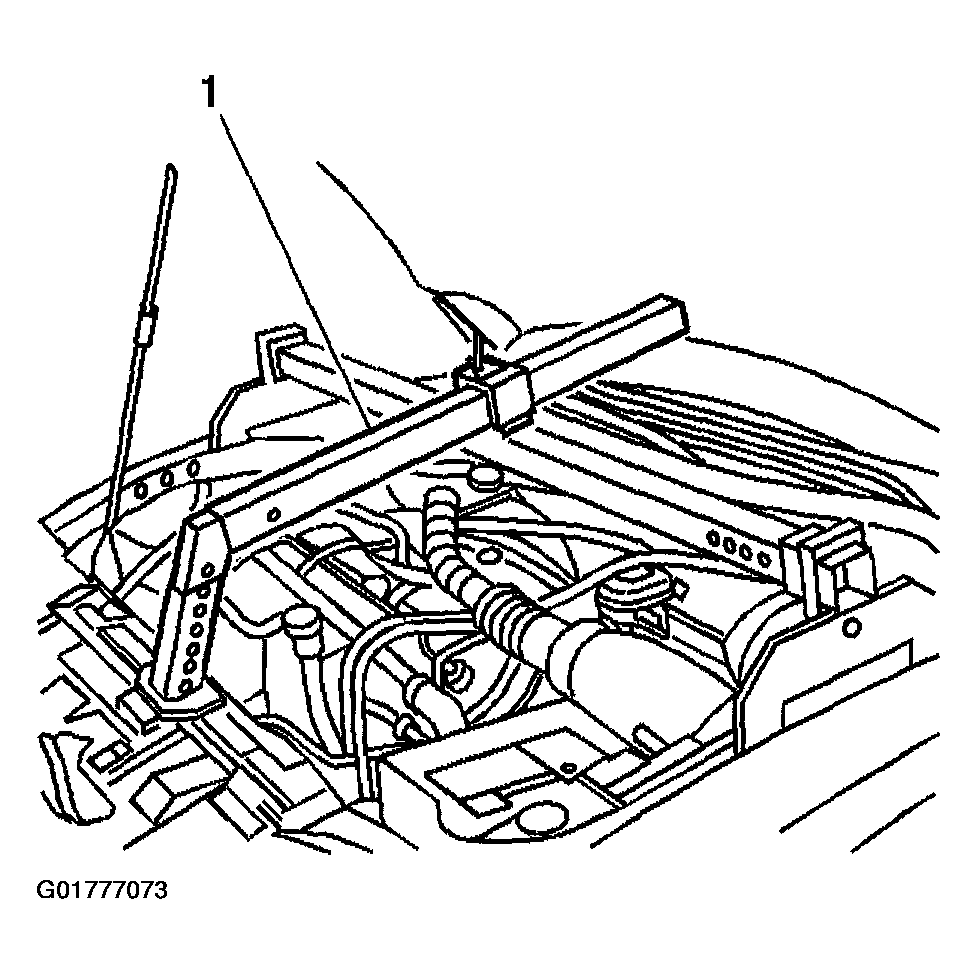

Fig 2: Radiator Shelf Tube J 28467-2A
Courtesy of GENERAL MOTORS CORP.
Install the J 28467-7 lift hook (1) to the front engine lift bracket

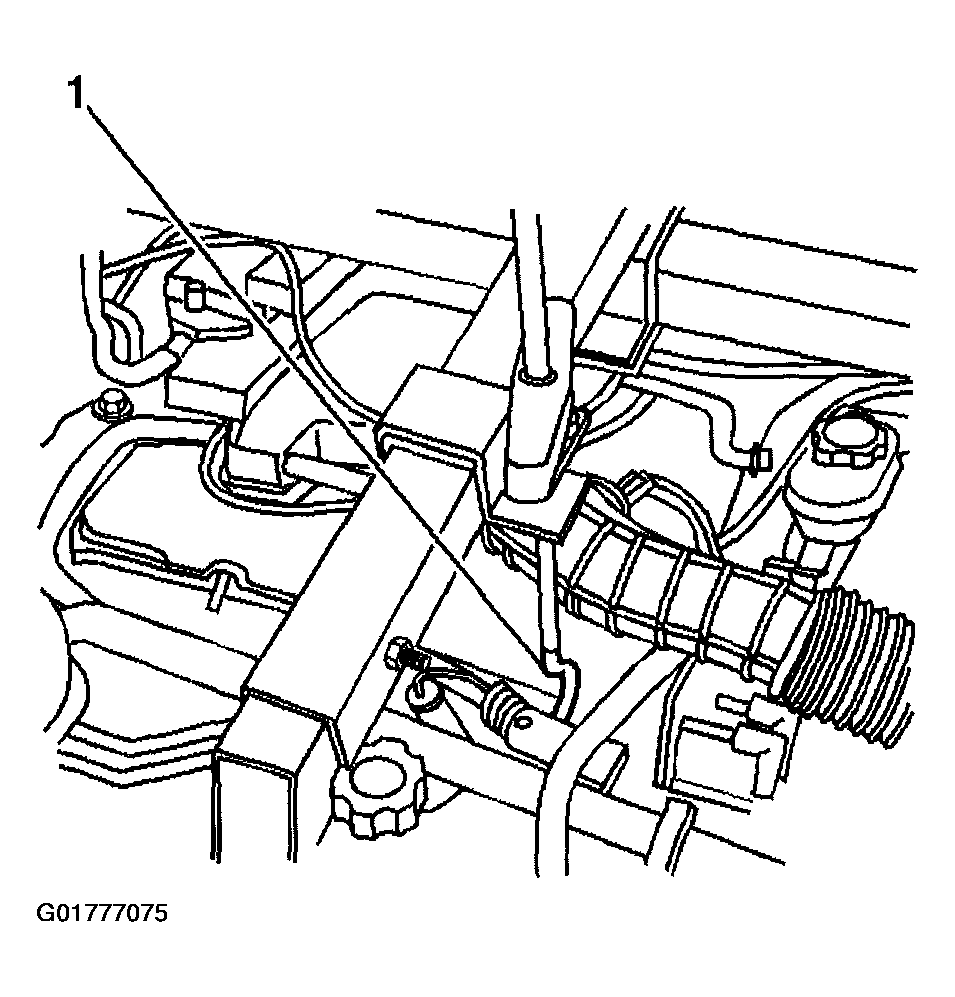

Fig 3: Lift Hook To Front Engine Lift Bracket
Courtesy of GENERAL MOTORS CORP.
Install the J 28467-8 lift hook (1) to the rear engine lift bracket

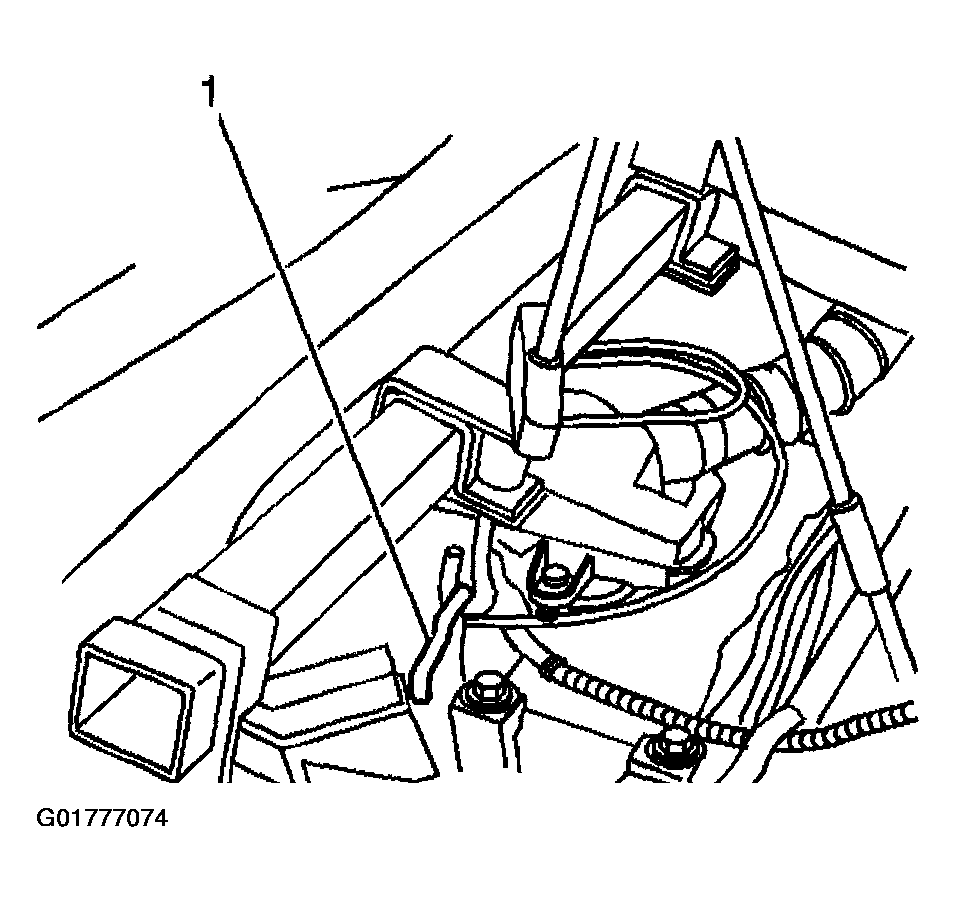

Fig 4: Lift Hook To Rear Engine Lift Bracket
Courtesy of GENERAL MOTORS CORP.
