Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner outlet resonator.
  2. Disconnect the oil pressure electrical connector.
  3. Remove the engine oil pressure sensor (1) using J 35749  .

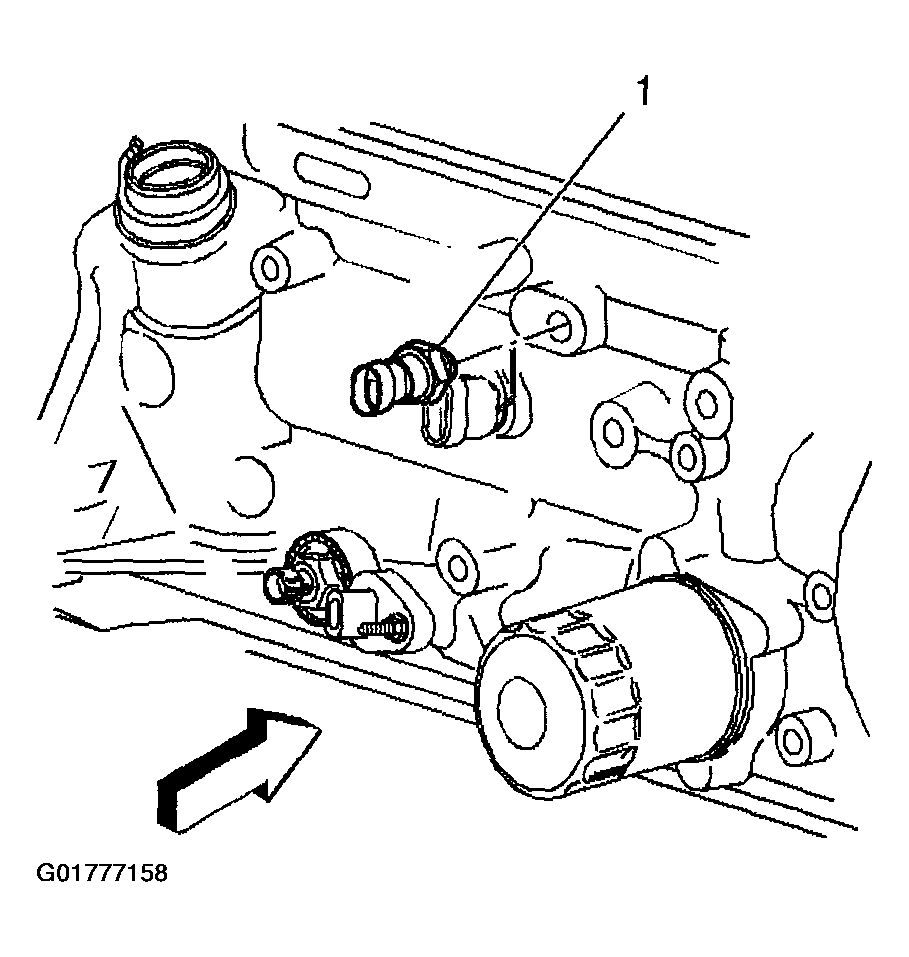

    Fig 1: Engine Oil Pressure Sensor
    G01777158Courtesy of GENERAL MOTORS CORP.
