Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine mount strut. Refer to Engine Mount Strut Replacement .
  2. Remove the A/C compressor with the lines attached and position it aside.
  3. Remove the transmission brace from the engine.
  4. Remove the engine mount strut bracket bolts.
  5. Remove the engine mount strut bracket.

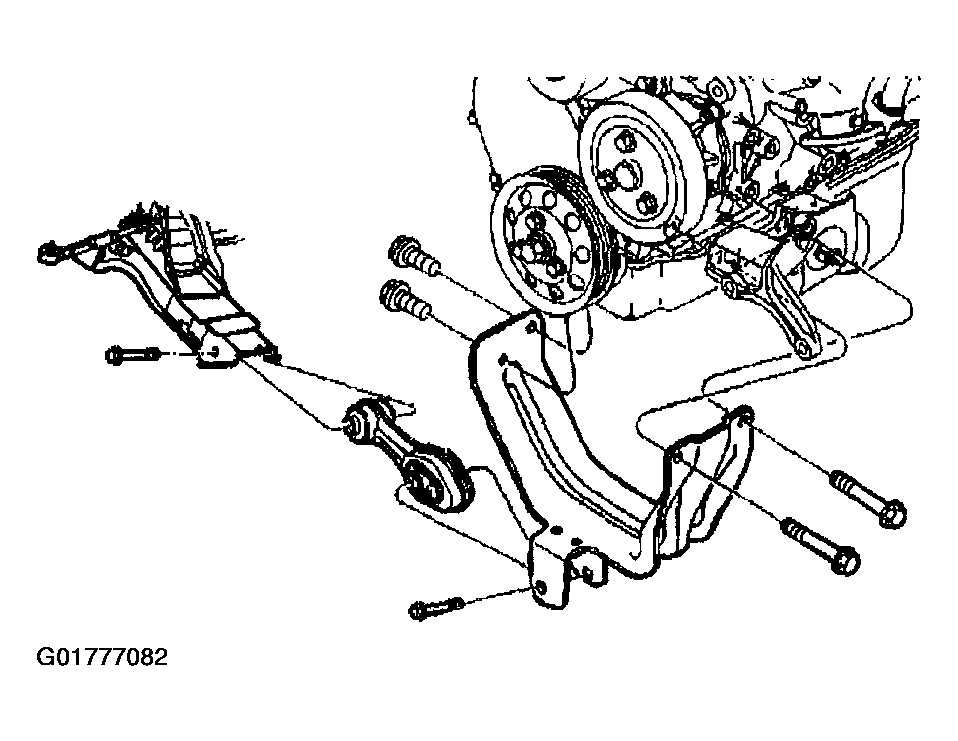

    Fig 1: Engine Mount Strut Bracket
    G01777082Courtesy of GENERAL MOTORS CORP.
