Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the coolant recovery tank mounting bolt.
  2. Remove the coolant recovery tank and position it aside.
  3. Remove the cruise control module mounting nuts and position aside.
  4. Remove mounting nut from both A/C line (1) and position lines out of the way.
  5. Install the J 28467-360  and raise the engine off of the mount.
  6. Remove the nuts holding the mount to the body.
  7. Remove the bolts holding the engine mount to the bracket.
  8. Remove the engine mount assembly.

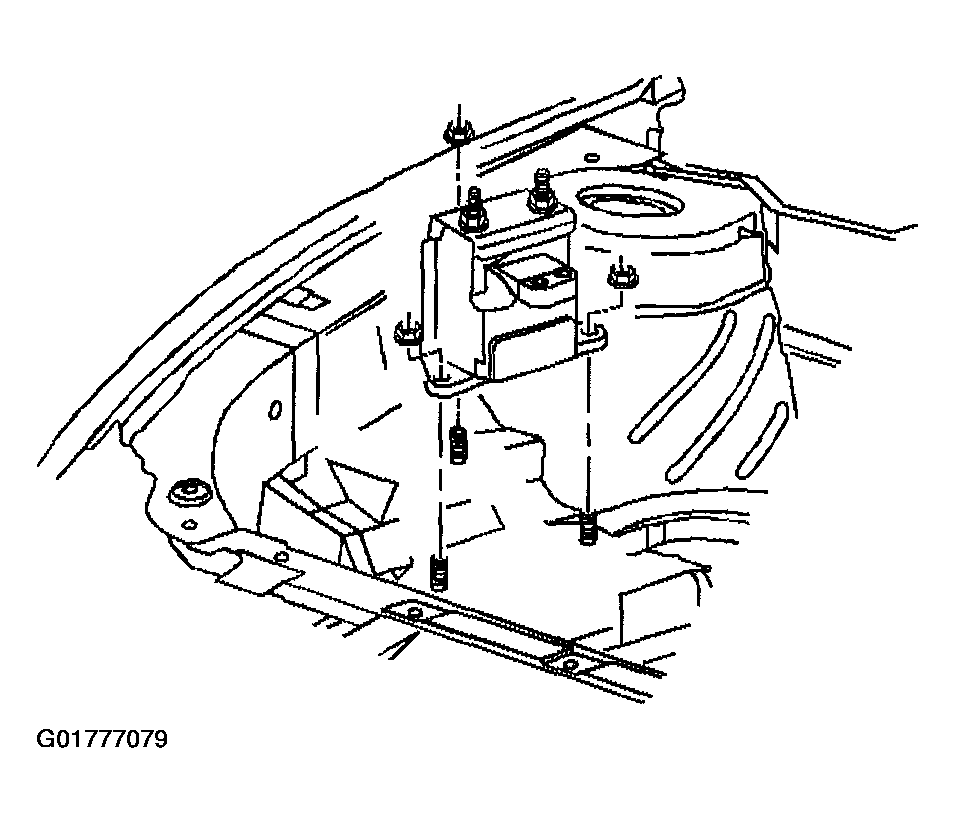

    Fig 1: Engine Mount Assembly
    G01777079Courtesy of GENERAL MOTORS CORP.
