Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove transmission.

    Important:  Mark the relationship of the pressure plate assembly to the flywheel. This will ensure proper balance during assembly.

  3. Remove the clutch and pressure plate for the manual transmission.
  4. Remove the flywheel attaching bolts.
  5. Remove the retainer (automatic transmission only).
  6. Remove the flywheel.
  7. Clean the thread adhesive thoroughly from the flywheel bolts and bolt holes.

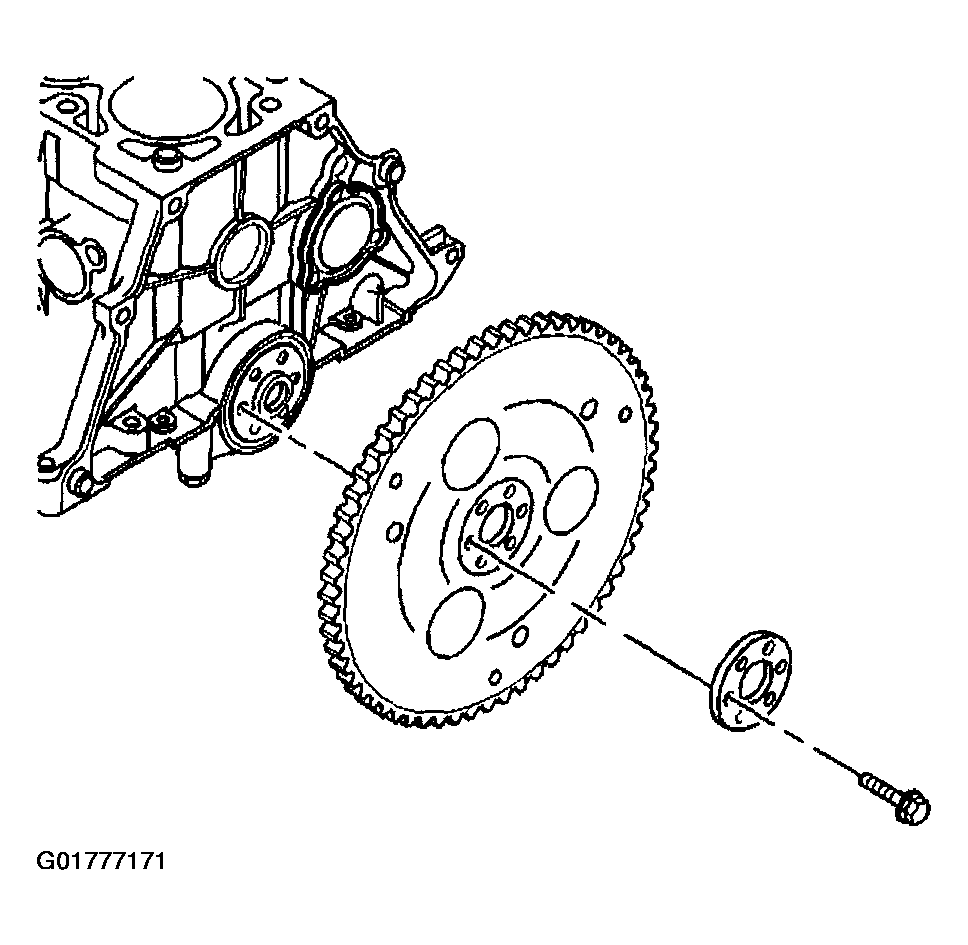

    Fig 1: Flywheel Assembly
    G01777171Courtesy of GENERAL MOTORS CORP.
