Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive belt. Refer to Drive Belt Replacement .
  2. Remove engine mount strut. Refer to Engine Mount Strut Replacement .

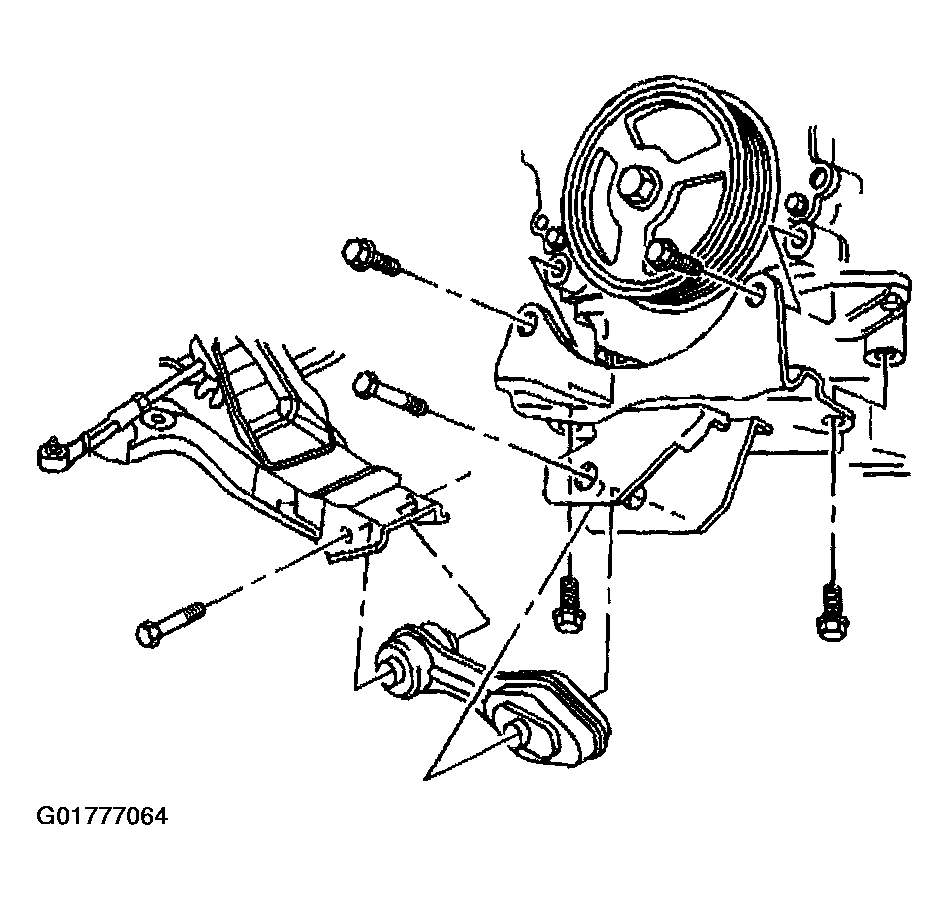

    Fig 1: Engine Mount Strut
    G01777064Courtesy of GENERAL MOTORS CORP.
  3. Remove motor mount. Refer to Engine Mount Replacement .

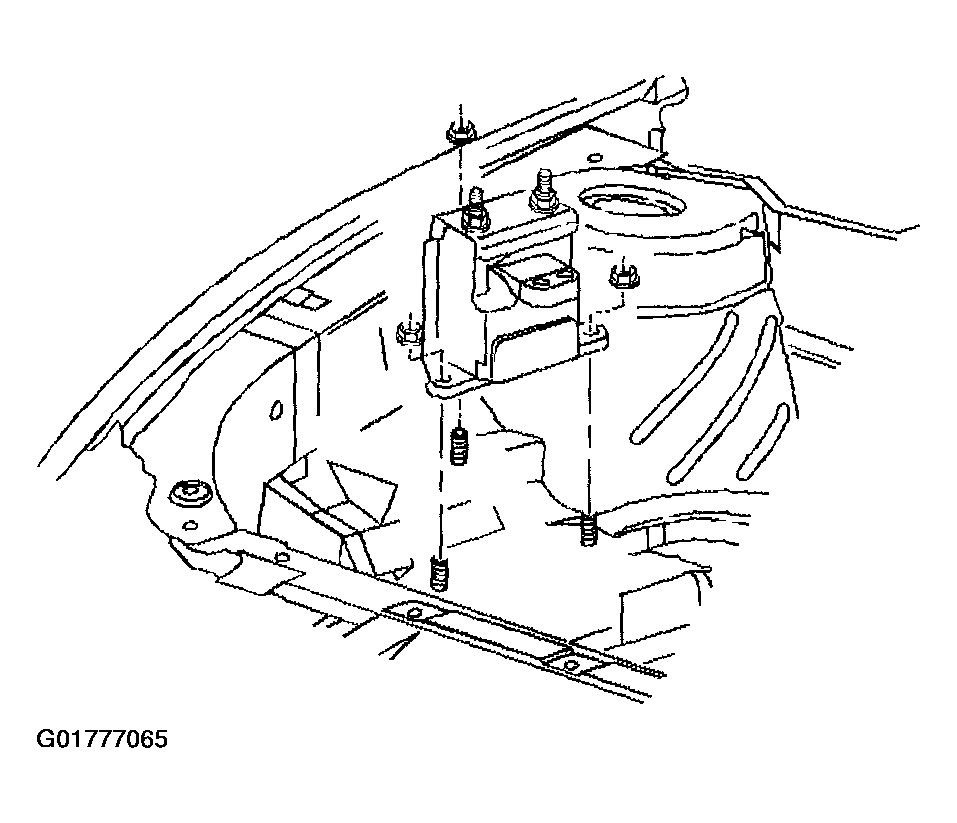

    Fig 2: Motor Mount
    G01777065Courtesy of GENERAL MOTORS CORP.
  4. Raise engine to access tensioner bolt.
  5. Remove tensioner bolt and tensioner

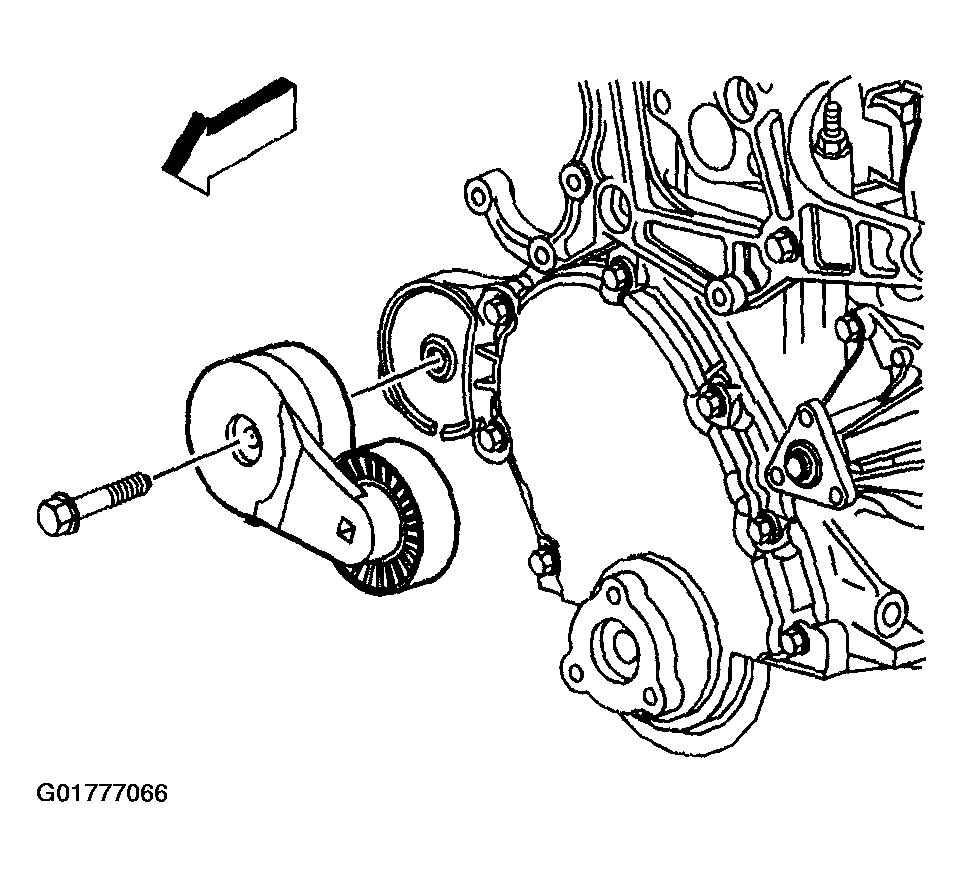

    Fig 3: Belt Tensioner
    G01777066Courtesy of GENERAL MOTORS CORP.
