Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive belt tensioner by lifting or rotating the drive belt tensioner off of the drive belt, using a breaker bar.
  2. Remove the drive belt.

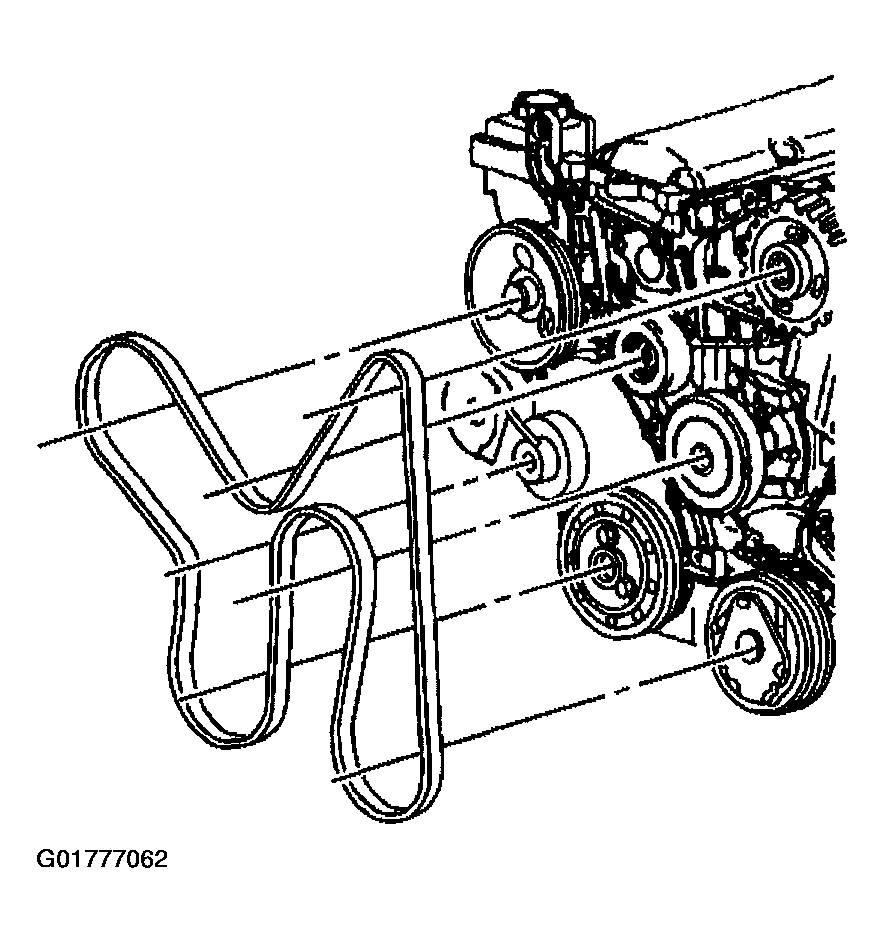

    Fig 1: Drive Belt Routing
    G01777062Courtesy of GENERAL MOTORS CORP.
