Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive belt. Refer to Drive Belt Replacement .
  2. Remove the idler pulley bolt.
  3. Remove the idler pulley.

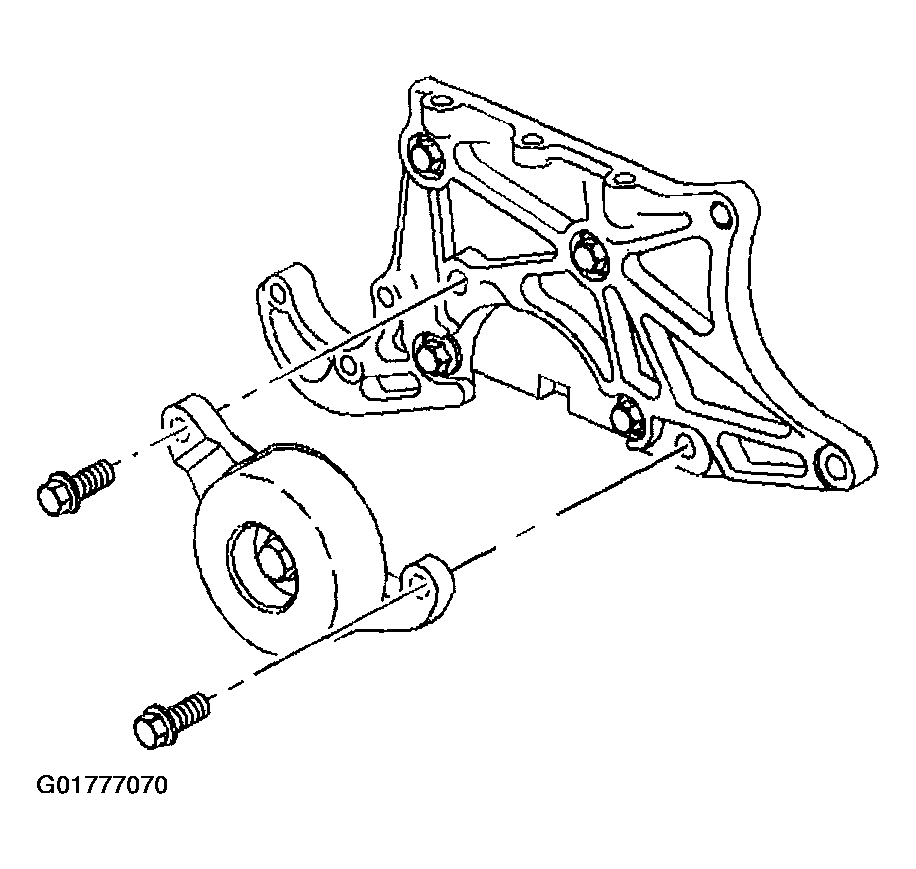

    Fig 1: Idler Pulley
    G01777070Courtesy of GENERAL MOTORS CORP.
