Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the flywheel. Refer to Engine Flywheel Replacement .

    Important:  Take care not to damage the crankshaft seal surface with the pry tool.

  2. Remove the seal by inserting a screwdriver or similar tool in through the dust lip. Pry out the seal by moving the tool around the seal until the seal is removed.

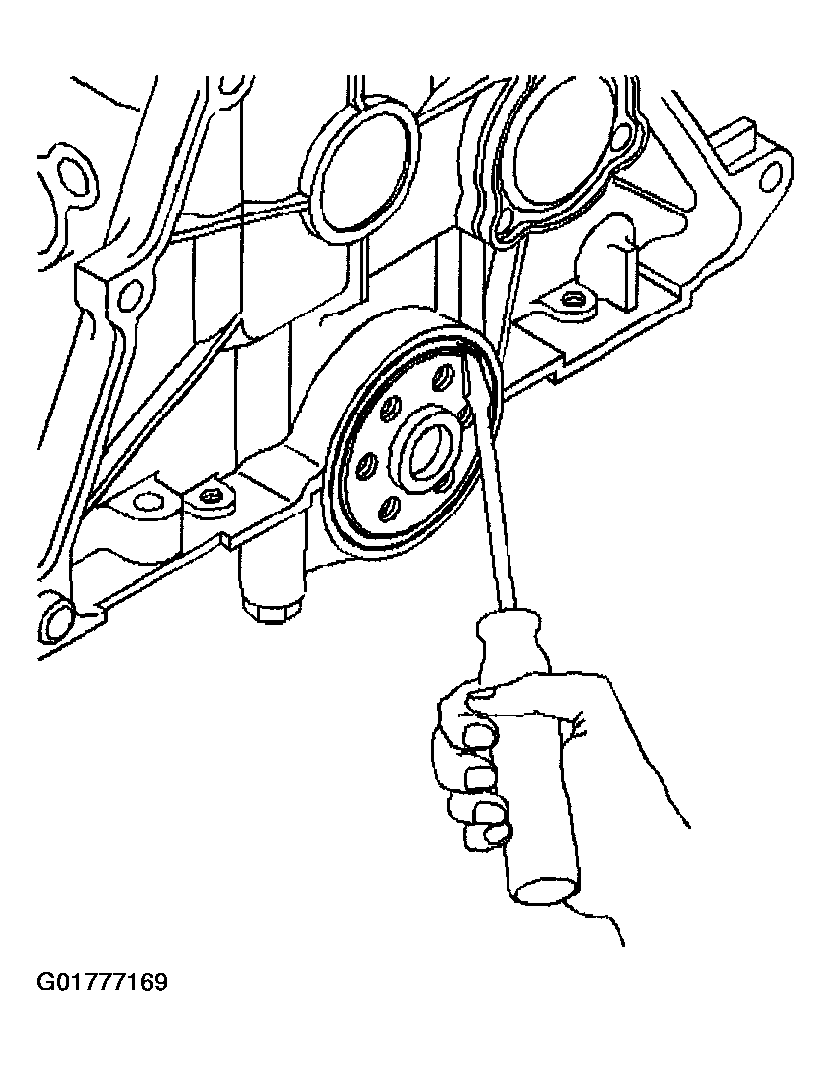

    3. Fig 1: Removing Rear Oil Seal
    G01777169Courtesy of GENERAL MOTORS CORP.
  3. Inspect the bore for nicks or burrs. Correct the bores as required.
