Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft pulley and the crankshaft pulley hub. Refer to Crankshaft Balancer & Hub Replacement .
  2. Remove the oil seal by prying it out with a large screwdriver. Do no damage the seal seat or the crankshaft.

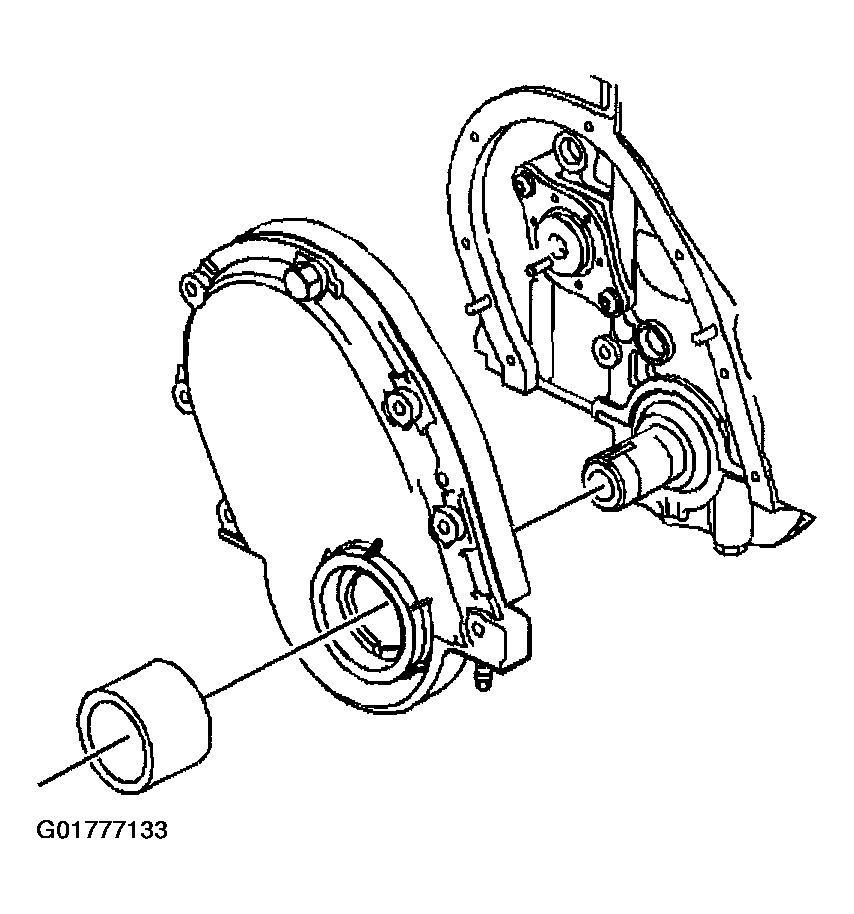

    Fig 1: Removing Oil Seal
    G01777133Courtesy of GENERAL MOTORS CORP.
