Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive belt. Refer to Drive Belt Replacement .
  2. Raise the vehicle.
  3. Remove the right front wheel and tire assembly.
  4. Remove the right engine splash shield.
  5. Remove the crankshaft pulley bolts.
  6. Remove the crankshaft pulley hub bolt.
  7. Remove the crankshaft pulley.

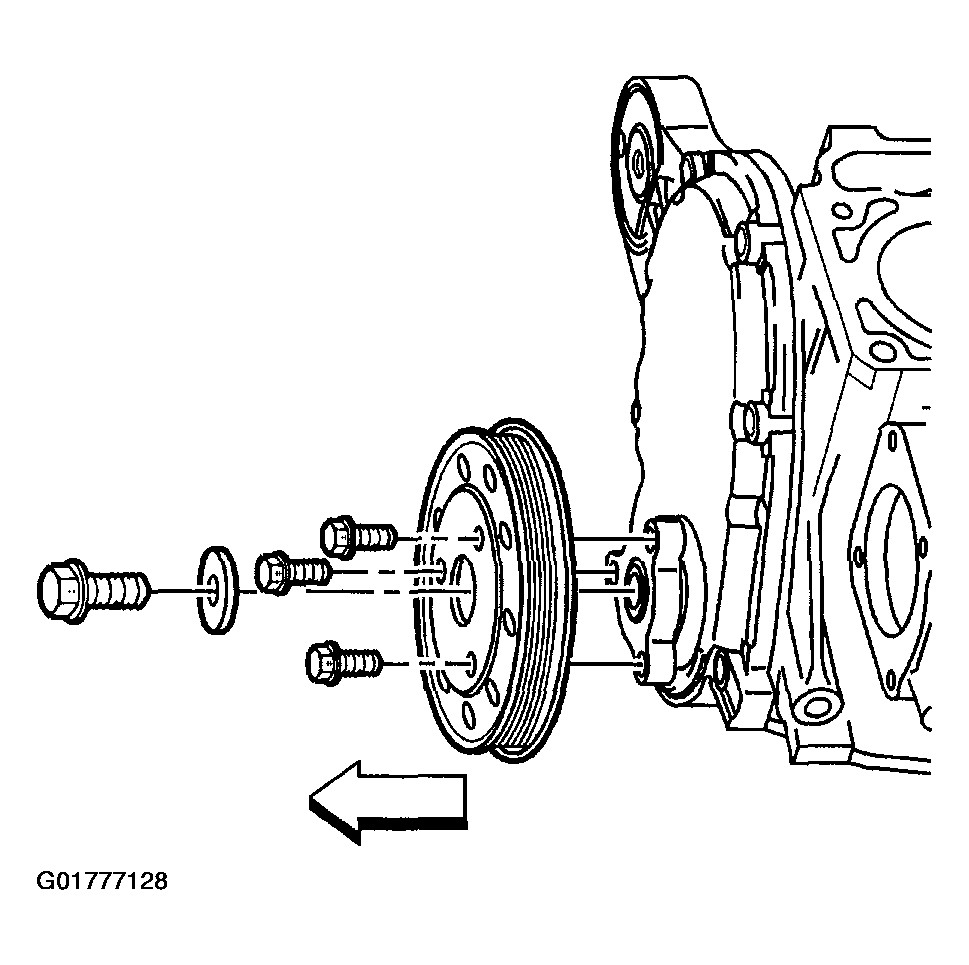

    Fig 1: Crankshaft Pulley
    G01777128Courtesy of GENERAL MOTORS CORP.
  8. Remove the crankshaft pulley hub using J 24420-B  .

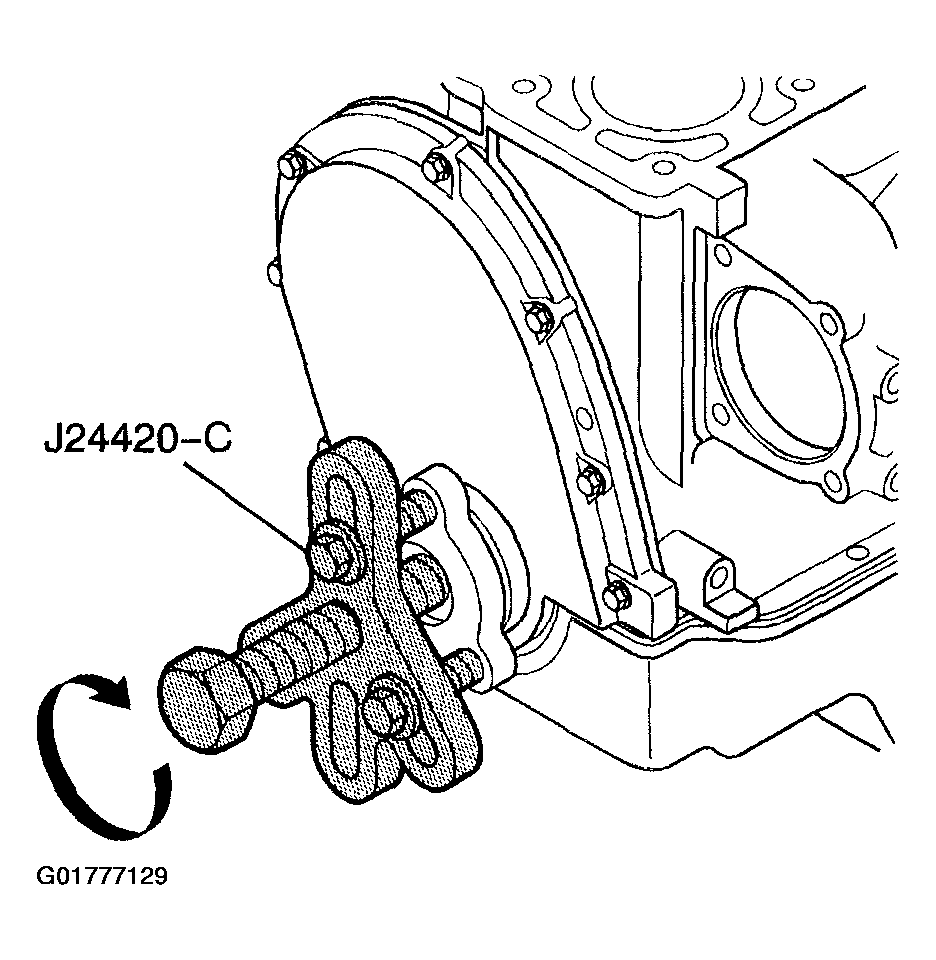

    Fig 2: Removing Crankshaft Pulley Hub Using J 24420-B
    G01777129Courtesy of GENERAL MOTORS CORP.
