Oil Leak Diagnosis

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

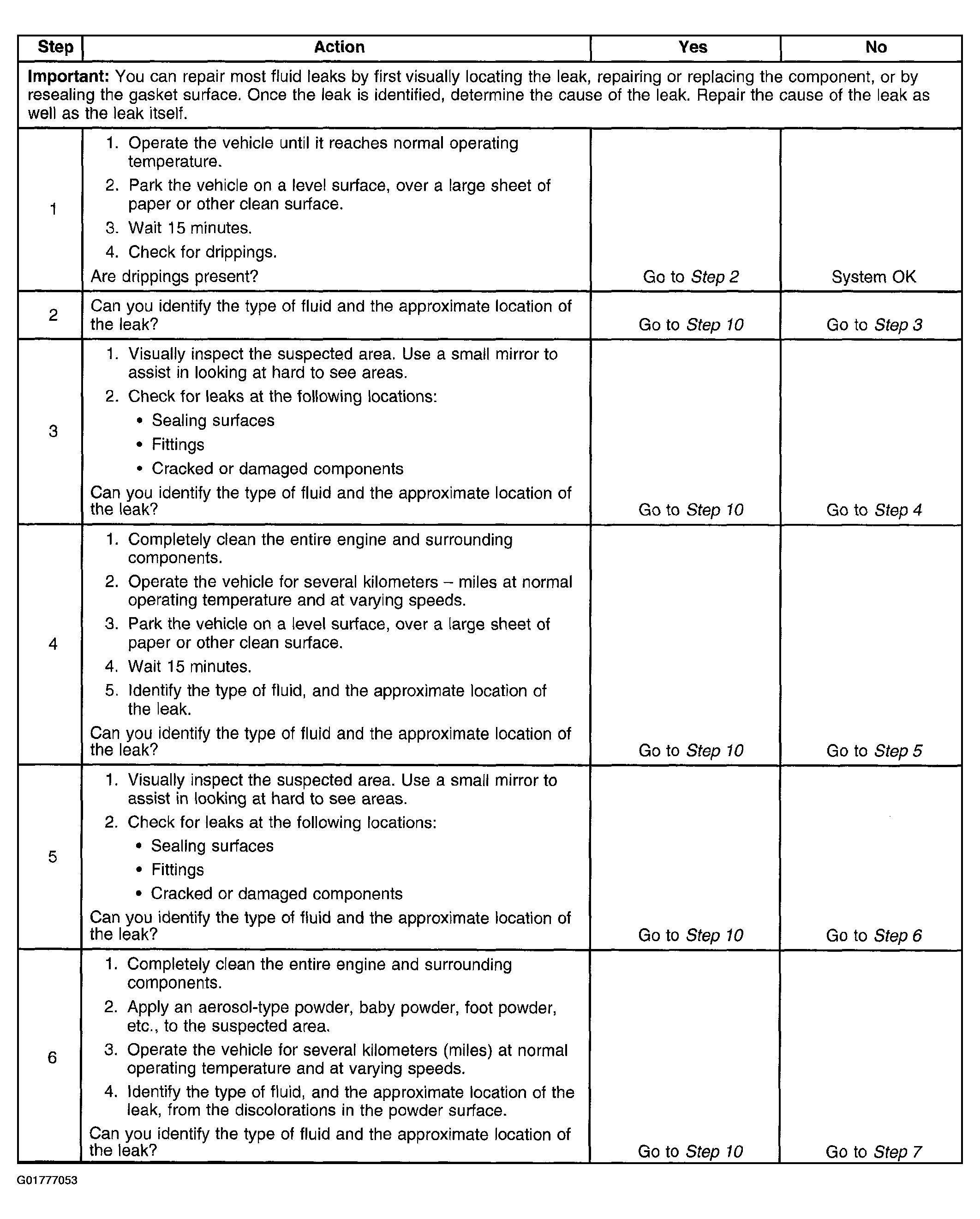

Fig 1: Oil Leak Diagnosis (Steps 1-6)
G01777053Courtesy of GENERAL MOTORS CORP.

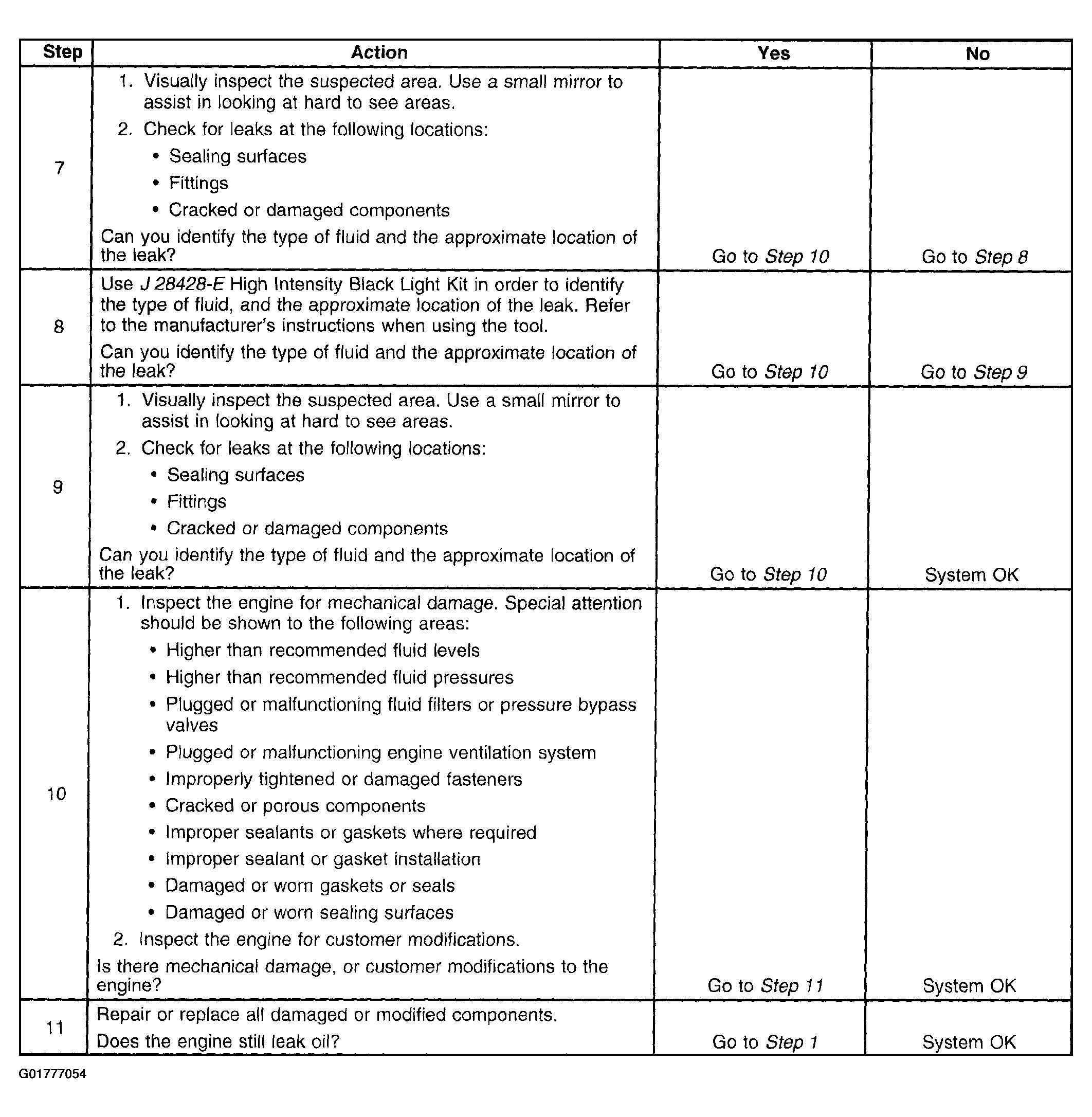

Fig 2: Oil Leak Diagnosis (Steps 7-11)
G01777054Courtesy of GENERAL MOTORS CORP.
