Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Disconnect the negative battery cable from the battery.
  3. Remove the air cleaner mounting bracket.
  4. Remove the push-in retainer (3) from the electrical center.
  5. Remove the electrical center from the inner fender.
  6. Turn the electrical center over and remove the bottom cover.
  7. Remove the four plastic wire retainers.
    NOTE: Note the correct routing of the electrical wiring. Failure to reinstall the wiring properly could result in damage to the wiring.
  8. Label and remove the wires.
  9. Turn the electrical center right side up and remove the fuses and relays.
  10. Remove the electrical center from the vehicle.

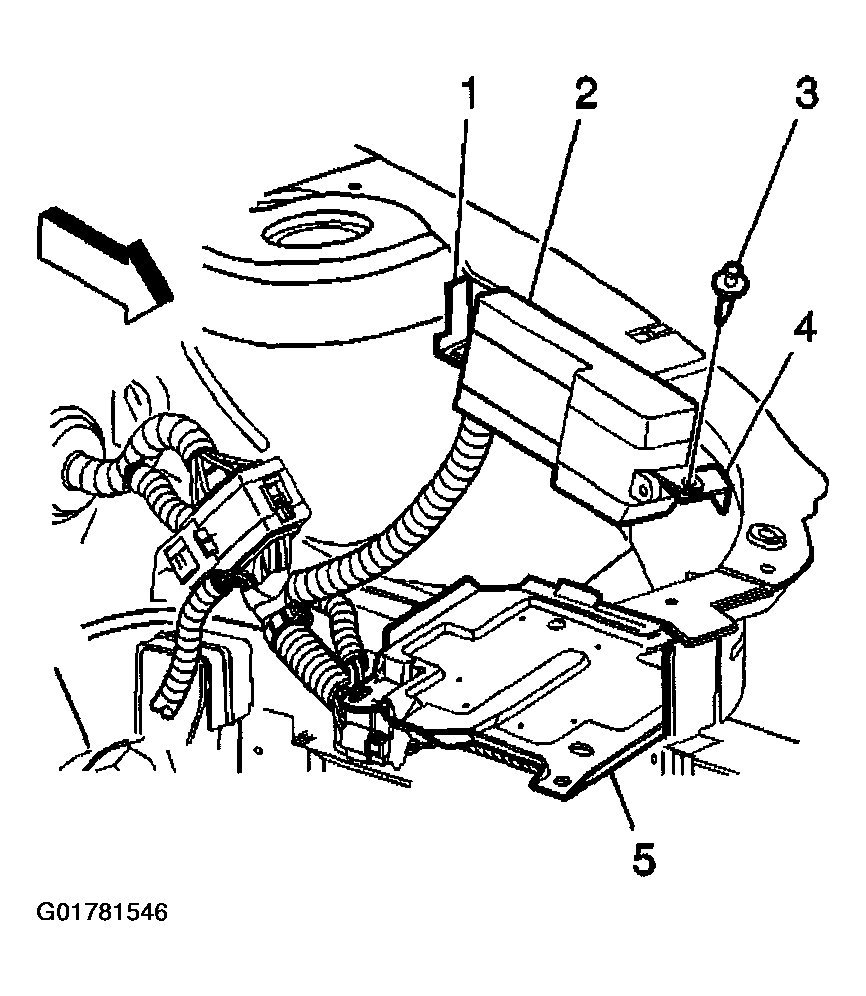

    Fig 1: Locating Electrical Center
    G01781546Courtesy of GENERAL MOTORS CORP.
