Passenger Car Zoning

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

All grounds, in-line connectors, pass-through grommets, and splices have identifying numbers that correspond to where they are located in the vehicle. The following table explains the numbering system.

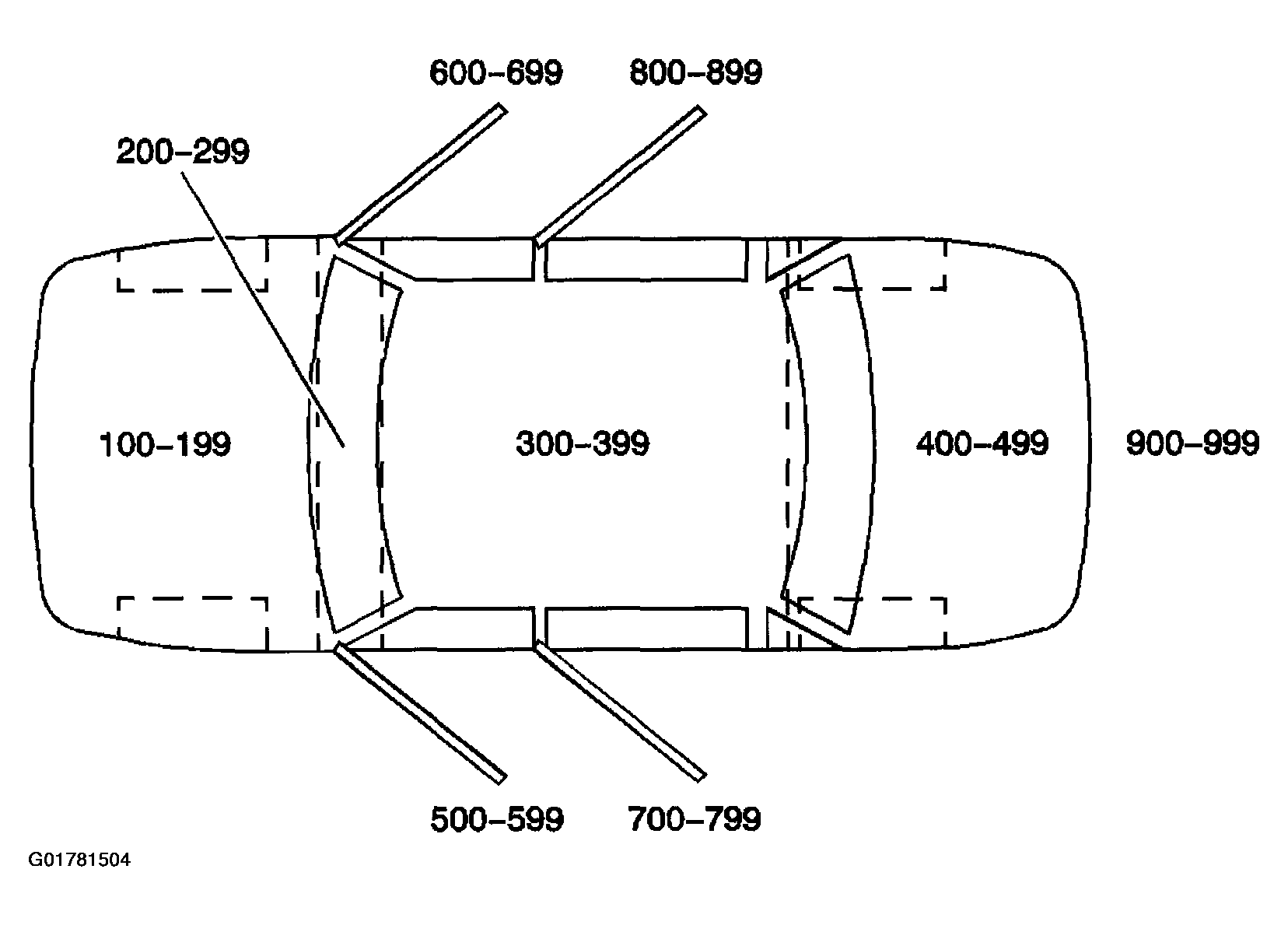

Fig 1: Vehicle Zoning Chart

Courtesy of GENERAL MOTORS CORP.

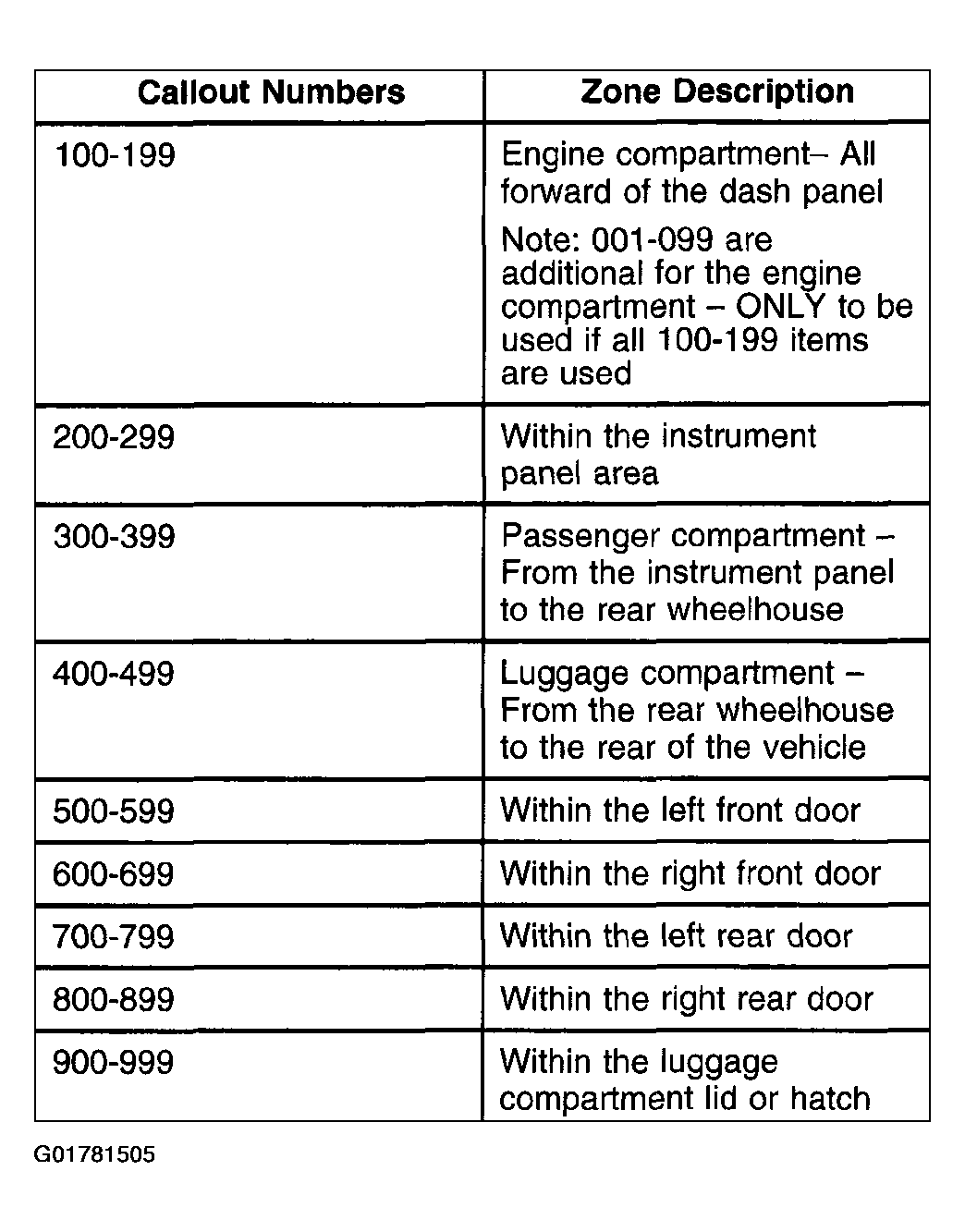

Fig 2: Vehicle Zoning Table

Courtesy of GENERAL MOTORS CORP.
