Electrical Symbols

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

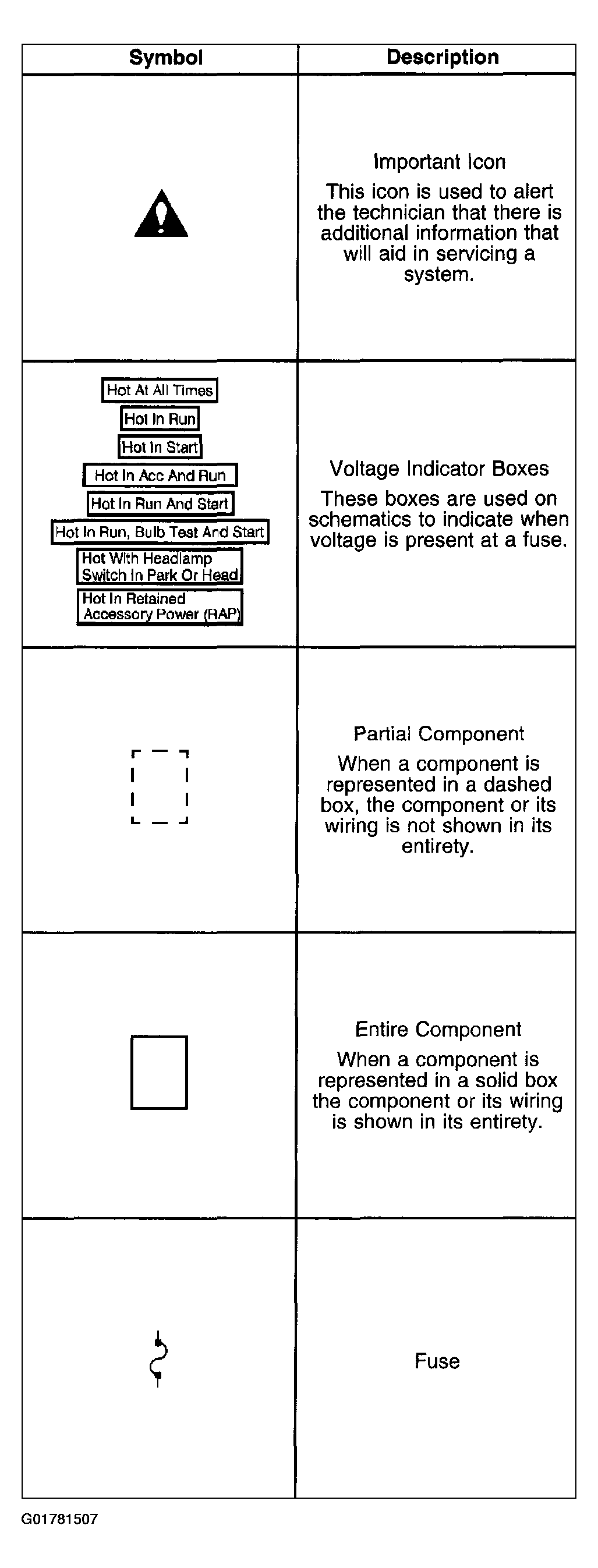

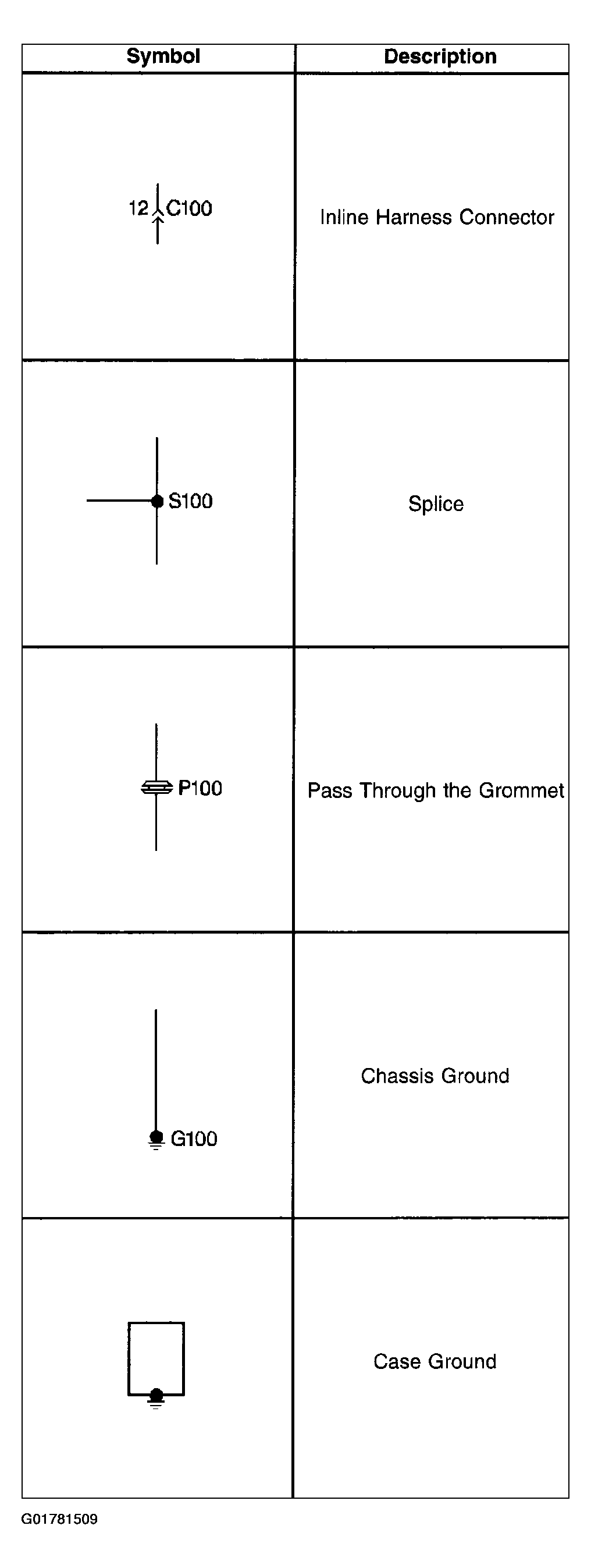

Fig 1: Electrical Symbols (1 Of 9)

Courtesy of GENERAL MOTORS CORP.

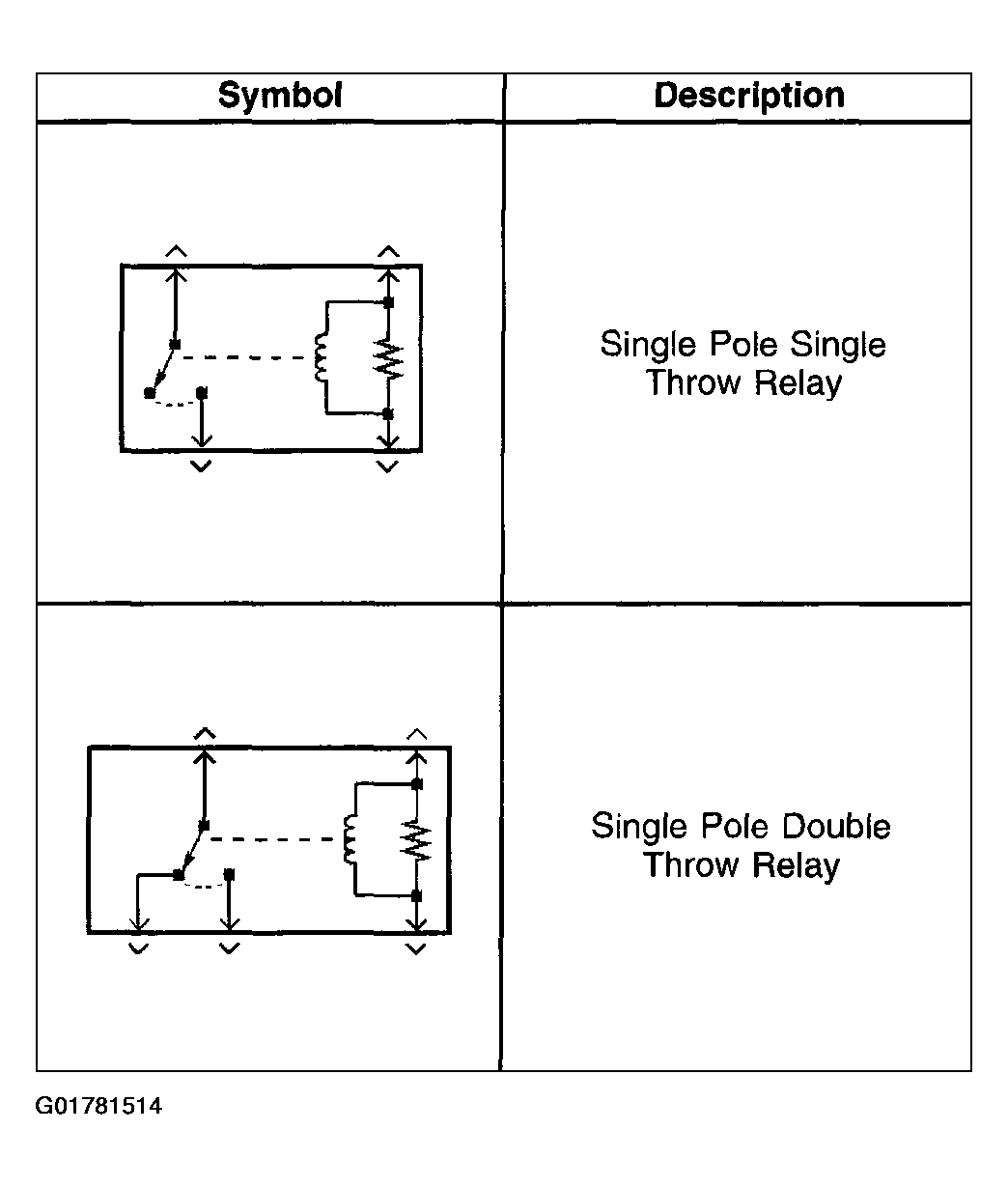

Fig 2: Electrical Symbols (2 Of 9)

Courtesy of GENERAL MOTORS CORP.

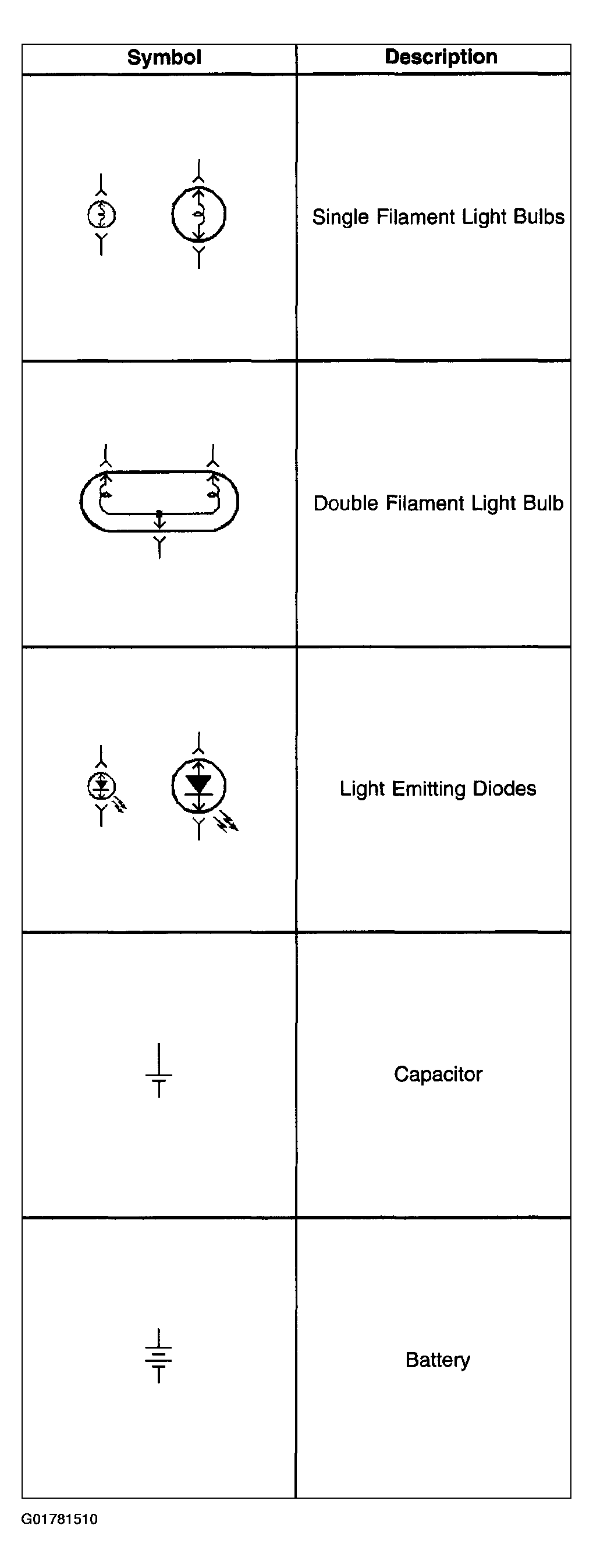

Fig 3: Electrical Symbols (3 Of 9)

Courtesy of GENERAL MOTORS CORP.

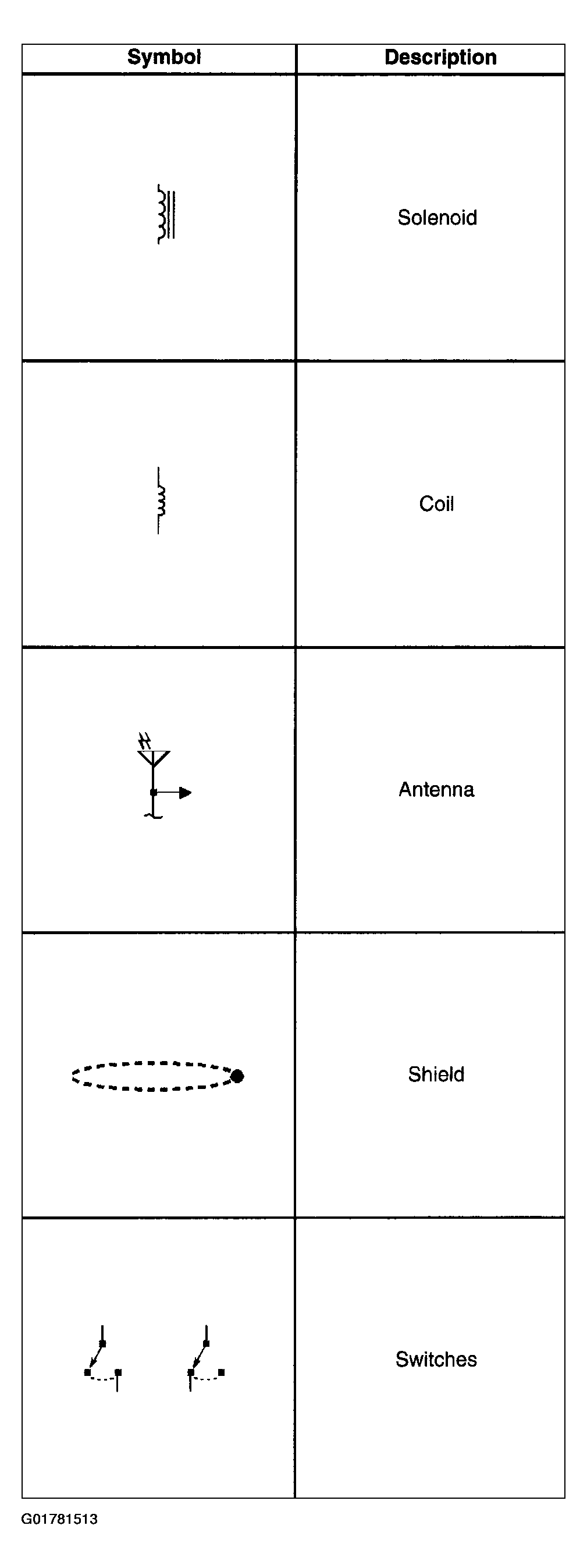

Fig 4: Electrical Symbols (4 Of 9)

Courtesy of GENERAL MOTORS CORP.

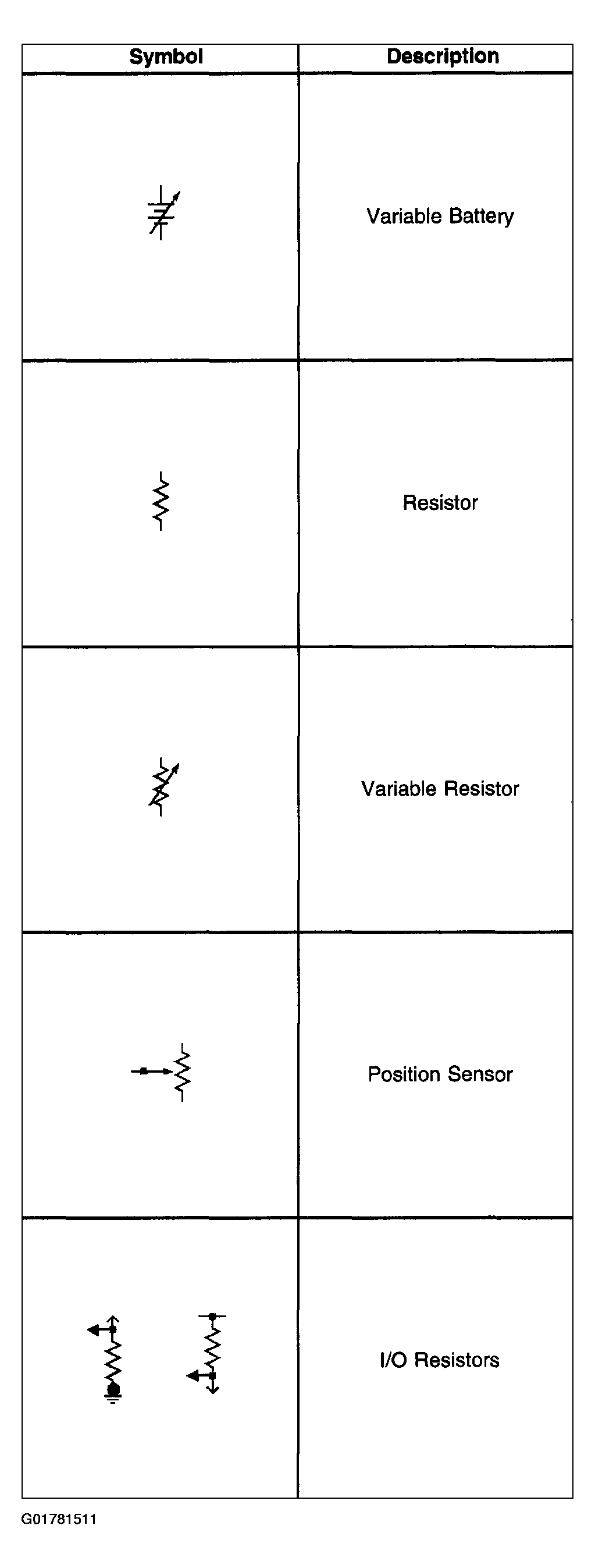

Fig 5: Electrical Symbols (5 Of 9)

Courtesy of GENERAL MOTORS CORP.

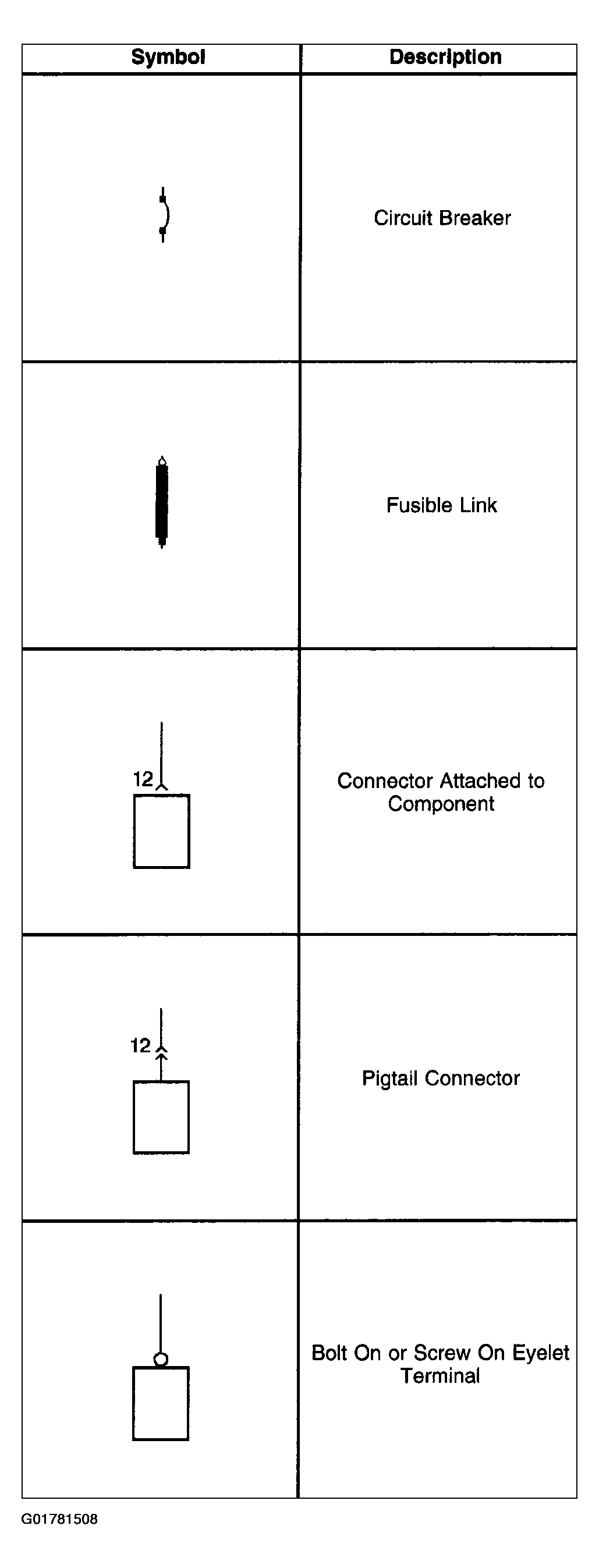

Fig 6: Electrical Symbols (6 Of 9)

Courtesy of GENERAL MOTORS CORP.

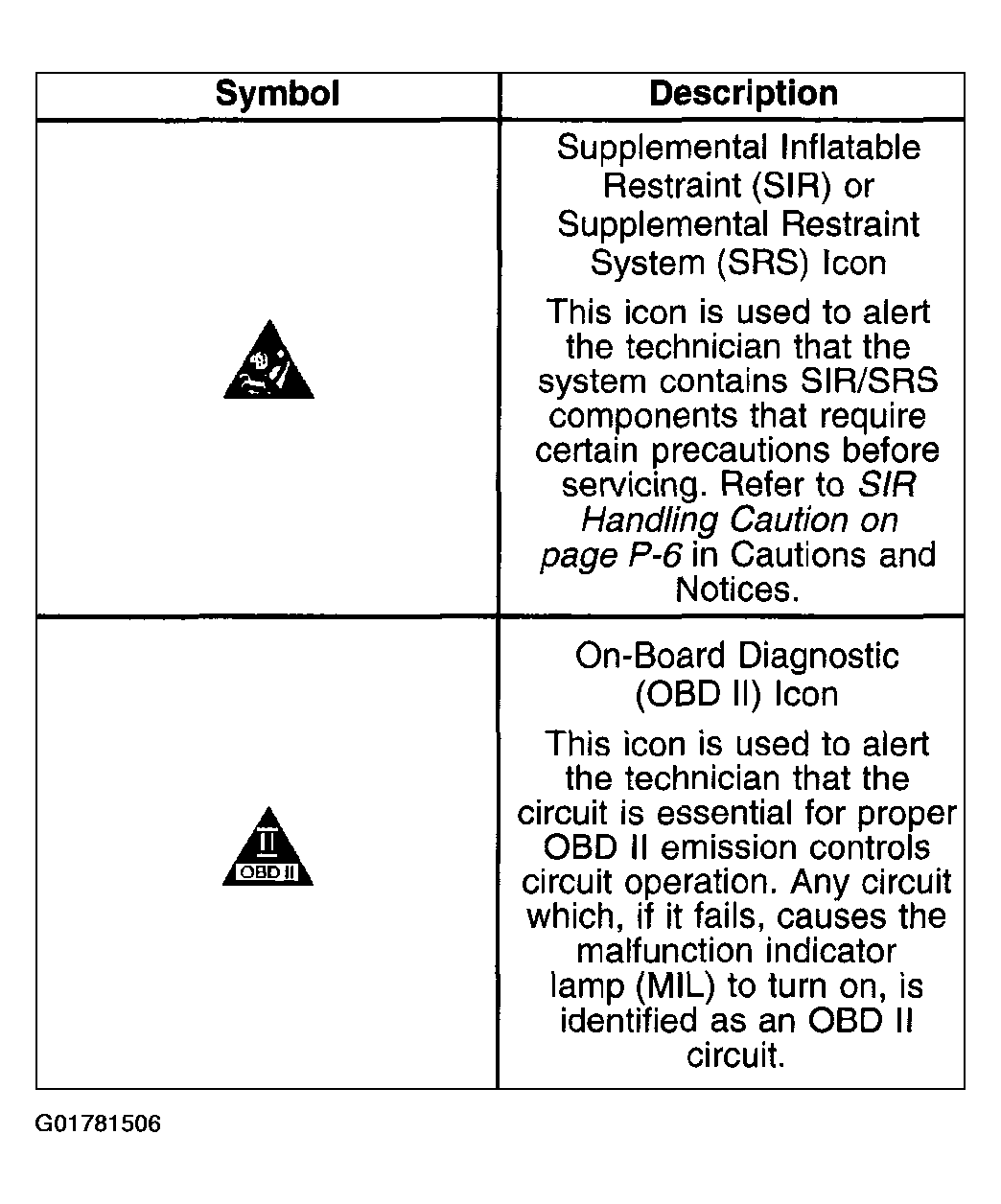

Fig 7: Electrical Symbols (7 Of 9)

Courtesy of GENERAL MOTORS CORP.

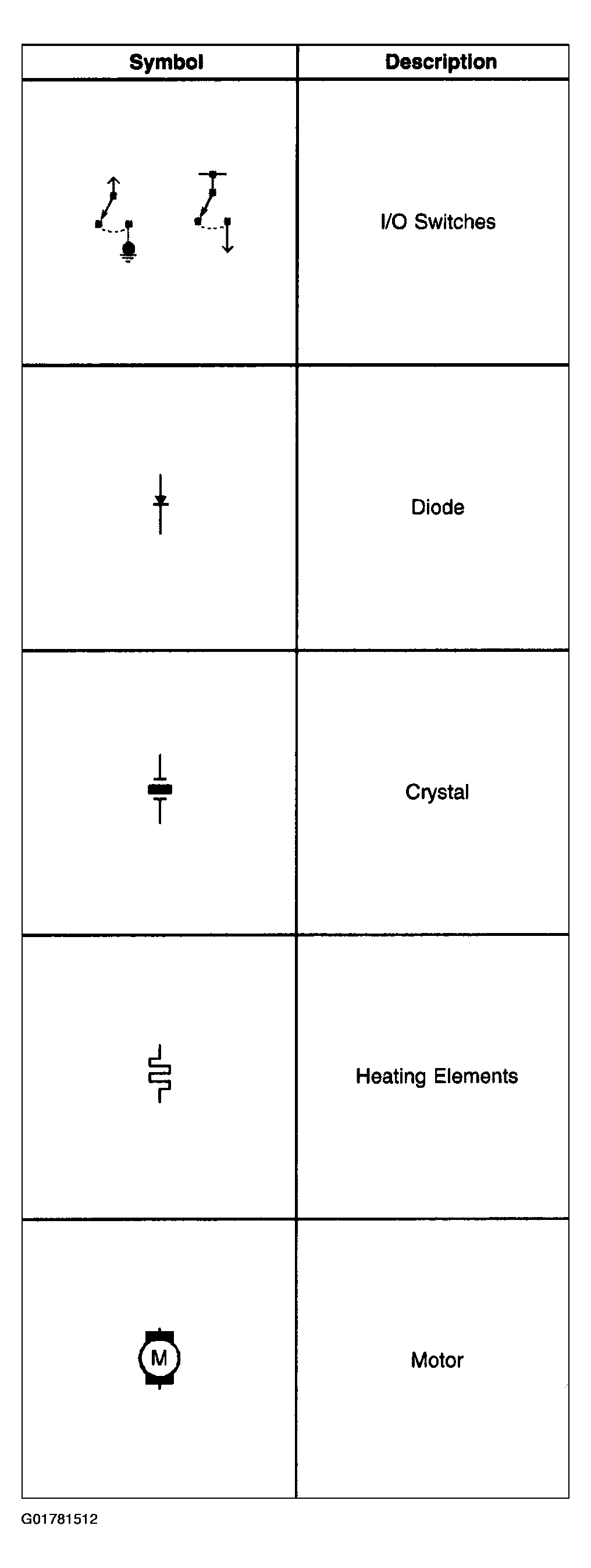

Fig 8: Electrical Symbols (8 Of 9)

Courtesy of GENERAL MOTORS CORP.

Fig 9: Electrical Symbols (9 Of 9)

Courtesy of GENERAL MOTORS CORP.
