Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the exhaust manifold heat shield.

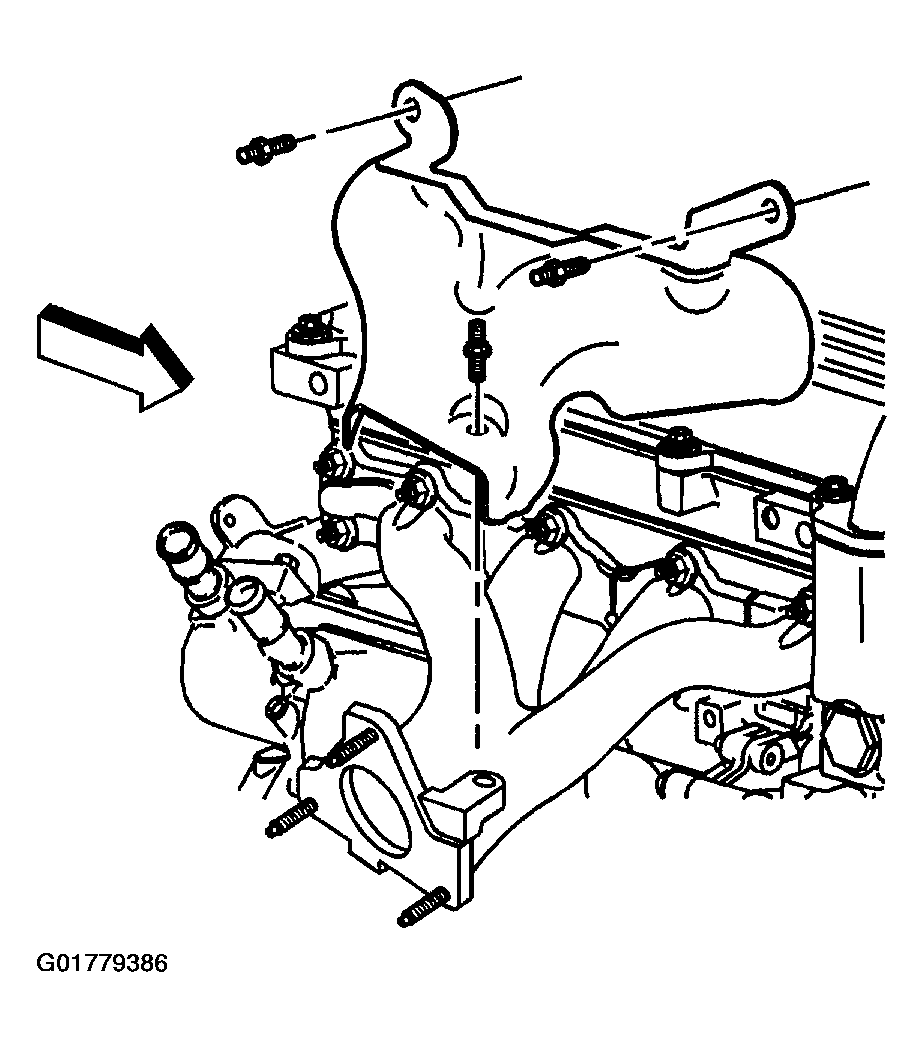

    Fig 1: Exhaust Manifold Heat Shield
    G01779386Courtesy of GENERAL MOTORS CORP.
  3. Remove the oxygen sensor.

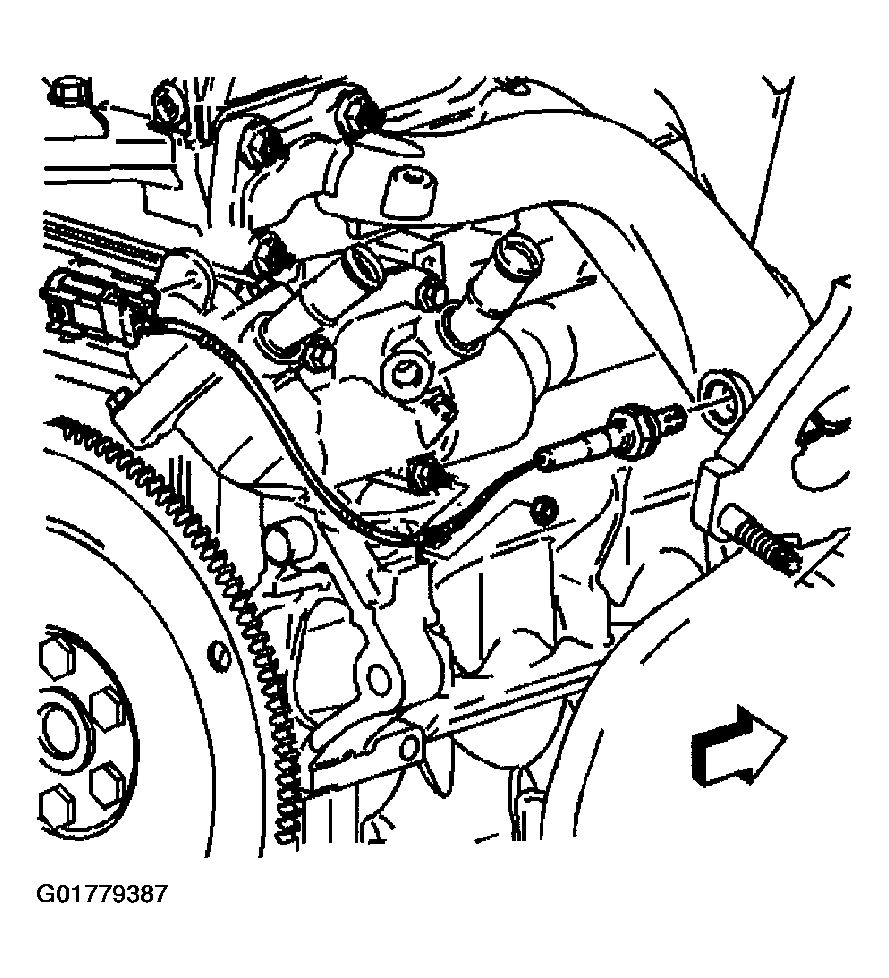

    4. Fig 2: Oxygen Sensor
    G01779387Courtesy of GENERAL MOTORS CORP.
  4. Raise and support the vehicle.
    NOTE: Do not bend the exhaust flex decoupler more than 3 degrees in any direction. Movement of more than 3 degrees will damage the exhaust flex decoupler.
  5. Remove the pipe to manifold nuts (3).
  6. Pull down and back on the exhaust pipe in order to disengage the pipe from the exhaust manifold.

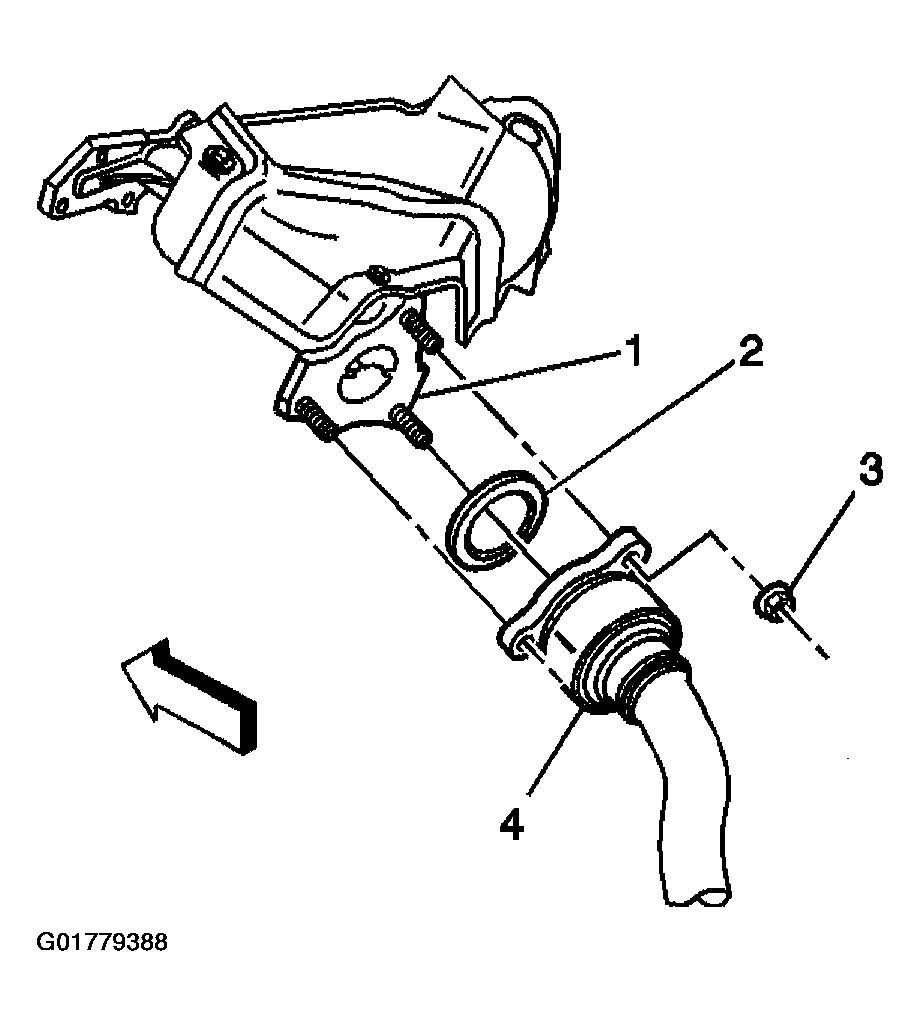

    7. Fig 3: Exhaust Pipe-To-Manifold
    G01779388Courtesy of GENERAL MOTORS CORP.
  7. Lower the vehicle.
  8. Remove the exhaust manifold to cylinder head nuts.
  9. Remove the exhaust manifold.

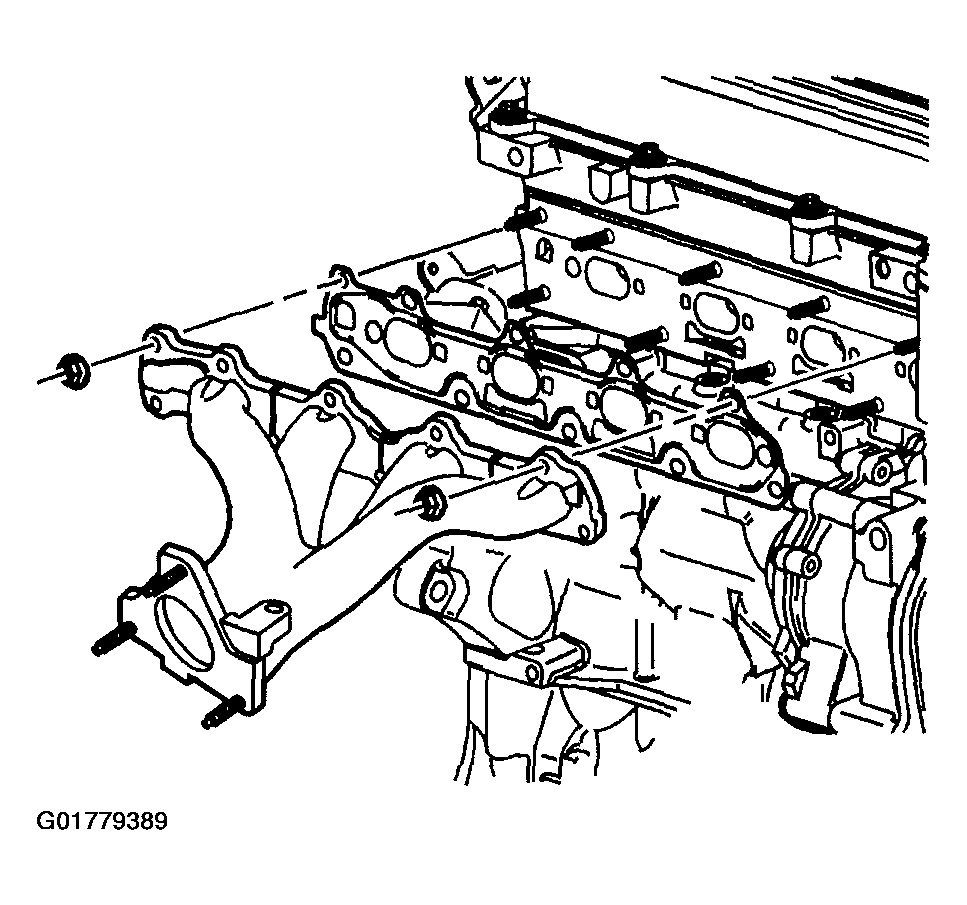

    10. Fig 4: Exhaust Manifold & Gasket Assembly
    G01779389Courtesy of GENERAL MOTORS CORP.
  10. Clean all the sealing surfaces.
