Oil Pump - Removal

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the balance shaft chain cover.
  2. Remove the balance shaft chain guide.

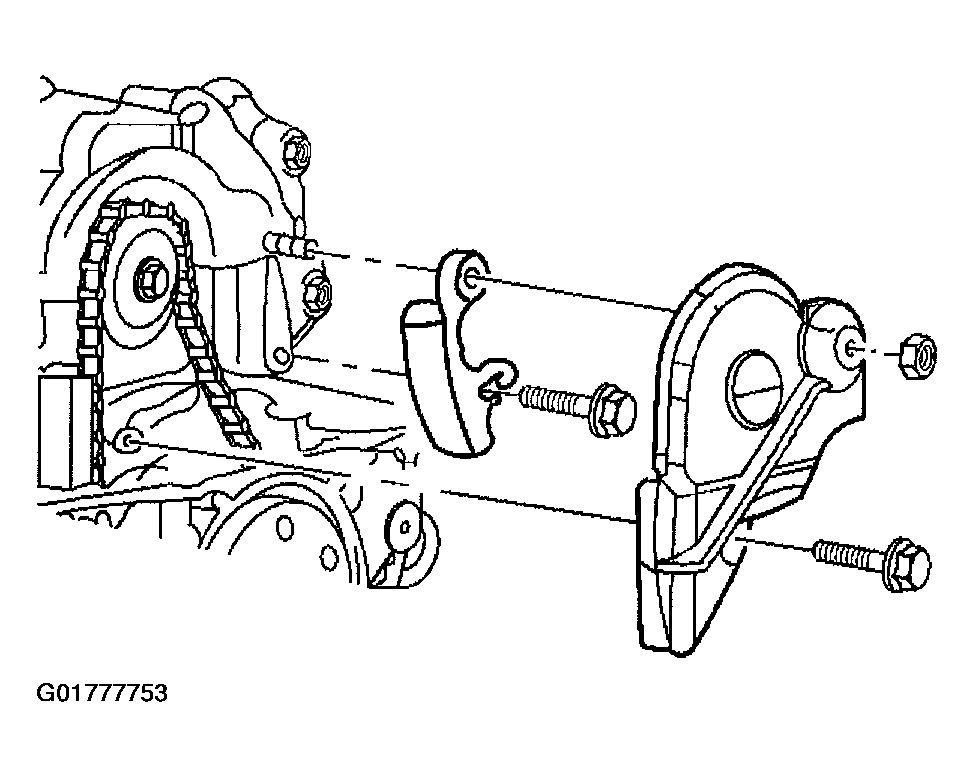

    3. Fig 1: Balance Shaft Chain Guide
    G01777753Courtesy of GENERAL MOTORS CORP.
  3. Remove the oil pump bolts.
  4. Remove the oil pump cover.

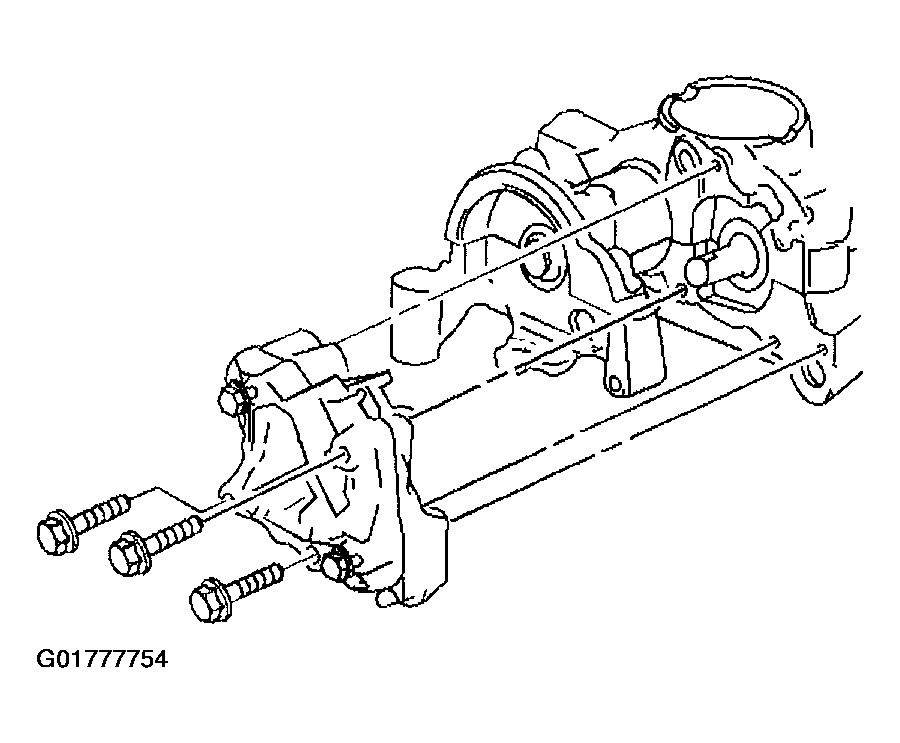

    Fig 2: Oil Pump Cover
    G01777754Courtesy of GENERAL MOTORS CORP.
  5. Remove the oil pump from the balance shaft assembly.
    Fig 3: Oil Pump Assembly
    G01777755Courtesy of GENERAL MOTORS CORP.
