Oil Pump - Assemble

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the gerotor gears with clean engine oil.
  2. Assemble the gerotor in the housing.
    NOTE: Fill oil pump cavities with petroleum jelly prior to installation. This will ensure that there is oil pressure immediately on start-up and will prevent engine damage.
  3. Fill the oil pump with petroleum jelly to prime the oil pump.
    Fig 1: Oil Pump Components
    G01777827Courtesy of GENERAL MOTORS CORP.
  4. Assemble the pressure relief valve.

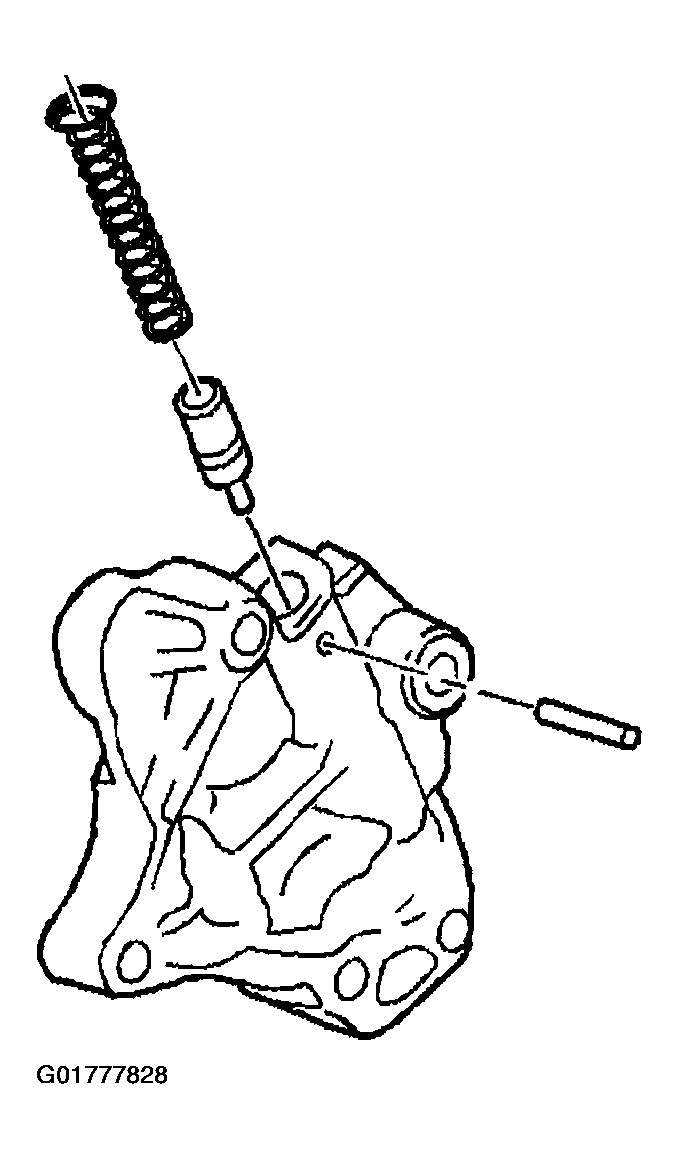

    Fig 2: Oil Pump Pressure Relief Valve
    G01777828Courtesy of GENERAL MOTORS CORP.
  5. Assemble the pump housing to the balance shaft assembly.
  6. Assemble the pump cover to the oil pump housing.

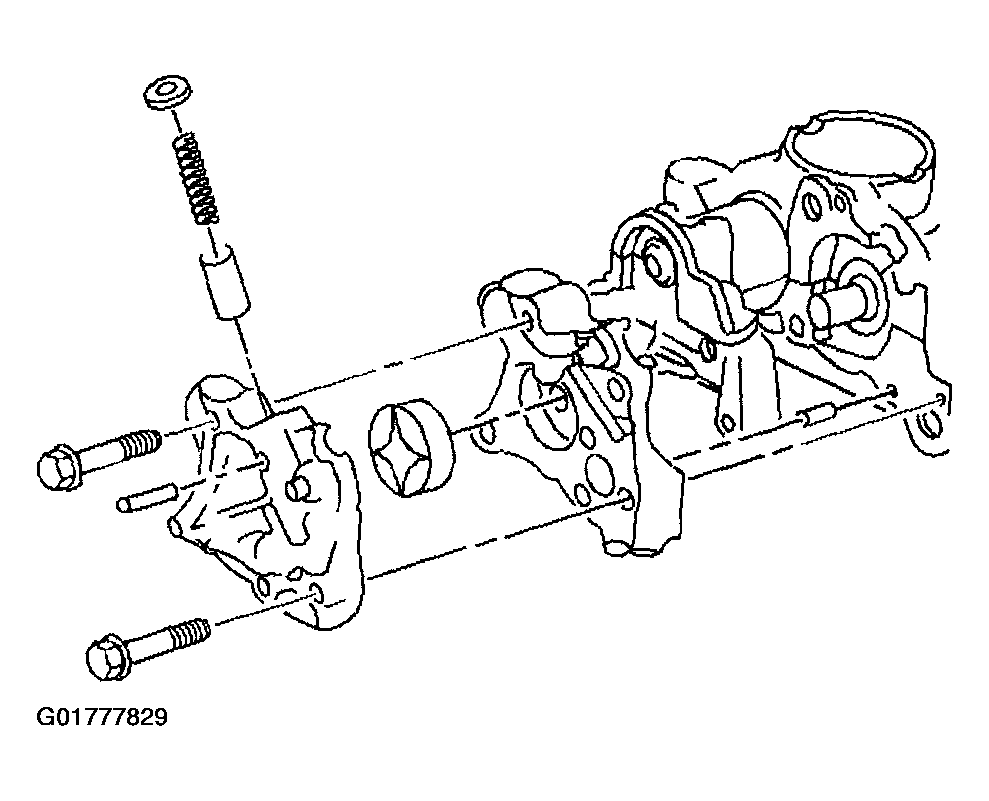

    Fig 3: Pump Cover-To-Oil Pump Housing
    G01777829Courtesy of GENERAL MOTORS CORP.
