Oil Pan - Removal

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pan bolts.
  2. Remove the oil pan. Reuse the oil pan gasket if the pan is not damaged.
  3. Inspect the oil pan gasket for damage before reusing the gasket. Replace the gasket if necessary.

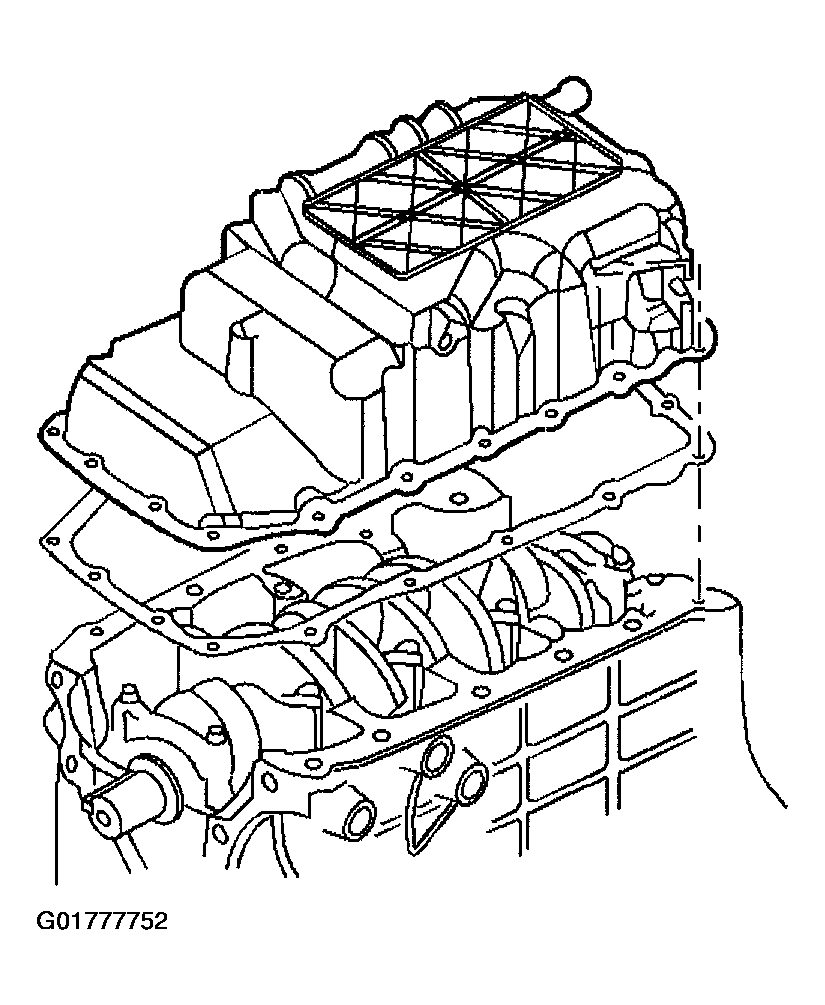

    Fig 1: Oil Pan Assembly
    G01777752Courtesy of GENERAL MOTORS CORP.
