Oil Level Indicator & Tube - Removal

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the tube bracket to the rear cam carrier lift bracket bolt.
  2. Remove the tube from the block.

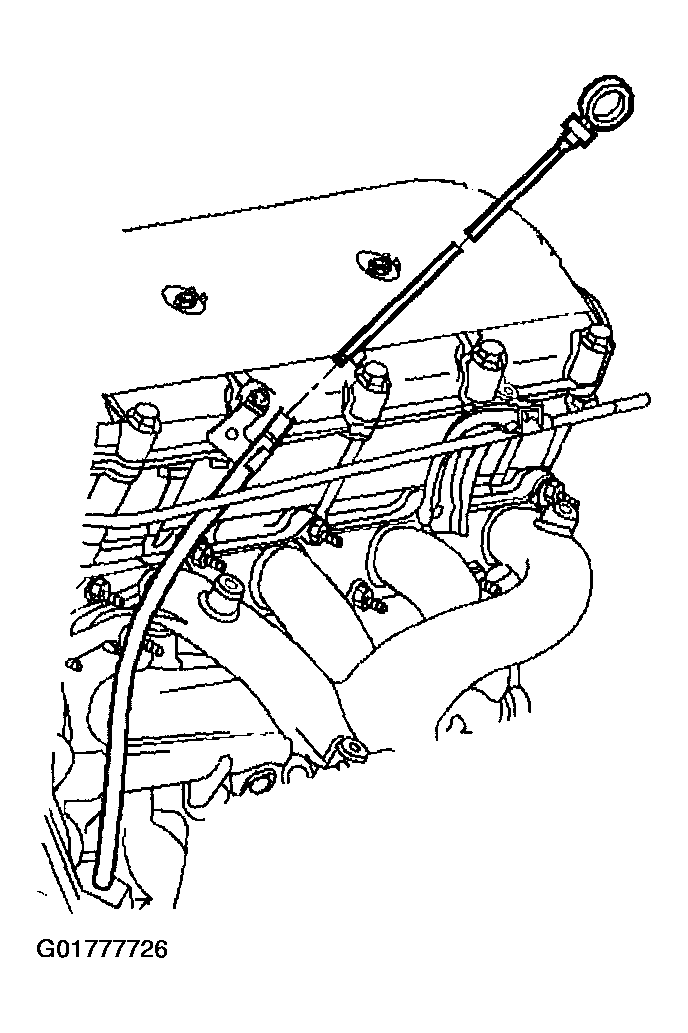

    Fig 1: Oil Level Indicator Tube
    G01777726Courtesy of GENERAL MOTORS CORP.
