Exhaust Manifold - Removal

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the exhaust manifold heat shield, if the exhaust manifold is being replaced.

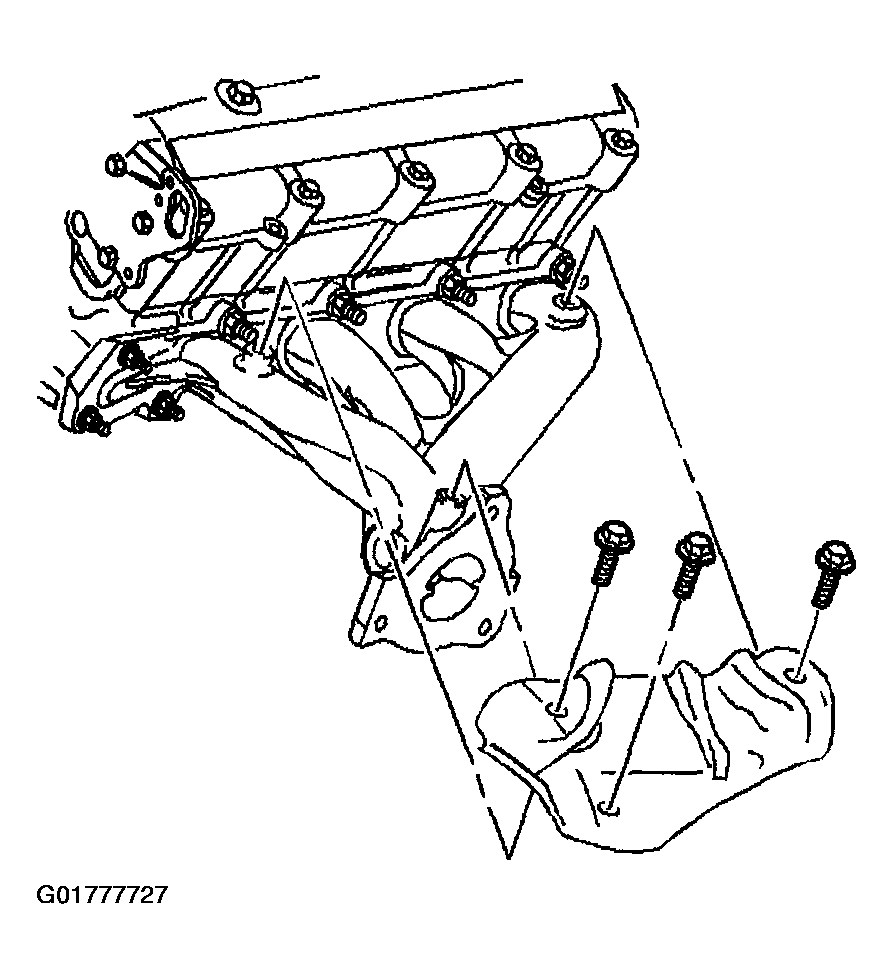

    Fig 1: Exhaust Manifold Assembly
    G01777727Courtesy of GENERAL MOTORS CORP.
  2. Remove the exhaust manifold to the cylinder head retaining nuts.
  3. Remove the exhaust manifold.
  4. Clean all of the sealing surfaces.
  5. If the exhaust manifold is being replaced, transfer the following parts:
    • The exhaust manifold nuts.
    • The exhaust manifold heat shield.

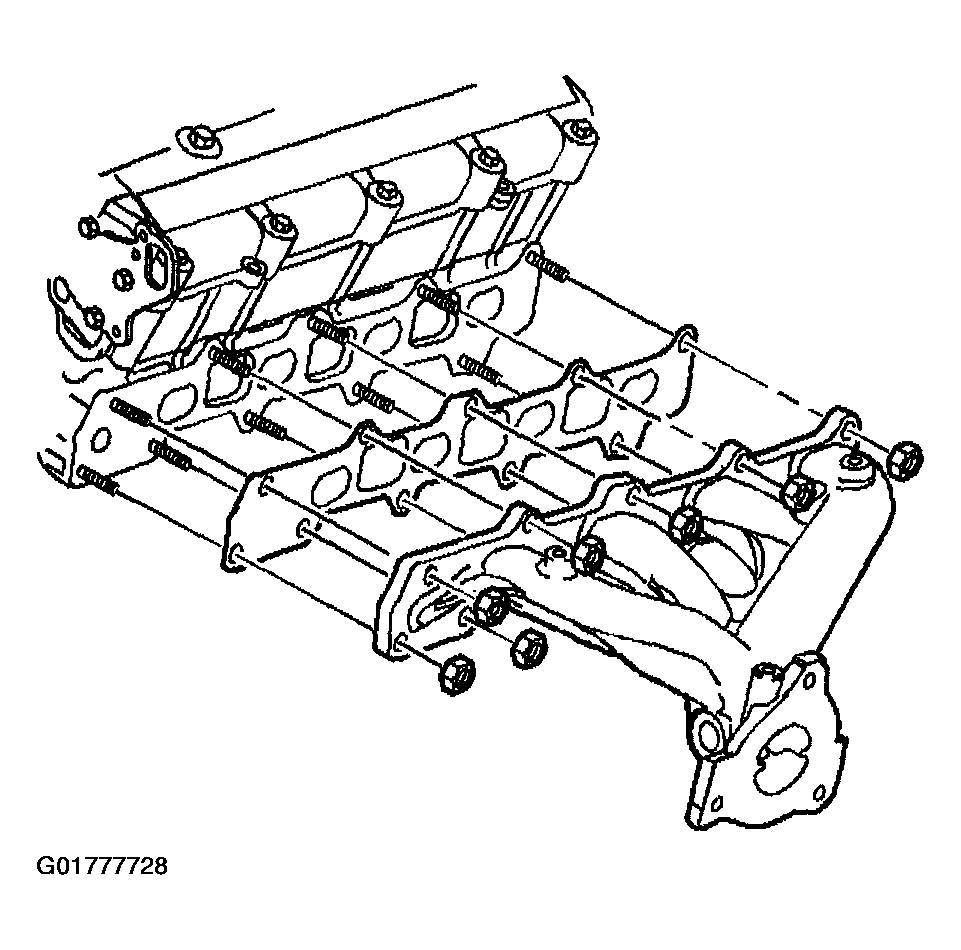

    Fig 2: Exhaust Manifold & Gasket
    G01777728Courtesy of GENERAL MOTORS CORP.
