Exhaust Manifold - Installation

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the exhaust manifold gasket.
  2. Install the exhaust manifold.

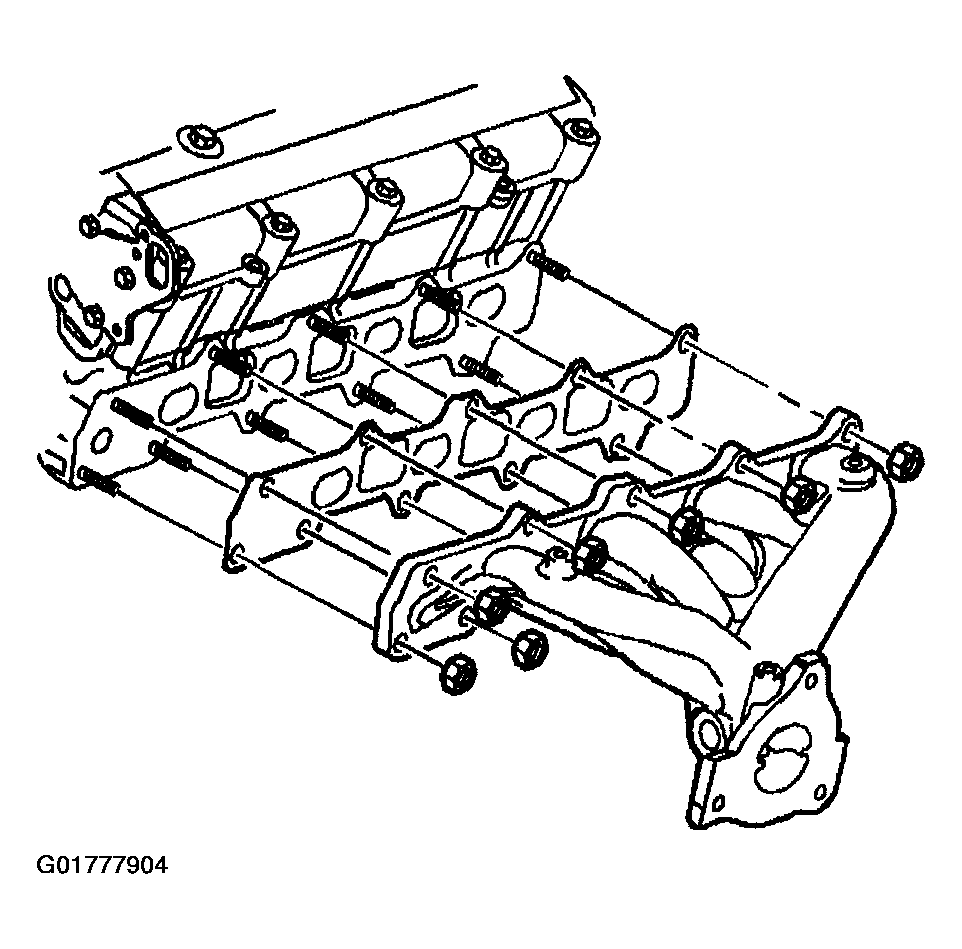

    Fig 1: Exhaust Manifold & Gasket
    G01777904Courtesy of GENERAL MOTORS CORP.
  3. Install the exhaust manifold to the cylinder head retaining nuts. Follow the tightening sequence. Tighten the nuts to 13 N.m (115 in lbs).
    Fig 2: Exhaust Manifold Fastener Tightening Sequence
    G01777905Courtesy of GENERAL MOTORS CORP.
  4. Install the exhaust manifold upper heat shield.
  5. Install the exhaust manifold upper heat shield bolts. Tighten the bolts to 14 N.m (124 in lbs).

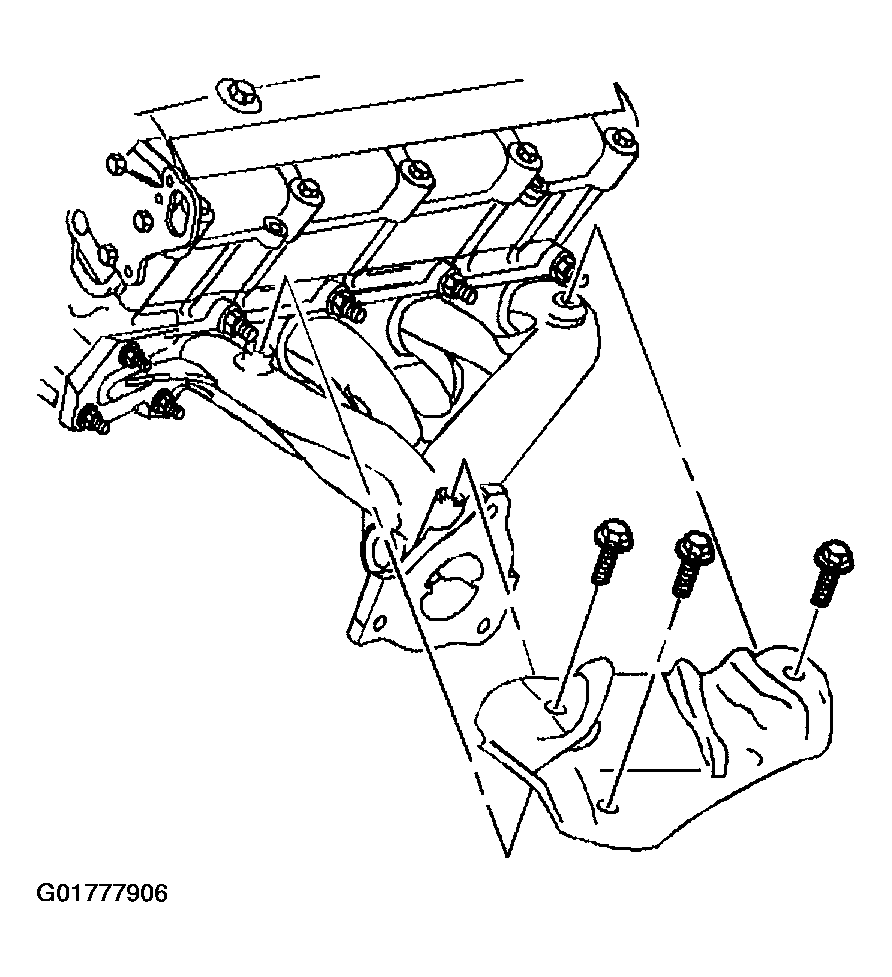

    Fig 3: Exhaust Manifold Upper Heat Shield
    G01777906Courtesy of GENERAL MOTORS CORP.
