Engine Front Cover Installation

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required: J 36660-A  Torque Angle Meter

  1. Install the front cover gasket. The gasket is reusable and does not require sealer.
  2. Inspect the front cover gasket for damage before reusing the gasket.
  3. Install the upper front cover bolts. Tighten the engine front cover bolts to 12 N.m (106 in lbs).
  4. Install the engine front cover nuts. Tighten the fasteners to 12 N.m (106 in lbs).
  5. Lubricate the front oil seal with Chassis Grease GM P/N United States 1051344, GM P/N Canada 993037 or the equivalent.

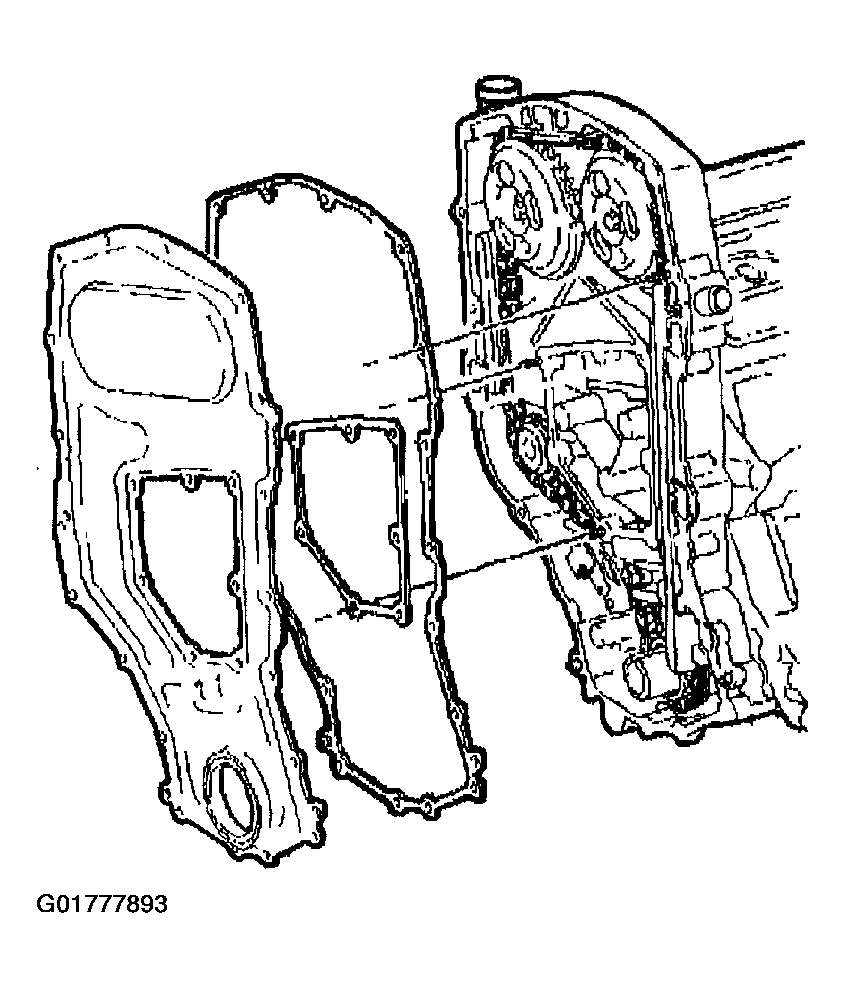

    Fig 1: Engine Front Cover
    G01777893Courtesy of GENERAL MOTORS CORP.
