Engine Front Cover - Removal

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front cover bolts and nuts.
  2. Remove the front cover.
  3. Remove the front cover gasket. The gasket is reusable.

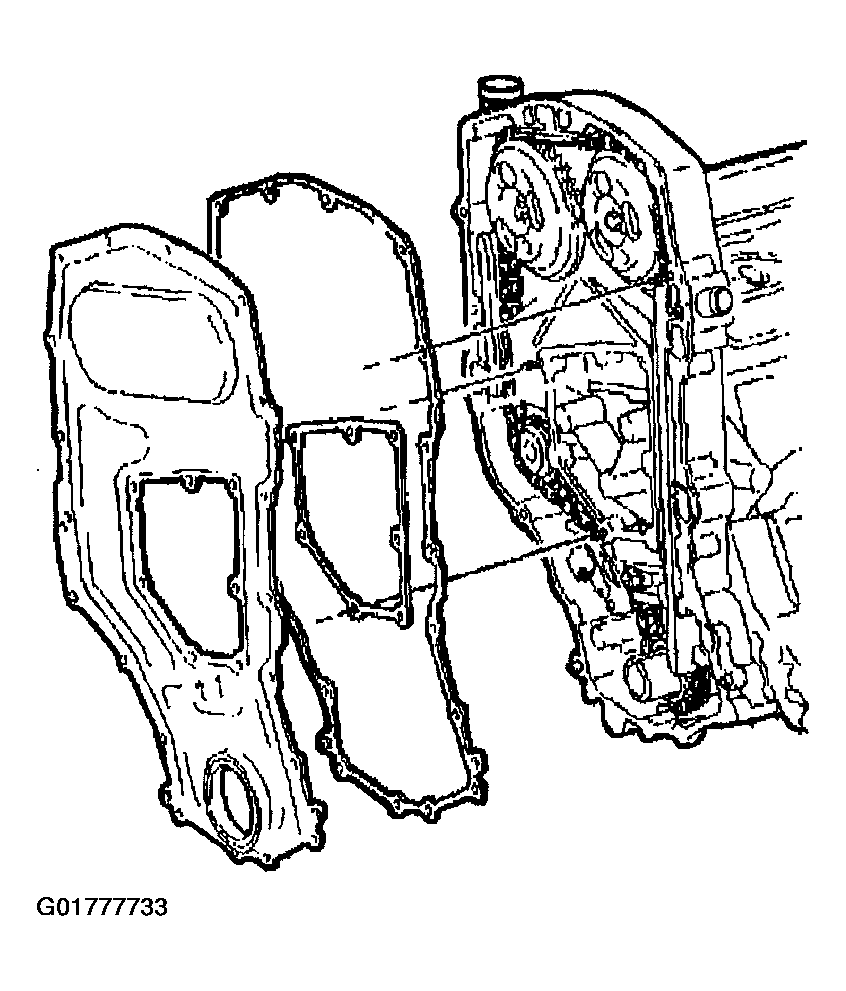

    Fig 1: Front Cover Gasket
    G01777733Courtesy of GENERAL MOTORS CORP.
  4. Remove the front cover oil seal.

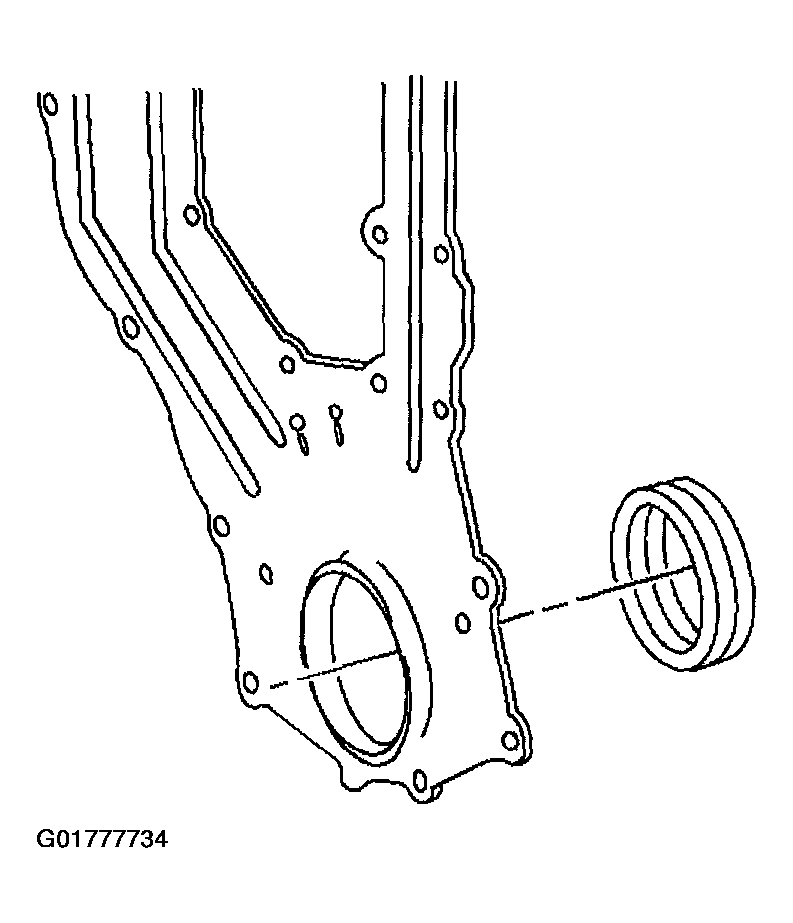

    Fig 2: Front Cover Oil Seal
    G01777734Courtesy of GENERAL MOTORS CORP.
