Engine Front Cover - Cleaning & Inspection

WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean all sealing surfaces.
  2. Inspect all sealing surfaces for burrs and imperfections.
  3. Inspect the front cover for any cracks.
  4. Inspect the front cover gasket for any damage. If the gasket is damaged, replace it with a new gasket.

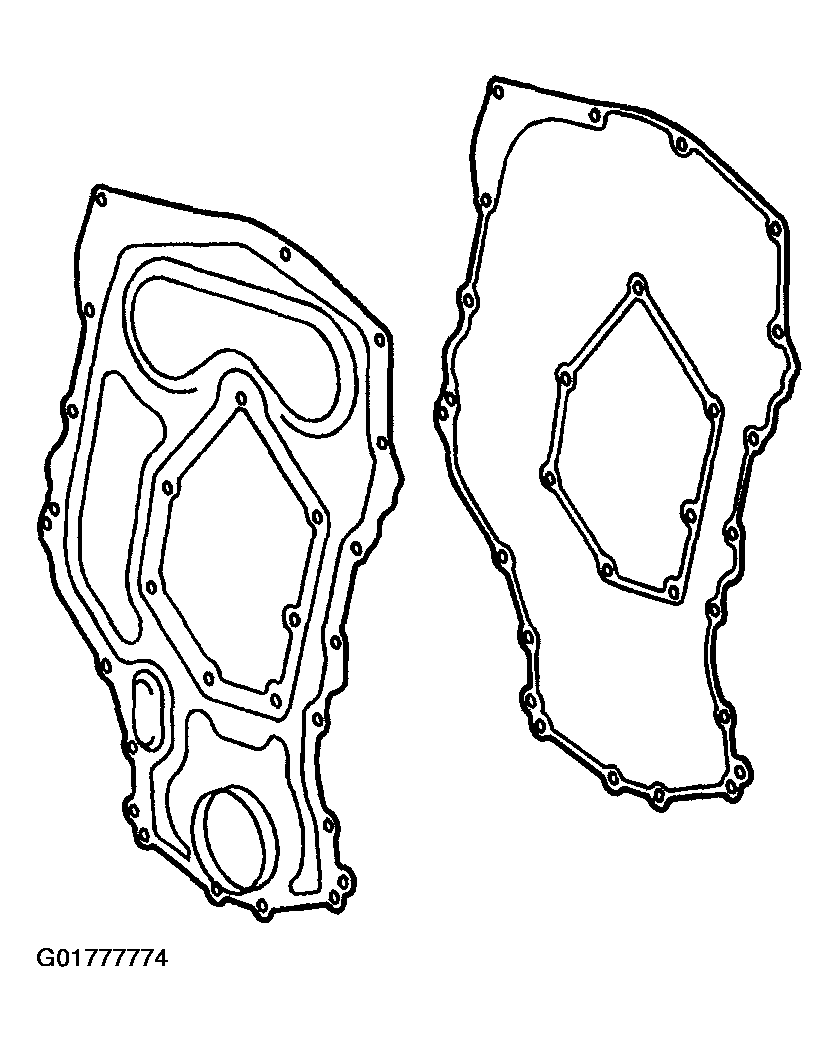

    Fig 1: Front Cover Gasket
    G01777774Courtesy of GENERAL MOTORS CORP.
